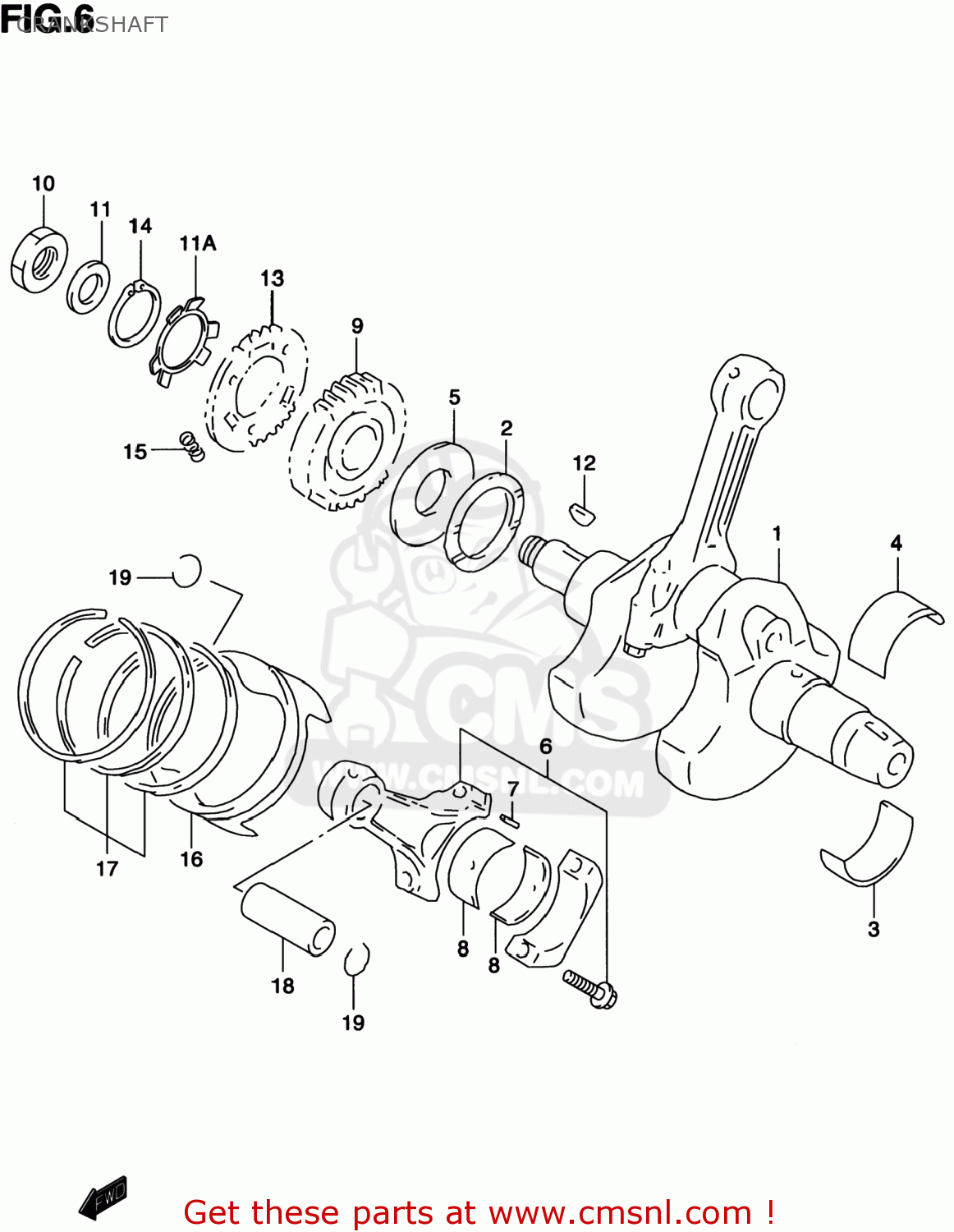

CRANKSHAFT

ref

part #

description

quantity

1-1

1200002810
ref: 1-1

CRANKSHAFT SET

€ 1,306.50

1-2

1200002830
ref: 1-2

CRANKSHAFT SET

€ 1,129.00

2-1

0916048001
ref: 2-1

WASHER(48.1X64X1.94)

€ 18.50

2-10

0916048010
ref: 2-10

WASHER(48.1X64X2.16)

€ 17.00

2-2

0916048002
ref: 2-2

WASHER(48.1X64X1.96)

€ 17.00

2-3

0916048003
ref: 2-3

WASHER(48.1X64X1.99)

€ 17.00

2-4

0916048004
ref: 2-4

WASHER(48.1X64X2.01)

€ 17.00

2-5

0916048005
ref: 2-5

WASHER(48.1X64X2.04)

€ 17.00

2-6

0916048006
ref: 2-6

WASHER(48.1X64X2.06)

€ 17.00

2-7

0916048007
ref: 2-7

WASHER(48.1X64X2.09)

€ 17.00

2-8

0916048008
ref: 2-8

WASHER(48.1X64X2.11)

€ 17.00

2-9

0916048009
ref: 2-9

WASHER(48.1X64X2.14)

€ 17.00

3-1

1222902F000A0
ref: 3-1

BEARING,CRANKSHAFT,LOWER

€ 23.00

3-2

1222902F000B0
ref: 3-2
12229-02F21-0B0

BEARING,CRANKSHAFT,LOWER

€ 25.50

3-3

1222902F000C0
ref: 3-3
12229-02F21-0C0

BEARING,CRANKSHAFT,LOWER

€ 25.50

3-4

1222902F210A0
ref: 3-4

BEARING,CRANKSHAFT

€ 23.00

3-5

1222902F210B0
ref: 3-5

BEARING,CRANKSHAFT

€ 25.50

3-6

1222902F210C0
ref: 3-6

BEARING,CRANKSHAFT

€ 25.50

4-1

1222902F100A0
ref: 4-1
12229-02F21-0A0

BEARING,CRANKSHAFT,UPPER

€ 23.00

4-2

1222902F100B0
ref: 4-2
12229-02F21-0B0

BEARING,CRANKSHAFT,UPPER

€ 25.50

4-3

1222902F100C0
ref: 4-3
12229-02F21-0C0

BEARING,CRANKSHAFT,UPPER

€ 25.50

4-4

1222902F210A0
ref: 4-4

BEARING,CRANKSHAFT

€ 23.00

4-5

1222902F210B0
ref: 4-5

BEARING,CRANKSHAFT

€ 25.50

4-6

1222902F210C0
ref: 4-6

BEARING,CRANKSHAFT

€ 25.50

5-1

1265238B00
ref: 5-1

WASHER,CRANK THRUST

€ 54.50

5-2

1265202F00
ref: 5-2

WASHER,CRANK THRUST

€ 47.00

6

1216002F00
ref: 6

CONNECTING ROD ASSY

€ 146.50

7

1216527A50
ref: 7

PIN,CONNECTING ROD

€ 1.00

8-1

1216402F000A0
ref: 8-1

BEARING,CRANK PIN

€ 11.00

8-2

1216402F000B0
ref: 8-2

BEARING,CRANK PIN

€ 12.50

8-3

1216402F000C0
ref: 8-3

BEARING,CRANK PIN

€ 16.50

8-4

1216402F000D0
ref: 8-4

BEARING,CRANK PIN

€ 11.00

8-5

1216402F110A0
ref: 8-5
12164-02F12-0A0

BEARING,CRANK PIN

€ 23.00

8-6

1216402F110B0
ref: 8-6
12164-02F12-0B0

BEARING,CRANK PIN

€ 23.50

8-7

1216402F110C0
ref: 8-7
12164-02F12-0C0

BEARING,CRANK PIN

€ 23.50

8-8

1216402F110D0
ref: 8-8
12164-02F12-0D0

BEARING,CRANK PIN

€ 23.00

9-1

2111102F00
ref: 9-1

GEAR,PRIMARY DRIVE

€ 96.00

9-2

2111102F10
ref: 9-2
21111-02F11

GEAR,PRIMARY DRIVE

€ 91.50

9-3

2111102F11
ref: 9-3

GEAR,PRIMARY DRIVE

€ 91.50

10

0914022012
ref: 10

NUT

€ 7.50

11

0916422007
ref: 11

WASHER

€ 5.00

11A

2111402F00
ref: 11A

WASHER,PRI DRIVE

€ 5.50

12-1

0834131069
ref: 12-1

KEY

€ 4.50

12-2

0942006001
ref: 12-2

KEY

€ 5.50

13

2111202F00
ref: 13

GEAR,PRIMARY DRIVE SCISSORS

€ 72.50

14-1

0833131426
ref: 14-1

CIRCLIP

€ 2.00

14-2

0833131406
ref: 14-2
08331-3140A

CIRCLIP

€ 2.50

15

0944007001
ref: 15

SPRING

€ 2.00

16

1211102F000F0
ref: 16

PISTON

€ 87.00

17-1

1214002F40
ref: 17-1
12140-02F42

RING SET,PISTON

€ 84.00

17-2

1214002F42
ref: 17-2

RING SET,PISTON

€ 84.00

18

1215102F00
ref: 18

PIN,PISTON

€ 21.50

19

0938122002
ref: 19

CIRCLIP

€ 1.50

all assemblies
