RADIATOR HOSE
TL1000S 1998 (W) USA (E03)

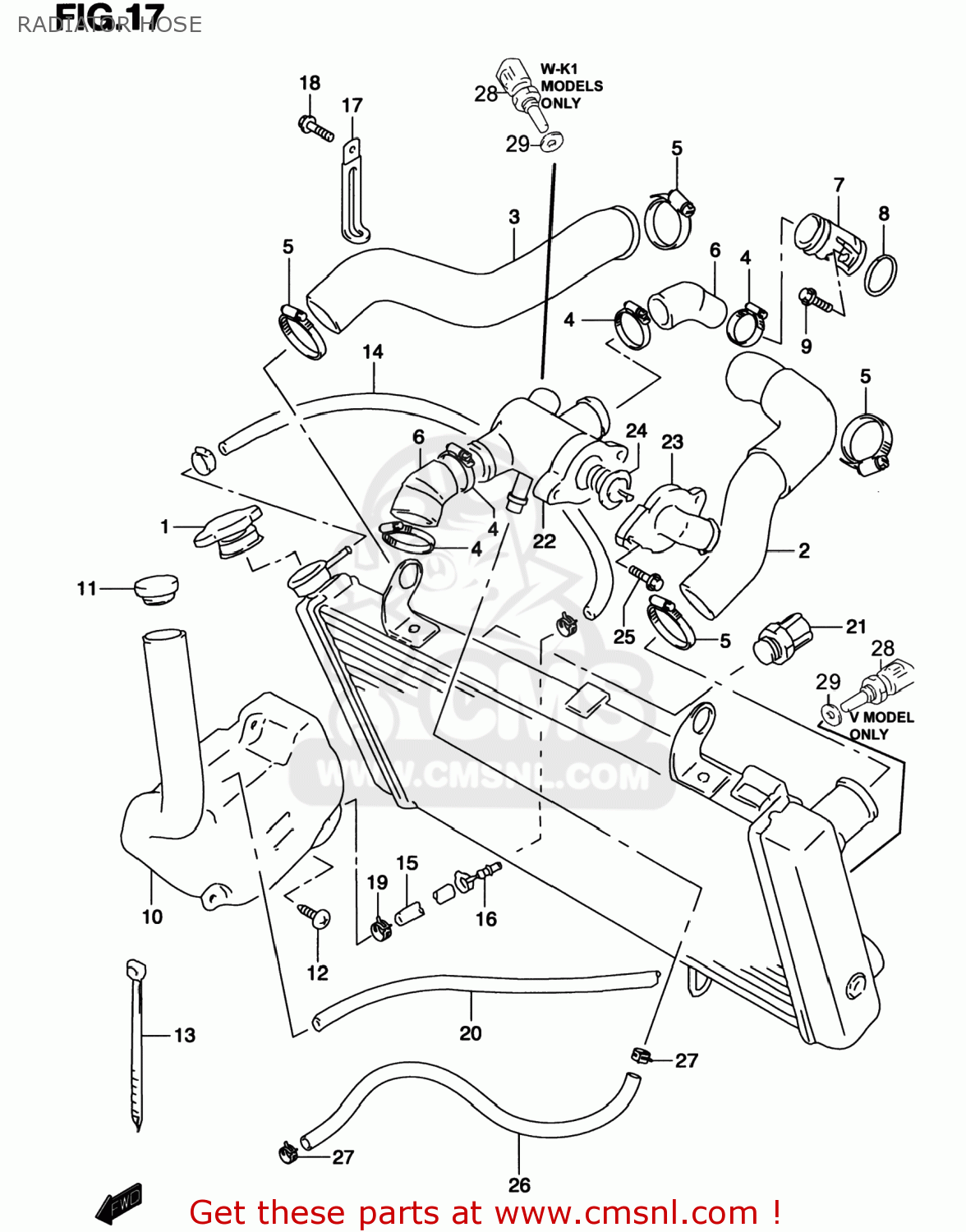

Radiator hose diagram TL1000S 1998 (W) USA (E03)
RADIATOR HOSE TL1000S 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1773012C01
ref: 1-1
17730-08J00
CAP,RADIATOR
€ 40.00
1-2
1773012C20
ref: 1-2
17730-08J00
CAP COMP,RADIATOR
€ 40.00
2
1785102F00
ref: 2
HOSE,RADIATOR INLET
€ 26.50
3-1
1785202F00
ref: 3-1
HOSE,RADIATOR OUTLET
€ 18.00
3-2
1785202F10
ref: 3-2
HOSE,RADIATOR OUTLET
€ 17.00
4
0940228511
ref: 4
CLAMP
€ 8.50
5
0940238511
ref: 5
CLAMP
€ 10.50
6
1785302F00
ref: 6
HOSE,CONNECTOR INLET
€ 11.50
7-1
1789002F00
ref: 7-1
17890-06G20
UNION,CONNECTOR HOSE
€ 9.50
7-2
1789002F00
ref: 7-2
17890-06G20
UNION,CONNECTOR HOSE
€ 9.50
7-3
1789002F10
ref: 7-3
17890-06G10
UNION,CONNECTOR HOSE F
€ 18.00
8
0928018009
ref: 8
O RING(D:3.2,ID:17.8)
€ 8.00
9-1
0155006163
ref: 9-1
01550-0616A
BOLT
€ 2.50
9-2
0713006163
ref: 9-2
07130-0616B
BOLT,OIL FILLE
€ 3.00
9-2
0713006163
ref: 9-2
07130-0616B
BOLT,OIL FILLE
€ 3.00
9-3
0713006123
ref: 9-3
07130-0612A
BOLT,STRANGER
€ 2.50
9-3
0713006123
ref: 9-3
07130-0612A
BOLT,STRANGER
€ 2.50
9-4
0713006123
ref: 9-4
07130-0612A
BOLT,STRANGER
€ 2.50
10
1791002F00
ref: 10
TANK ASSY,RESERVOIR
€ 59.50
11
1793212C00
ref: 11
CAP,RESERVOIR TANK
€ 3.50
12
0913605034
ref: 12
SCREW(5X16)
€ 2.00
13
0940717401
ref: 13
09407-17402
CLAMP
€ 5.00
14
0935250901600
ref: 14
HOSE(5X9X600)
€ 6.50
15
0935250901600
ref: 15
HOSE(5X9X600)
€ 6.50
16
0936406005
ref: 16
UNION
€ 4.00
17
0940406432
ref: 17
CLAMP(L:65)
€ 2.50
18
0354105083
ref: 18
03541-0508A
SCREW 5X8
€ 2.00
19
0940108411
ref: 19
CLIP
€ 3.00
20-1
0935250901600
ref: 20-1
HOSE(5X9X600)
€ 6.50
20-2
093525090100B
ref: 20-2
HOSE(5X9X2000)
€ 19.50
21
1768033E00
ref: 21
SWITCH,RADIATOR FAN
€ 49.50
22-1
1766202F00
ref: 22-1
CONNECTOR,THERMOSTAT,INLET
€ 36.00
22-2
1766202F10
ref: 22-2
17662-02F11
CONNECTOR,THERMOSTAT,INLET
€ 40.00
23
1766342E00
ref: 23
CAP,THERMOSTAT CONNECTOR
€ 34.00
24-1
1767032C10
ref: 24-1
THERMOSTAT,WATER
€ 41.00
24-2
1767050F00
ref: 24-2
THERMOSTAT,WATER 82 DEG
€ 24.00
24-3
1767032C20
ref: 24-3
THERMOSTAT,WATER
€ 41.00
25
0155006163
ref: 25
01550-0616A
BOLT
€ 2.50
26
1785602F10
ref: 26
17854-24F00
HOSE,CONNECTOR TO WATER
€ 15.00
27
0940112409
ref: 27
CLAMP
€ 3.00
28
1365051G10
ref: 28
SENSOR,WATER TEMP
€ 101.50
29
0916812016
ref: 29
GASKET(12.2X21X0.8) (NAS)
€ 2.50
