FRAME COVER (MODEL K1)

TL1000S 1998 (W) USA (E03)

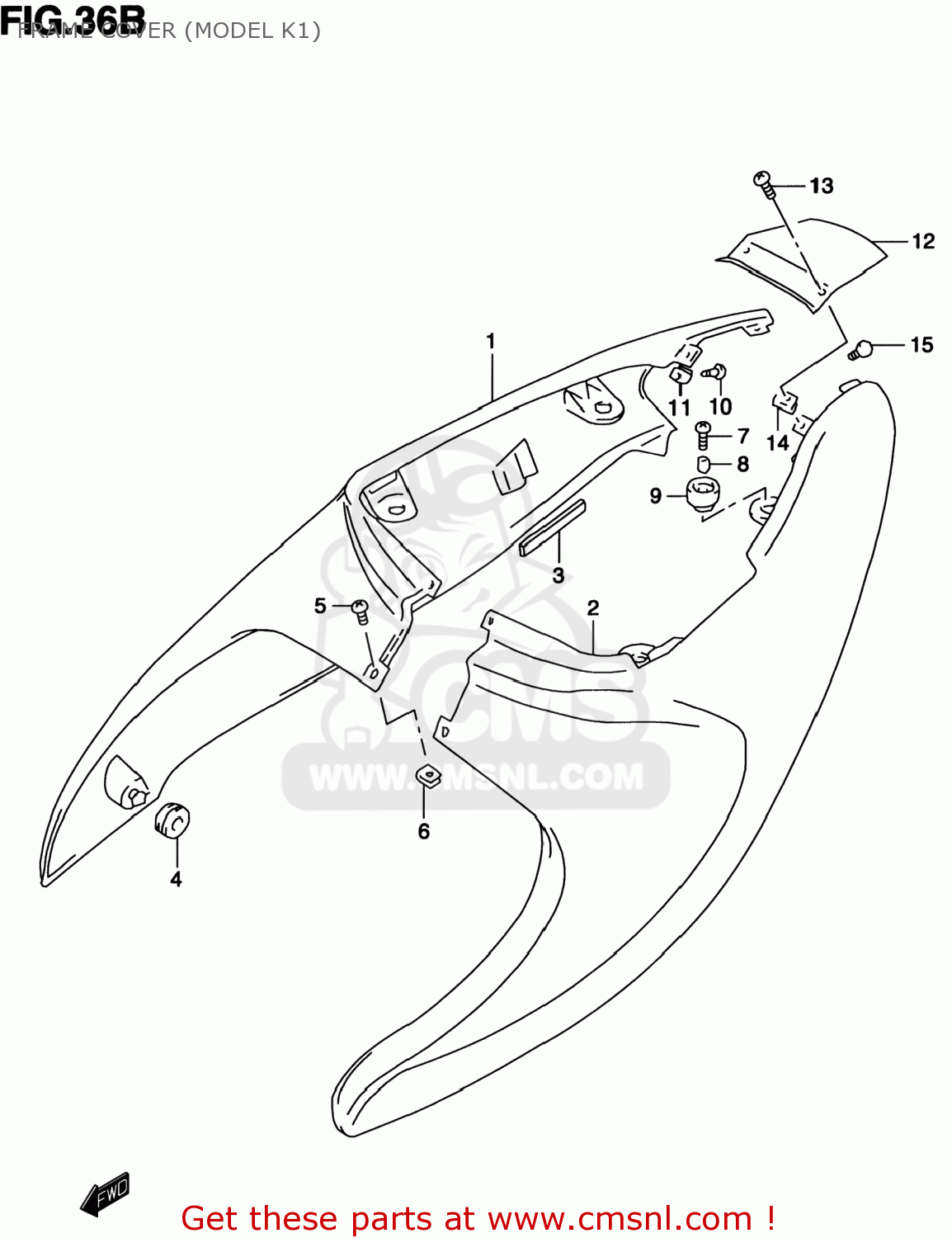

Frame cover (model k1) diagram TL1000S 1998 (W) USA (E03)

FRAME COVER (MODEL K1) TL1000S 1998 (W) USA (E03)
FRAME COVER (MODEL K1) TL1000S 1998 (W) USA (E03)
FRAME COVER (MODEL K1) TL1000S 1998 (W) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711002F10Y7L
ref: 1-1
COVER,FRAME,R(BLACK)
€ 0.00
1-2
4711002F10YC2
ref: 1-2
COVER,FRAME,R(BLUE)
€ 0.00
2-1
4721002F10Y7L
ref: 2-1
COVER,FRAME,L(BLACK)
€ 0.00
2-2
4721002F10YC2
ref: 2-2
COVER,FRAME,L(BLUE)
€ 0.00
3
4716102F00
ref: 3
CUSHION,FRAME COVER
€ 4.00
4
0932008018
ref: 4
CUSHION
0932008018
€ 4.00
5
0324115123
ref: 5
03241-1512B
SCREW
0324115123
€ 2.50
6
0914805038
ref: 6
NUT
0914805038
€ 2.50
7
0913606105
ref: 7
SCREW(6X20)
0913606105
€ 2.00
8
0918006286
ref: 8
SPACER(6.5X10X9.4)
0918006286
€ 2.50
9
0932010045
ref: 9
CUSHION
0932010045
€ 3.50
10
0913605034
ref: 10
SCREW(5X16)
0913605034
€ 2.00
11
0914805038
ref: 11
NUT
0914805038
€ 2.50
12-1
4731102F00Y7L
ref: 12-1
COVER,FRAME CTR
€ 31.00
12-2
4731102F00YC2
ref: 12-2
COVER,FRAME CTR
€ 0.00
13
0324115123
ref: 13
03241-1512B
SCREW
0324115123
€ 2.50
14
0914805038
ref: 14
NUT
0914805038
€ 2.50
15
4712902F00
ref: 15
CUSHION
4712902F00
€ 7.50
