REAR DAMPER

TL1000S 1998 (W) USA (E03)

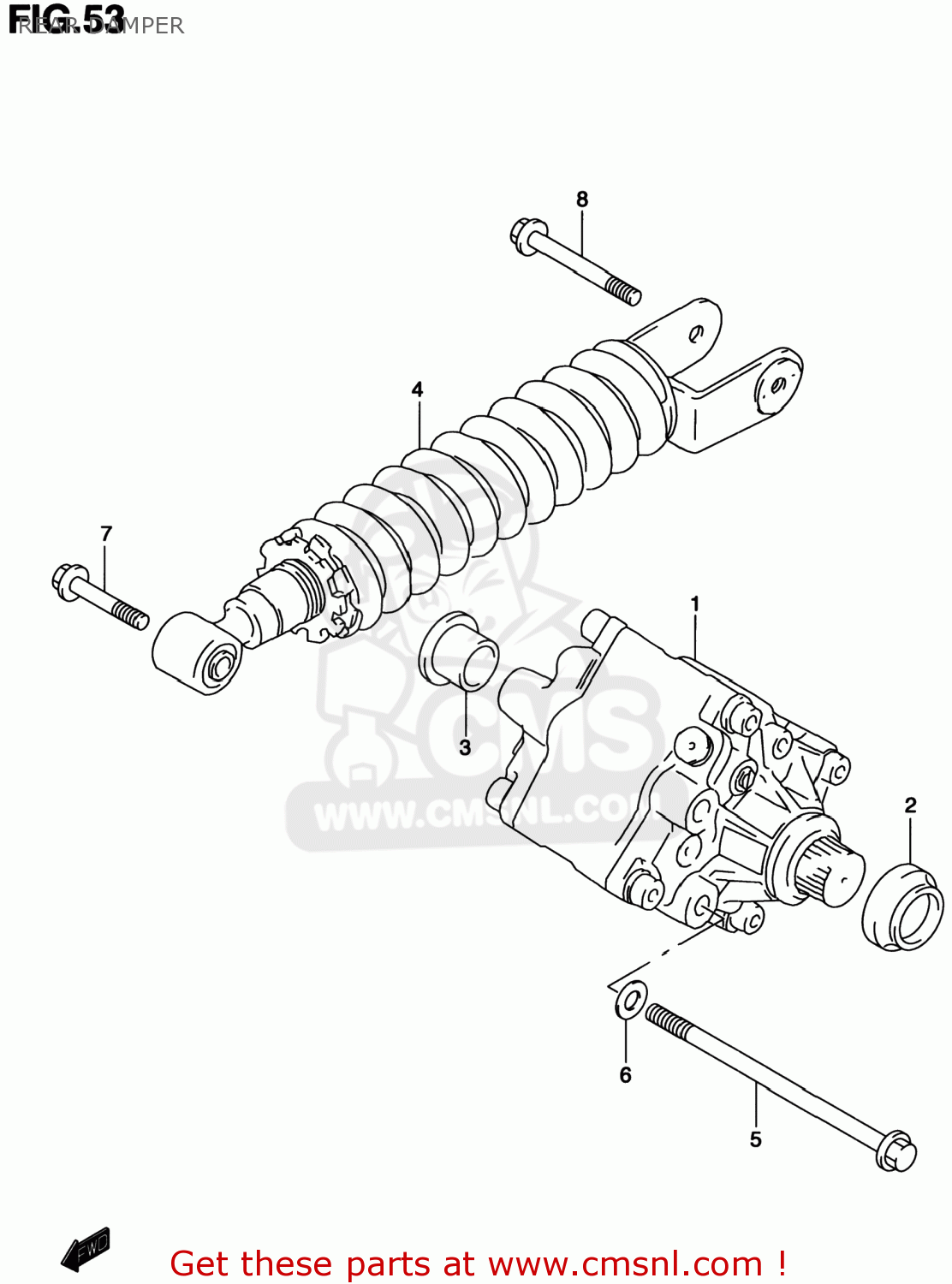

Rear damper diagram TL1000S 1998 (W) USA (E03)

REAR DAMPER TL1000S 1998 (W) USA (E03)

REAR DAMPER TL1000S 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6211002F20
ref: 1-1
62110-02F00

DAMPER ASSEMBLY,REAR

€ 1,578.50

1-2

6211002F00
ref: 1-2

DAMPER ASSY,RR

€ 1,578.50

1-3

6211002F40
ref: 1-3
62110-02F41

DAMPER ASSEMBLY,REAR

€ 1,496.00

1-4

6211002F50
ref: 1-4

DAMPER ASSEMBLY,REAR

€ 0.00

1-5

6211002F41
ref: 1-5

DAMPER ASSY,RR

€ 1,496.00

2

6213802F00
ref: 2

CAP

€ 5.00

3

6213902F00
ref: 3

CAP

€ 7.00

4-1

6220002F0037W
ref: 4-1

UNIT ASSY,RR SPRING

€ 468.50

4-2

6220002F2037W
ref: 4-2

UNIT ASSY,RR SPRING

€ 464.00

5

0910310122
ref: 5

BOLT(10X130)

€ 9.50

6

0916410008
ref: 6

WASHER

€ 1.50

7

0910310101
ref: 7

BOLT(10X54)

€ 3.00

8

0910310050
ref: 8

BOLT(10X60)

€ 5.50
