WATER PUMP
TL1000S 1998 (W) USA (E03)

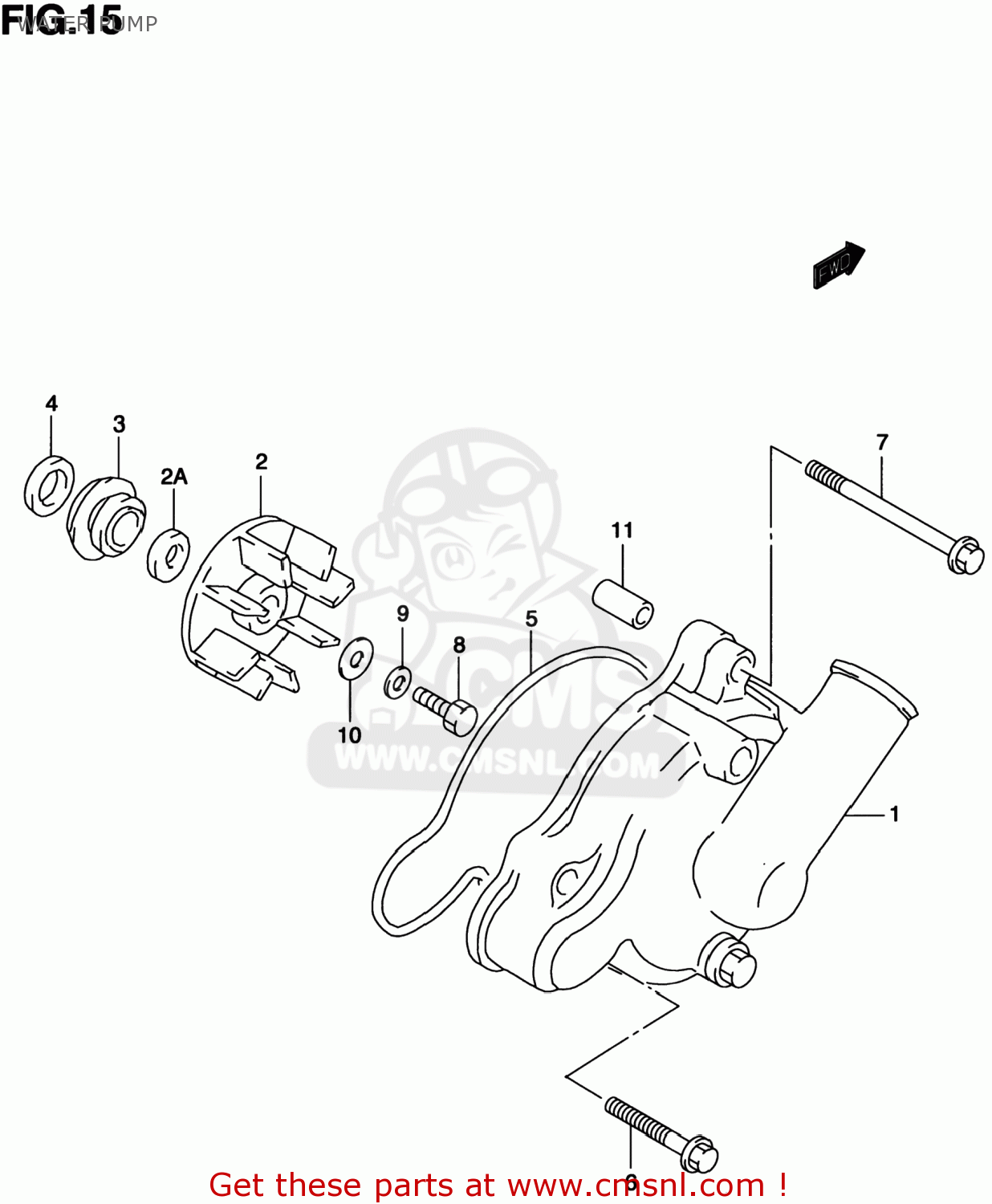

Water pump diagram TL1000S 1998 (W) USA (E03)
WATER PUMP TL1000S 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1741002F00
ref: 1-1
17410-02F01
CASE COMP,WATER PUMP
€ 83.50
1-2
1741002F10
ref: 1-2
17410-02F30
CASE,WATER PUMP
€ 89.50
2
1749102F00
ref: 2
IMPELLER,WATER PUMP
€ 22.00
2A
1753302F00
ref: 2A
WASHER,IMPELLER
€ 4.00
3-1
1747002F00
ref: 3-1
SEAL,MECHANICAL
€ 21.50
3-2
1747002F10
ref: 3-2
SEAL,MECHANICAL
€ 21.50
4
1746102F00
ref: 4
SEAL,WATER PUMP SHAFT OIL
€ 8.50
5
1743502F00
ref: 5
O RING,WATER PUMP CASE
€ 8.50
6
0154706307
ref: 6
BOLT
€ 2.50
7
0154706557
ref: 7
BOLT
€ 2.50
8-1
0910006099
ref: 8-1
BOLT(6X13)
€ 2.00
8-2
0910006162
ref: 8-2
BOLT(6X13)
€ 4.00
9
0916406006
ref: 9
WASHER
€ 2.50
10
0916806025
ref: 10
GASKET(6X15X2.2) (NAS)
€ 3.00
11
0421109149
ref: 11
PIN
€ 2.00
