HEADLAMP
TL1000S 1998 (W) USA (E03)

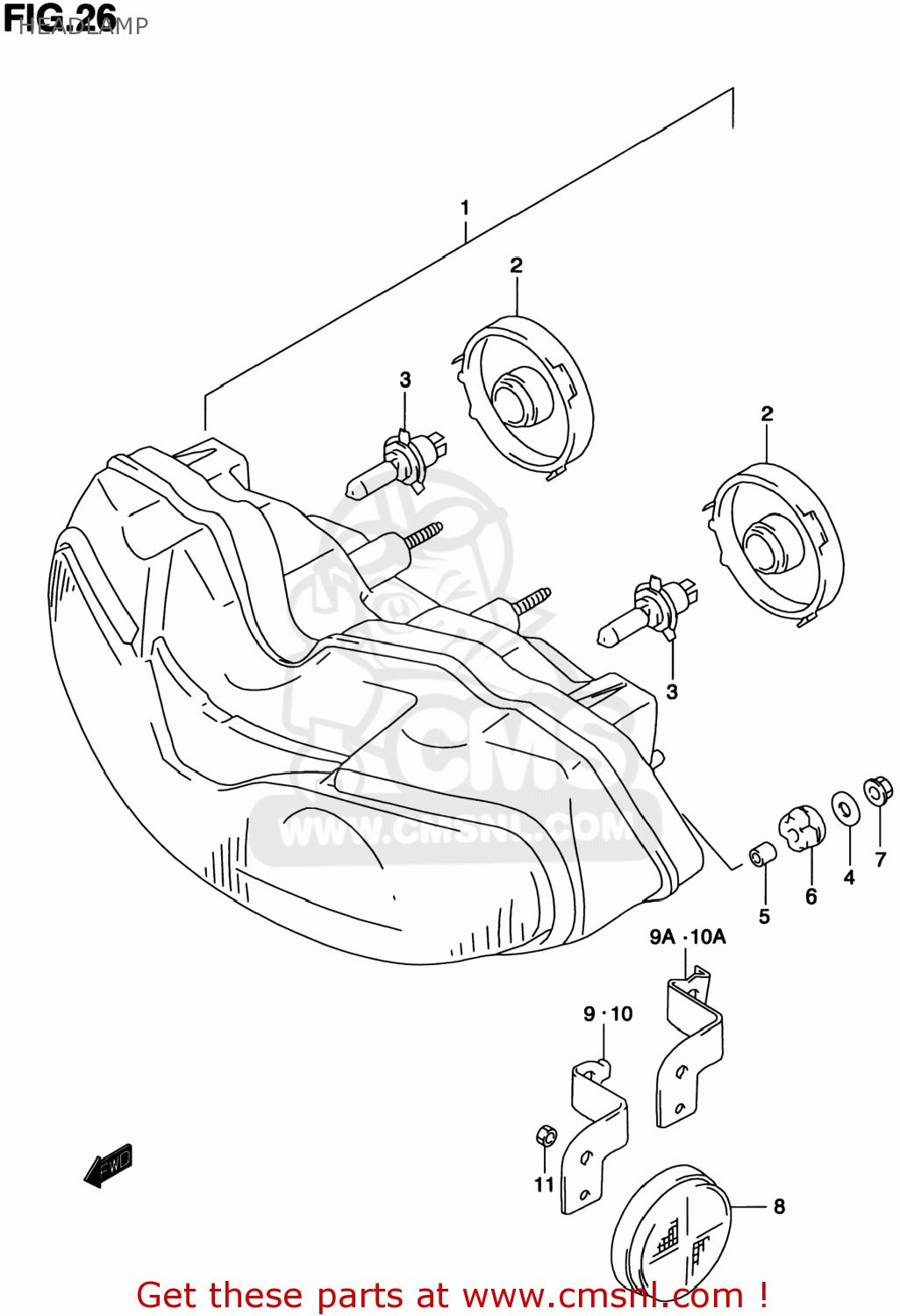

Headlamp diagram TL1000S 1998 (W) USA (E03)
HEADLAMP TL1000S 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510002F30999
ref: 1-1
35100-02F31-999
HEADLAMP ASSEMBLY
€ 354.00
1-2
3510002F31999
ref: 1-2
HEADLAMP ASSY
€ 354.00
2
3512502F00
ref: 2
COVER,SOCKET
€ 14.00
3
0947112185
ref: 3
09471-12060
BULB(12V60/55W,H4)
€ 8.00
4-1
0916006088
ref: 4-1
WASHER(6.5X20X1.6)
€ 2.00
4-2
0916006109
ref: 4-2
WASHER(6.5X18X1.6)
€ 2.00
5
0918006267
ref: 5
SPACER(6.5X9X12.5)
€ 3.00
6
0932009010
ref: 6
CUSHION
€ 2.50
7
0831610063
ref: 7
08316-1006B
NUT
€ 2.50
8
3595014A00
ref: 8
REFLECTOR,REFLEX FR
€ 15.00
9
3595617D00
ref: 9
BRACKET,FR SIDE RR,R
€ 6.50
9A
3595602F00
ref: 9A
BRACKET,FR SIDE RR,R
€ 6.50
10
3595717D00
ref: 10
BRACKET,FR SIDE RR,L
€ 6.50
10A
3595702F00
ref: 10A
BRACKET,FR SIDE RR,L
€ 6.50
11
0831000053
ref: 11
08310-0005A
NUT
€ 2.50
