CRANKCASE
TM100 1974 (L) USA (E03)

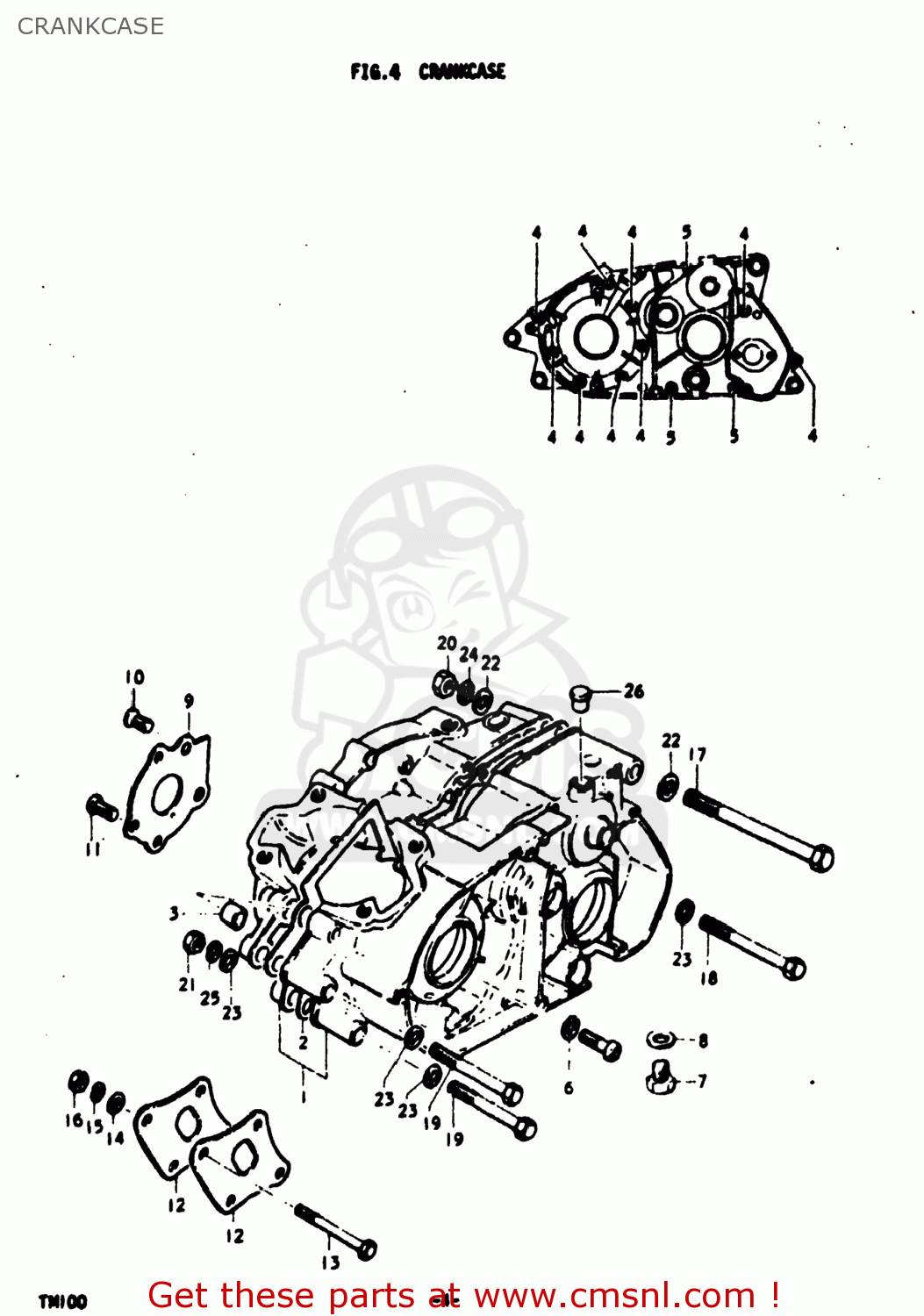

Crankcase diagram TM100 1974 (L) USA (E03)
CRANKCASE TM100 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130028840
ref: 1-1
CRANKCASE SET
€ 114.00
1-2
1130028841
ref: 1-2
CRANKCASE SET
€ 114.00
2
1148128000
ref: 2
11481-28001
GASKET,CRANKCASE (MCA)
€ 16.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206458
ref: 4
02112-06457
SCREW (6X45)
€ 2.00
5
0211206657
ref: 5
SCREW
€ 2.00
6
0832211068
ref: 6
08322-0106B
WASHER 6MM
€ 2.00
7
0924710001
ref: 7
PLUG
€ 3.00
8
0916810002
ref: 8
GASKET(10X14X3.6) (NAS)
€ 2.00
9
1256128002
ref: 9
PLATE,OIL RESERVOIR
€ 4.00
10
0212206128
ref: 10
02122-06127
SCREW
€ 3.00
11
0211106168
ref: 11
CROSS HEAD SCREW
€ 2.50
12
4159128000
ref: 12
PLATE,ENGINE MOUNTING
€ 7.50
13
0111208708
ref: 13
01500-0870B
BOLT
€ 2.50
14
0832211088
ref: 14
08322-01087
WASHER
€ 2.00
15
0832121088
ref: 15
08321-01087
LOCK WASHER
€ 2.00
16
0831211088
ref: 16
08310-00087
NUT
€ 2.00
17-1
0910010051
ref: 17-1
09100-10274
BOLT
€ 6.50
17-2
0910010060
ref: 17-2
09116-10032
BOLT 10X120
€ 3.50
18
0112208808
ref: 18
01500-0880B
HEXAGON BOLT 8X80
€ 3.50
19
0112208708
ref: 19
01500-0870B
BOLT
€ 2.50
20
0831211108
ref: 20
08310-00107
NUT
€ 2.50
21
0831211088
ref: 21
08310-00087
NUT
€ 2.00
22
0832211108
ref: 22
08322-01107
WASHER
€ 2.50
23
0832211088
ref: 23
08322-01087
WASHER
€ 2.00
24
0832121108
ref: 24
08321-01107
LOCK WASHER
€ 2.00
25
0832121088
ref: 25
08321-01087
LOCK WASHER
€ 2.00
26
0925010001
ref: 26
CAP(OD:14)
€ 1.50
26
0925010001
ref: 26
CAP(OD:14)
€ 1.50
