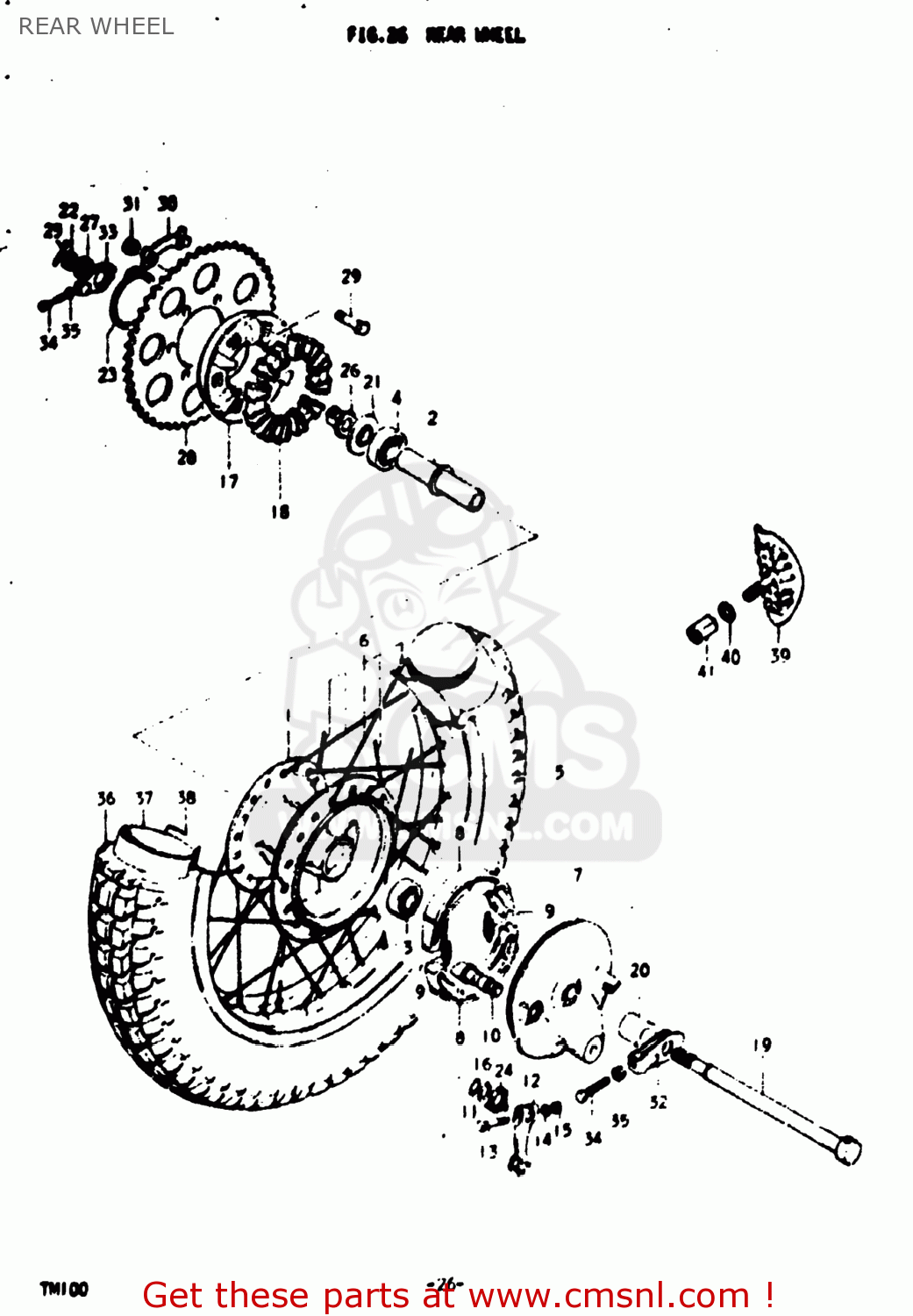

REAR WHEEL

ref

part #

description

quantity

0-1

6410016850
ref: 0-1

HUB SET,REAR

€ 0.00

0-2

6410028842
ref: 0-2

WHEEL SET,REAR

€ 0.00

1-1

6411028300
ref: 1-1

HUB,REAR

€ 99.00

1-2

6411028301
ref: 1-2

HUB,REAR

€ 99.00

2-1

6473038000
ref: 2-1

SPACER,REAR HUB BEARING

€ 9.00

2-2

6473028000
ref: 2-2

SPACER,REAR HUB BEARING

€ 9.00

3

0814362020
ref: 3
08143-62027

BEARING

€ 12.50

4

0812363020
ref: 4
08123-63027

BEARING

€ 19.00

5-1

6531116501
ref: 5-1

RIM,REAR WHEEL

€ 86.00

5-1

6531116501
ref: 5-1

RIM,REAR WHEEL

€ 86.00

5-2

6531128322
ref: 5-2

RIM,REAR WHEEL

€ 86.00

6-1

6530028850
ref: 6-1
65300-28870

SPOKE SET,REAR

€ 22.50

6-2

6530028860
ref: 6-2

SPOKE SET,REAR

€ 39.50

7-1

6421028302
ref: 7-1

PANEL,REAR HUB

€ 106.50

7-2

6421028303
ref: 7-2
64210-28004

PANEL,REAR HUB

€ 106.50

8

5441007002
ref: 8
54401-07810

SHOE,BRAKE

€ 35.00

9

0944307001
ref: 9
09443-07025

SPRING(L:34)

€ 2.50

10-1

5444107001
ref: 10-1

CAM,FRONT BRAKE

€ 19.50

10-2

5444101002
ref: 10-2

CAM,FR BRAKE

€ 19.50

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

6445128000
ref: 12

LEVER,REAR BRAKE CAM

€ 14.50

13

0910006050
ref: 13
09100-06150

BOLT

€ 1.50

14

0832221068
ref: 14
08322-01067

WASHER

€ 2.00

15

0831111068
ref: 15
08310-00067

NUT

€ 2.50

16

0916012011
ref: 16

WASHER(12.5X20X1)

€ 1.50

17

6461028300
ref: 17

DRUM,REAR SPROCKET MOUNT

€ 41.50

18-1

6465028001
ref: 18-1
64650-28002

CUSHION,REAR DRUM

€ 15.00

18-2

6465028002
ref: 18-2

ABSORBER,RR WHEEL HUB SHOCK

€ 15.00

19

6471128001
ref: 19
64711-4130V

AXLE,REAR

€ 78.50

20

0918015010
ref: 20
09180-15038

SPACER

€ 7.00

21

6475028000
ref: 21

SPACER,RR AXLE,L

€ 11.50

22

0831431128
ref: 22
08314-3112A

NUT 12MM

€ 2.00

23

0833111558
ref: 23
08331-31558

CIRCLIP

€ 4.00

24

0944827003
ref: 24

SPRING

€ 7.00

25

0411130308
ref: 25
04111-3030A

COTTER PIN

€ 1.50

26

6479128001
ref: 26

SPACER,CHAIN ADJUSTER,L

€ 12.00

27

0914018001
ref: 27
09140-18501

NUT

€ 3.00

28-1

6451128741
ref: 28-1

SPROCKET,REAR

€ 50.00

28-2

6451128721
ref: 28-2

SPROCKET,REAR

€ 32.00

28-3

6451128731
ref: 28-3
64511-28301

SPROCKET,REAR

€ 69.00

28-4

6451128751
ref: 28-4

SPROCKET,REAR

€ 53.50

29

0910508006
ref: 29

BOLT(8X32)

€ 2.00

30

0916908013
ref: 30

WASHER

€ 2.50

31

0831231088
ref: 31
08310-00087

NUT

€ 2.00

32

6141028002A
ref: 32
61410-28004

ADJUSTER,CHAIN

€ 8.00

33

6142028002
ref: 33
61420-28003

ADJUSTER,CHAIN

€ 11.00

34

0910008099
ref: 34
09100-08146

BOLT

€ 2.50

35

0831211088
ref: 35
08310-00087

NUT

€ 2.00

36

6510028310
ref: 36

TIRE

€ 0.00

37

6520018010
ref: 37
65200-44AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

38

6526116510
ref: 38
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

39

6527030000
ref: 39
65270-43D00

STOPPER,BEAD

€ 30.50

40

0832221088
ref: 40
08322-01087

WASHER

€ 2.00

41

0915908016
ref: 41

NUT

€ 2.00

all assemblies
