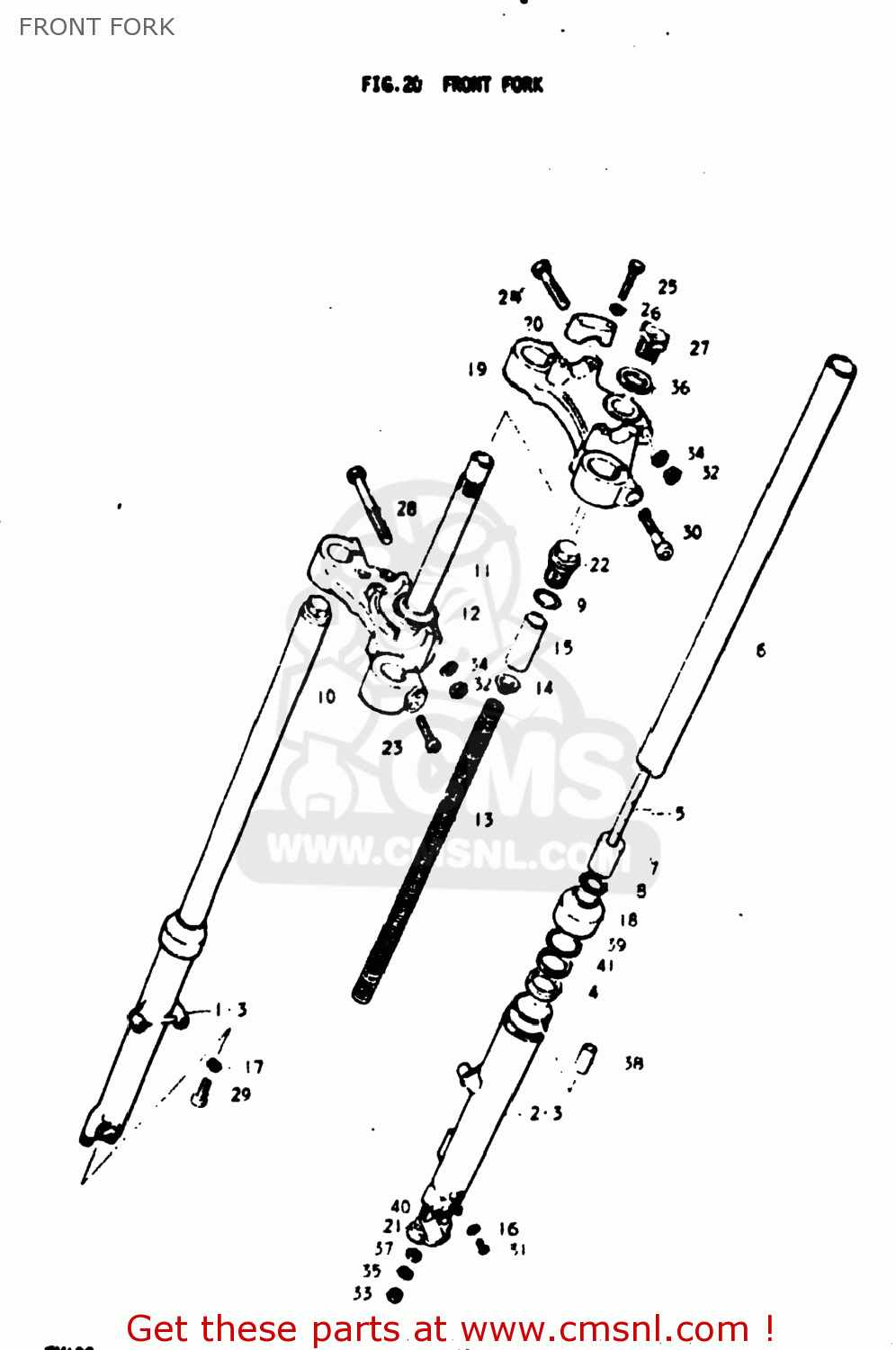

FRONT FORK

ref

part #

description

quantity

5110028311
ref:

DAMPER SET

€ 0.00

5110028312
ref:

DAMPER SET

€ 0.00

1

5113036010
ref: 1

TUBE,OUTER,RIGHT

€ 87.00

1

5113036010
ref: 1

TUBE,OUTER,RIGHT

€ 87.00

2

5114036010
ref: 2

TUBE,OUTER,LEFT

€ 87.00

2

5114036010
ref: 2

TUBE,OUTER,LEFT

€ 87.00

3

5114036011
ref: 3

TUBE,OUTER,LEFT

€ 87.00

4

5115308011
ref: 4

SEAL,OIL

€ 10.50

5-1

5114628311
ref: 5-1

CYLINDER,FRONT FORK

€ 30.00

5-2

5114628312
ref: 5-2

CYLINDER,FRONT FORK

€ 30.00

6

5111128311
ref: 6

TUBE,FORK,INNER

€ 57.50

7-1

5111228310
ref: 7-1

PISTON

€ 0.00

7-2

5111228311
ref: 7-2

PISTON

€ 0.00

8-1

5111828310
ref: 8-1

SNAP RING

€ 2.50

8-2

5111828311
ref: 8-2

SNAP RING

€ 2.50

9

5118125010
ref: 9
51181-29400

O-RING,FORK INNER TUBE

€ 2.50

10

5141128310
ref: 10

STEM,STEERING

€ 0.00

11

5140128310
ref: 11

STEM,STEERING

€ 37.00

12

5162133001
ref: 12

RACE,STEERING OUTER LWR

€ 10.00

13-1

5117128311
ref: 13-1

SPRING

€ 0.00

13-2

5117128312
ref: 13-2

SPRING

€ 12.50

14

5117225210
ref: 14

GUIDE,SPRING

€ 0.00

15

5117625510
ref: 15

SPACER,SPRING

€ 4.00

16

5118303010
ref: 16

GASKET,DRAIN,PLUG (NAS)

€ 3.00

17

5114834010
ref: 17
51148-36011

GASKET

€ 4.00

18

5117325010
ref: 18

SEAL,DUST

€ 10.00

19

5131128310
ref: 19

HEAD,STEERING STEM

€ 37.50

20

5621127110
ref: 20

HOLDER,HANDLEBAR

€ 12.50

21-1

5113216510
ref: 21-1

HOLDER,AXLE

€ 11.50

21-2

5113216511
ref: 21-2

HOLDER,AXLE

€ 11.50

22

5135125011
ref: 22

BOLT,FR FORK

€ 16.50

23

5145628310
ref: 23

BOLT

€ 0.00

24

0112210508
ref: 24
01500-1050A

BOLT 10X50

€ 7.00

25

0122108357
ref: 25
01204-08357

Bolt

€ 3.50

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

5135128310
ref: 27

CAP

€ 6.50

28

0112210608
ref: 28
01500-1060A

BOLT

€ 3.50

29-1

5114736010
ref: 29-1

BOLT

€ 2.50

29-2

5114731010
ref: 29-2
51147-36010

BOLT

€ 2.50

30

0910610001
ref: 30

BOLT

€ 0.00

31

0211104087
ref: 31
02112-04087

SCREW

€ 1.50

32

0831211108
ref: 32
08310-00107

NUT

€ 2.50

33

0914008005
ref: 33
09140-08017

NUT (8MM)

€ 1.50

34

0832121108
ref: 34
08321-01107

LOCK WASHER

€ 2.00

35

0832121088
ref: 35
08321-01087

LOCK WASHER

€ 2.00

36

5135628310
ref: 36

WASHER,STEM HEAD

€ 2.50

37

0832221088
ref: 37
08322-01087

WASHER

€ 2.00

38-1

5119528310
ref: 38-1

PIECE,OIL LOCK

€ 0.00

38-2

5119528311
ref: 38-2

PIECE,OIL LOCK

€ 6.50

39

5115636010
ref: 39

RING,SNAP

€ 5.50

40

5113731010
ref: 40
09108-08142

BOLT,STUD

€ 2.00

41

5115836010
ref: 41

WASHER,FRONT FORK

€ 4.00

all assemblies
