REAR SWINGING ARM
TM100 1974 (L) USA (E03)

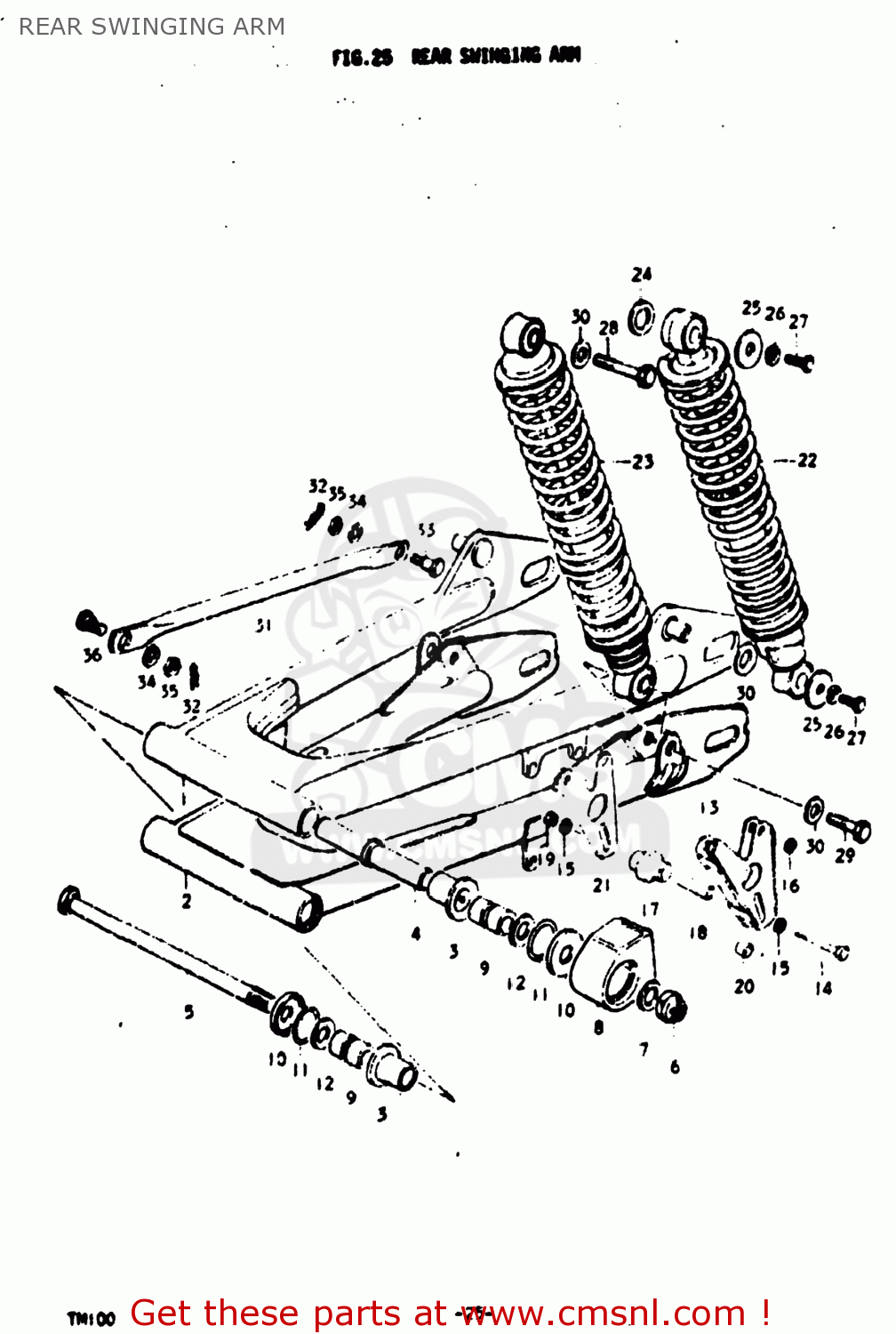

Rear swinging arm diagram TM100 1974 (L) USA (E03)
REAR SWINGING ARM TM100 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110028830019
ref: 1
SWING ARM ASSEMBLY,REAR
€ 50.50
2
6110028870019
ref: 2
SWING ARM ASSEMBLY,REAR
€ 50.50
3
0930718001
ref: 3
09307-18002
BUSHING
€ 10.50
4
6128028000
ref: 4
SPACER,SWING ARM,CENTER
€ 12.00
5-1
6121128600
ref: 5-1
SHAFT,REAR SWING ARM
€ 32.00
5-2
6121128001
ref: 5-2
61211-28002
SHAFT,REAR SWING ARM
€ 32.00
6-1
0915912101
ref: 6-1
NUT
€ 5.00
6-2
0915912102
ref: 6-2
NUT
€ 5.00
7
0832211128
ref: 7
08322-01127
WASHER
€ 2.00
8-1
6127328000
ref: 8-1
61273-28001
BUFFER,CHAIN TOUCH DEFLECTOR
€ 11.00
8-2
6127328001
ref: 8-2
BUFFER,CHAIN TOUCH DEFENSE
€ 11.00
9
6125128000
ref: 9
SPACER,RR SWGARM PIVOT
€ 8.50
10
6126209200
ref: 10
COVER,SWGARM BUSH DUST SEAL
€ 2.50
11
0928024001
ref: 11
O RING(D:2,ID:24.5)
€ 2.00
12
0916012005
ref: 12
WASHER(12.5X24X2.3)
€ 3.00
13
6134032102
ref: 13
NO PRODUCT DESCRIPTION AVAILABLE
€ 17.00
14
0111206558
ref: 14
01500-0655B
BOLT
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
6134532100
ref: 17
ROLLER,CHAIN GUIDE
€ 3.00
18
0918006056
ref: 18
SPACER
€ 1.50
19-1
0915906010
ref: 19-1
NUT
€ 1.50
19-2
0915906018
ref: 19-2
NUT (6MM)
€ 1.50
20
0918006010
ref: 20
SPACER(6.5X12X6.9)
€ 2.50
21
6135032101
ref: 21
TENSIONER,CHAIN
€ 5.00
22
6210028702
ref: 22
ABSORBER ASSEMBLY,REAR SHOCK
€ 74.50
23
6210028610
ref: 23
ABSORBER ASSEMBLY,REAR SHOCK
€ 54.50
24
0916012006
ref: 24
09160-12089
WASHER
€ 2.00
25
0916006004
ref: 25
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
26
0832121068
ref: 26
08321-01067
LOCK WASHER
€ 2.50
27
0111206128
ref: 27
01500-06127
BOLT
€ 2.00
28
0910012102
ref: 28
BOLT 12X50
€ 0.00
29
0910012111
ref: 29
BOLT(12X33)
€ 3.00
30-1
0832211128
ref: 30-1
08322-01127
WASHER
€ 2.00
30-2
0832211128
ref: 30-2
08322-01127
WASHER
€ 2.00
31
6431128000
ref: 31
64311-28000-019
TORQUE LINK,REAR
€ 10.00
32
0938510001
ref: 32
09385-10005
CLIP
€ 1.50
33
0911108013
ref: 33
BOLT(8X26.5)
€ 3.00
34
0832121088
ref: 34
08321-01087
LOCK WASHER
€ 2.00
35
0914008008
ref: 35
NUT
€ 1.50
36
0911108015
ref: 36
BOLT(8X22)
€ 3.00
