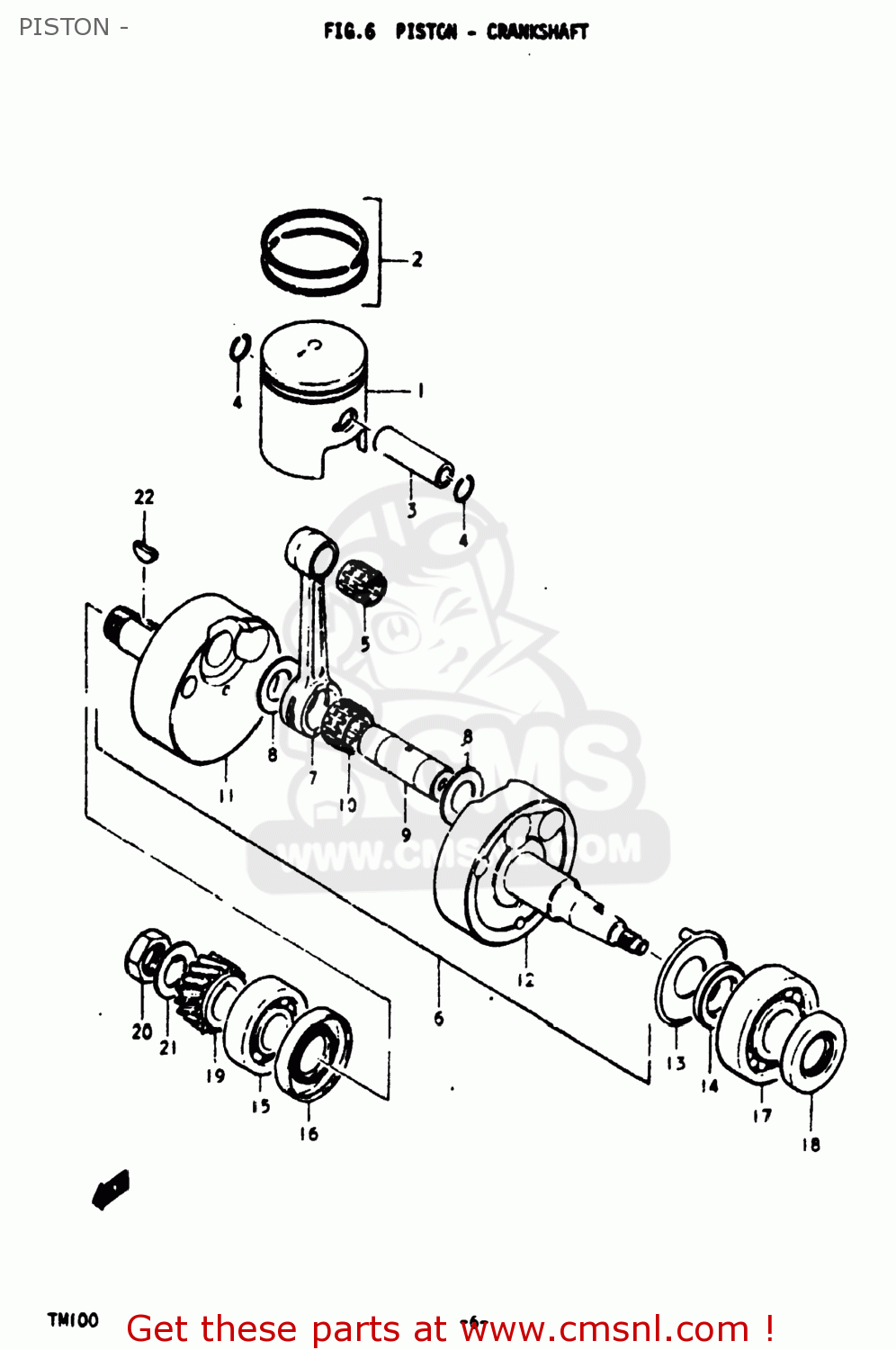

PISTON - - TM100 1974 (L) USA (E03)

ref

part #

description

quantity

1-1

1211028610
ref: 1-1

PISTON

€ 21.50

1-2

1211028611
ref: 1-2

PISTON

€ 21.50

1-3

1211028620
ref: 1-3
12110-28614-050

PISTON

€ 123.00

2-1

1214028630
ref: 2-1

RING SET,PISTON

€ 52.00

2-2

1214028640
ref: 2-2
12140-28630-050

RING SET,PISTON

€ 50.50

3

1215107000
ref: 3
12151-23400

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314004
ref: 5
09263-14022

BEARING

€ 10.00

6-1

1220028830
ref: 6-1

CRANKSHAFT ASSEMBLY

€ 195.50

6-2

1220028300
ref: 6-2

CRANKSHAFT ASSEMBLY

€ 195.50

7

1216112000
ref: 7
12161-39300

CONNECTING ROD

€ 54.50

8-1

0916019001
ref: 8-1

WASHER(19X32X1)

€ 3.50

8-2

0916019002
ref: 8-2
09160-19001

WASHER

€ 3.50

9

1221128000
ref: 9

PIN,CRANK

€ 33.50

10-1

0926319003
ref: 10-1
09263-19009

BEARING

€ 15.00

10-2

0926319007
ref: 10-2
09263-19009

BEARING

€ 15.00

11

1222128001
ref: 11

CRANKSHAFT

€ 64.50

12

1226128002
ref: 12
12261-41001

CRANKSHAFT,LEFT

€ 76.00

13

1251128002
ref: 13

PLATE,CRANKSHAFT OIL GUIDE

€ 7.50

14

0918025041
ref: 14

SPACER

€ 4.50

15

0926220009
ref: 15
09262-20073

BEARING

€ 19.00

16

0928326007
ref: 16

SEAL,OIL(26X52X8)

€ 7.50

17

0926925013
ref: 17

BEARING(25X62X17)

€ 41.50

18

0928325037
ref: 18
09283-25066

OIL SEAL

€ 7.00

19

2111128700
ref: 19

GEAR,PRIMARY DRIVE

€ 16.50

20

0914018002
ref: 20

NUT

€ 3.50

21

0916618001
ref: 21

WASHER

€ 3.00

22

0834131059
ref: 22

KEY

€ 3.00
