PROP STAND - BRAKE PEDAL
TM100 1974 (L) USA (E03)

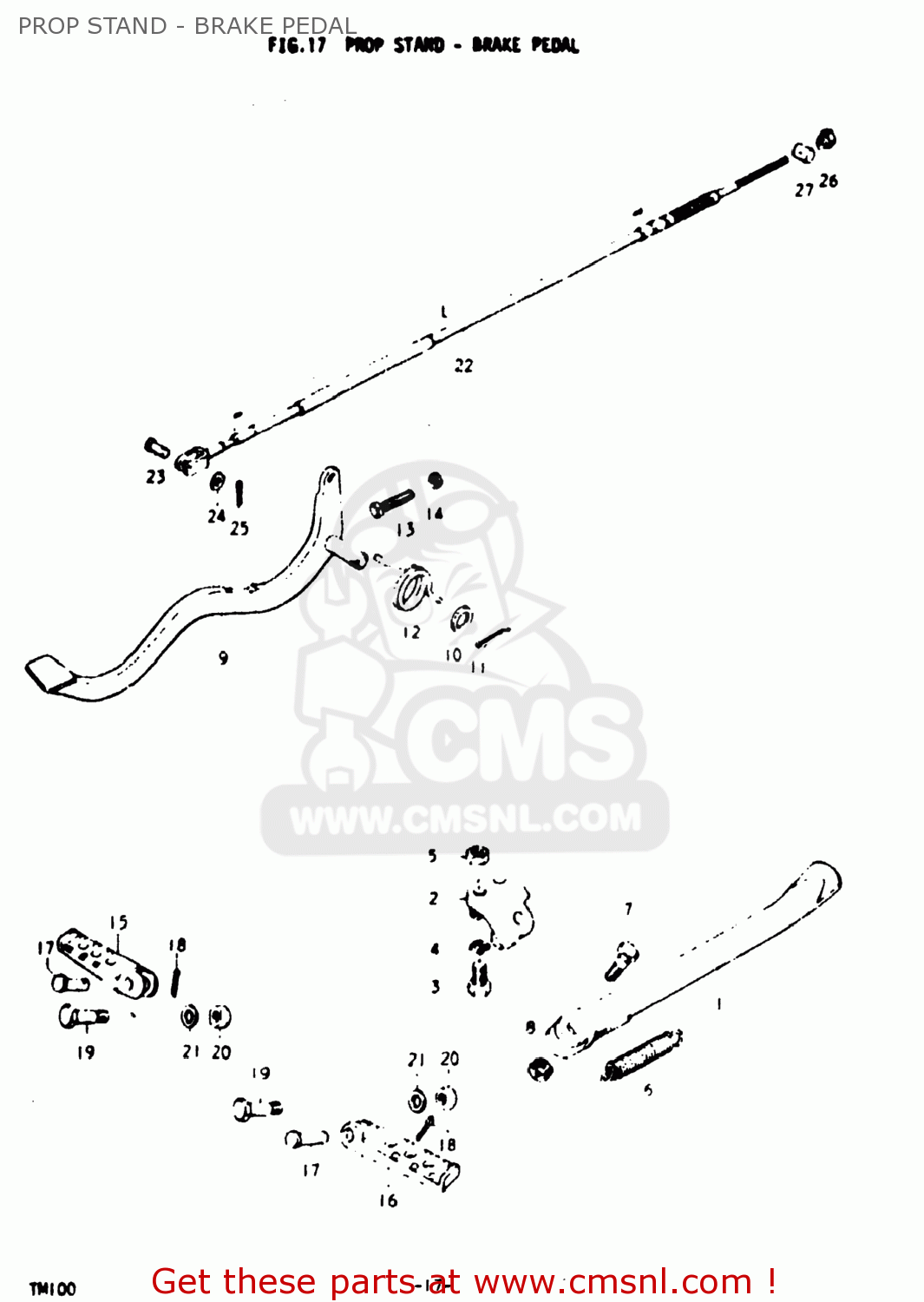

Prop stand - brake pedal diagram TM100 1974 (L) USA (E03)
PROP STAND - BRAKE PEDAL TM100 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231025000
ref: 1-1
STAND,SIDE
€ 17.00
1-2
4231016500
ref: 1-2
42310-41100
STAND,SIDE
€ 33.50
2
4233032100
ref: 2
BRACKET,SIDE STAND
€ 9.00
3
0112210258
ref: 3
01500-10257
BOLT 10X25
€ 3.00
4
0832121108
ref: 4
08321-01107
LOCK WASHER
€ 2.00
5
0831231108
ref: 5
08310-00107
NUT
€ 2.50
6
0944314005
ref: 6
09443-14017
SPRING
€ 6.50
7
0910010067
ref: 7
BOLT(10X30)
€ 3.50
8
0831231108
ref: 8
08310-00107
NUT
€ 2.50
9
4311028300
ref: 9
43110-28301
PEDAL,BRAKE
€ 27.50
10
0832211128
ref: 10
08322-01127
WASHER
€ 2.00
11
0411130208
ref: 11
04111-3020A
PIN 30X20
€ 1.50
12
0944832004
ref: 12
09448-32004-XC0
SPRING
€ 4.50
13
0910006003
ref: 13
BOLT
€ 1.50
14
0831111068
ref: 14
08310-00067
NUT
€ 2.50
15
4351130100
ref: 15
BAR,FRONT FOOTREST
€ 15.00
16
4352130100
ref: 16
BAR,FOOTREST,LEFT
€ 14.50
17
0432208308
ref: 17
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
18
0411120158
ref: 18
04111-2015A
PIN
€ 1.50
19
0911106018
ref: 19
BOLT
€ 1.50
20
0831111068
ref: 20
08310-00067
NUT
€ 2.50
21
0832221068
ref: 21
08322-01067
WASHER
€ 2.00
22-1
5851028300
ref: 22-1
58510-28000
CABLE ASSEMBLY,REAR BRAKE
€ 35.00
22-2
5851028000
ref: 22-2
CABLE,RR BRAKE
€ 35.00
23
0920005001
ref: 23
PIN(L:17.5)
€ 1.50
24
0832221068
ref: 24
08322-01067
WASHER
€ 2.00
25
0411120158
ref: 25
04111-2015A
PIN
€ 1.50
26
0915005001
ref: 26
NUT
€ 3.50
27
0920911002
ref: 27
PIN(11X18)
€ 2.00
