FRAME (MODEL R)

TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)

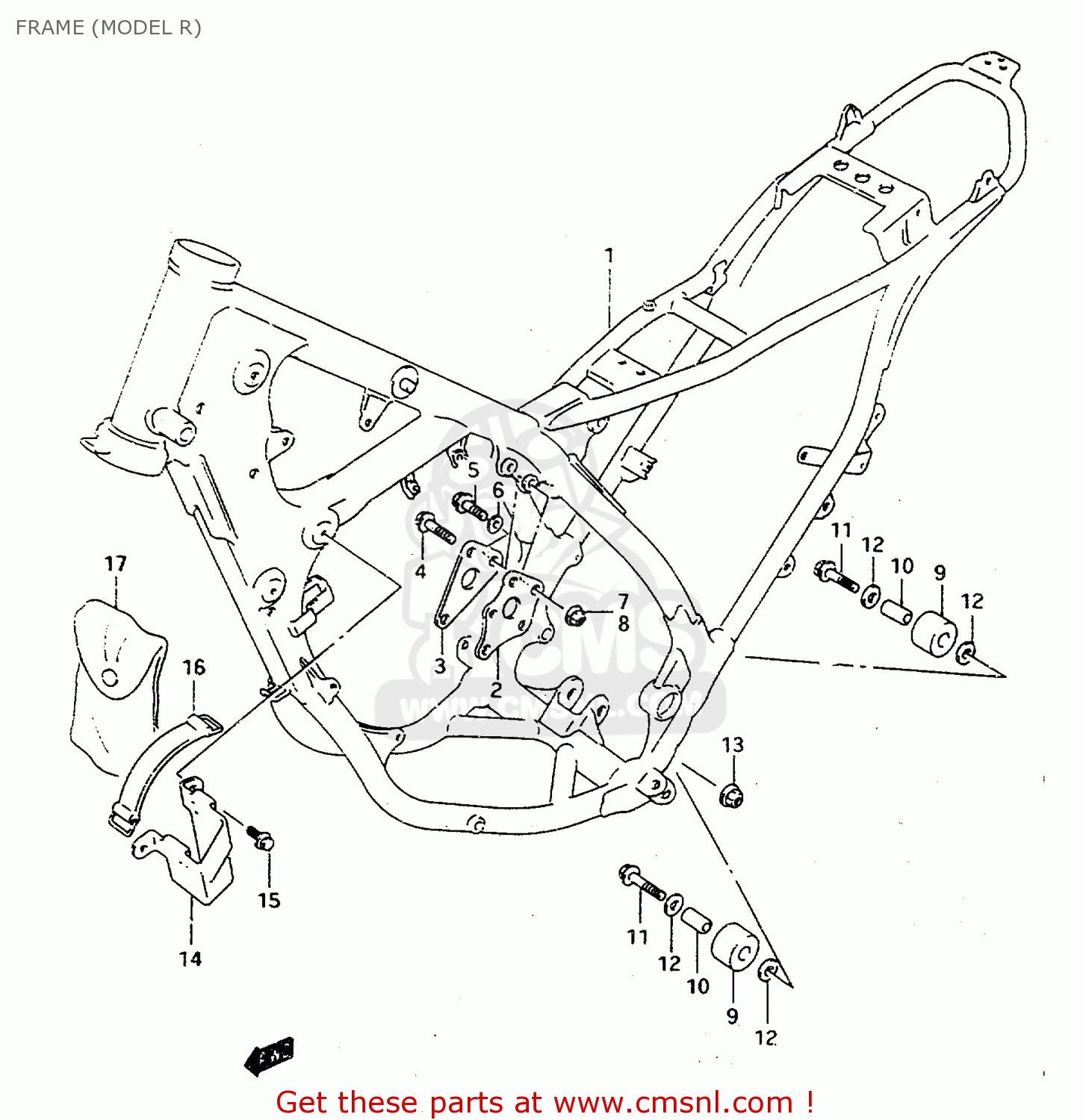

Frame (model r) diagram TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)

FRAME (MODEL R) TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)
FRAME (MODEL R) TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)
FRAME (MODEL R) TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
4110003D12ONF
ref: 1-1
FOR ONF
FRAME (WHITE)
€ 0.00
1-2
4110003D1224K
ref: 1-2
FOR 3OH
FRAME (CHARCOAL)
€ 669.50
2
4191003D00
ref: 2
PLATE,ENG MTG,L
€ 0.00
3
4192103D00
ref: 3
PLATE,ENG MTG,R
€ 0.00
4
0155008403
ref: 4
BOLT
0155008403
€ 3.50
5
0120408407
ref: 5
BOLT
0120408407
€ 2.00
6
0832201083
ref: 6
WASHER
0832201083
€ 1.50
7
0831931087
ref: 7
NUT
0831931087
€ 2.50
8
0915908101
ref: 8
NUT
€ 7.50
9
4391101B10
ref: 9
ROLLER,CHAIN CONTROL
4391101B10
€ 14.50
10
0918008136
ref: 10
SPACER (8.6X13.8X28)
0918008136
€ 9.00
11
0910308043
ref: 11
BOLT(8X45)
0910308043
€ 4.50
12
0821108221
ref: 12
WASHER
0821108221
€ 2.50
13
0831931087
ref: 13
NUT
0831931087
€ 2.50
14
4743003D01
ref: 14
HOLDER,TOOL
€ 18.00
15
0155006123
ref: 15
BOLT
0155006123
€ 2.50
16
0946200067
ref: 16
BAND
0946200067
€ 4.50
17
0980021002
ref: 17
TOOL ASSY
€ 0.00
9
0918008136
ref: 9
SPACER (8.6X13.8X28)
0918008136
€ 9.00
10
0910308043
ref: 10
BOLT(8X45)
0910308043
€ 4.50
11
0821108221
ref: 11
WASHER
0821108221
€ 2.50
12
0831931087
ref: 12
NUT
0831931087
€ 2.50
13-1
4743003D00
ref: 13-1
MODEL K
HOLDER, TOOL
4743003D00
€ 18.00
13-2
4743003D01
ref: 13-2
MODEL L/M/N/P
HOLDER,TOOL
€ 18.00
14
0151706125
ref: 14
BOLT 6X12
0151706125
€ 2.50
15
0946200067
ref: 15
BAND
0946200067
€ 4.50
16
0980020019
ref: 16
TOOL ASSY
€ 0.00
