TURNSIGNAL LAMP (E24)

TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)

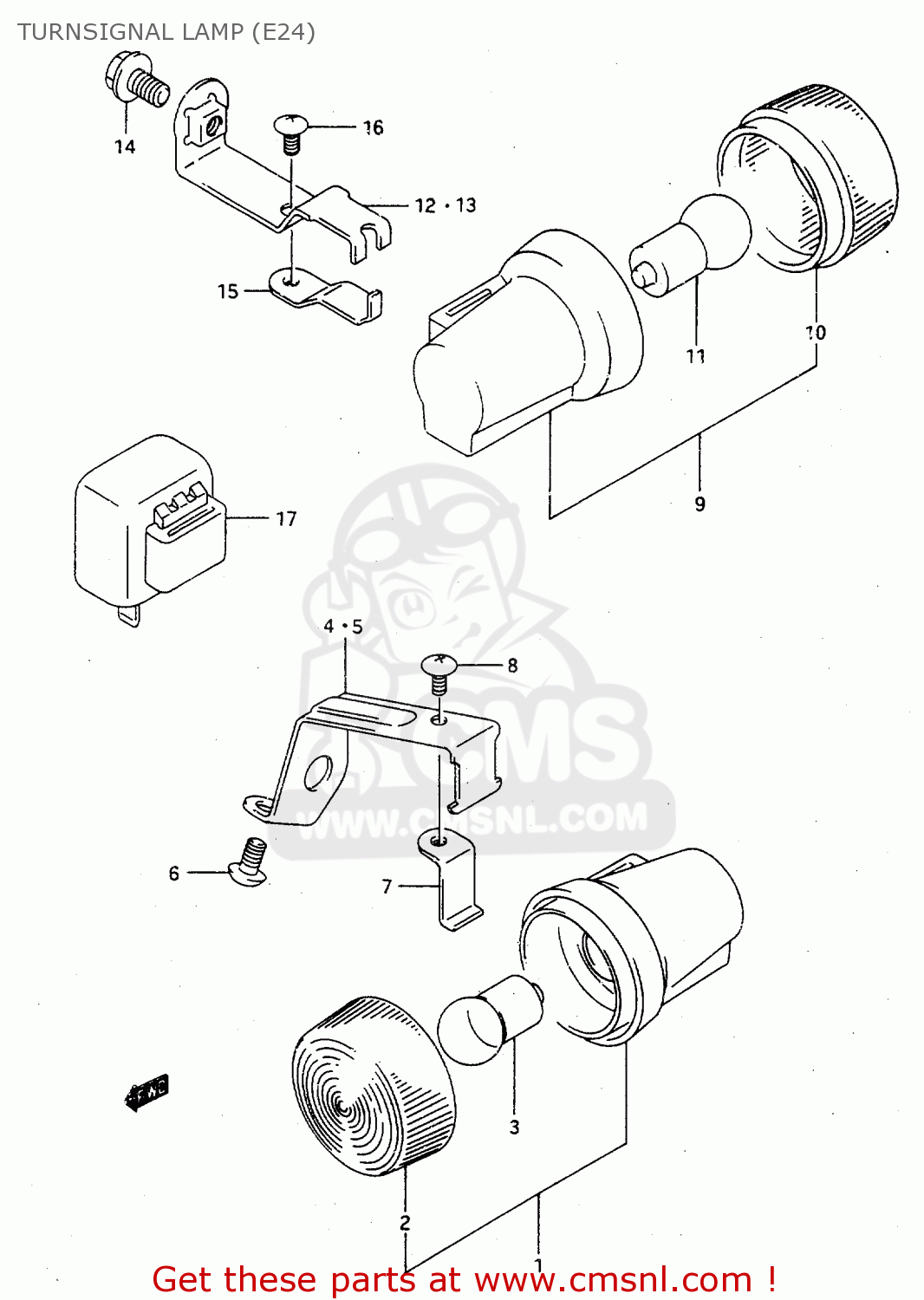

Turnsignal lamp (e24) diagram TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

3560103D00
ref: 1-1

LAMP ASSY, FRONT TURNSIGNAL, RH

€ 24.50

1-2

3560203D00
ref: 1-2

LAMP ASSY, FRONT TURNSIGNAL, LH

€ 47.50

3561203D00
ref: 2

LENS

€ 4.50

0947112003
ref: 3

BULB 12V 10W

€ 7.00

3567103D00
ref: 4

BRACKET, FRONT TURNSIGNAL,RH

€ 0.00

3568103D00
ref: 5

BRACKET, FRONT TURNSIGNAL,LH

€ 0.00

0214205084
ref: 6

SCREW

€ 2.00

3567203D00
ref: 7

PLATE,FR TURNSIGNAL BRACKET

€ 0.00

0214204065
ref: 8

SCREW

€ 1.50

9-1

3560303D00
ref: 9-1

LAMP ASSY, REAR TURNSIGNAL,RH

€ 35.00

9-2

3560403D00
ref: 9-2

LAMP ASSY, REAR TURNSIGNAL,LH

€ 50.00

3561203D00
ref: 10

LENS

€ 4.50

0947112003
ref: 11

BULB 12V 10W

€ 7.00

3562103D00
ref: 12

BRACKET,RR TURNSIGNAL LAMP,R

€ 0.00

3564103D00
ref: 13

BRACKET,RR TURNSIGNAL LAMP,L

€ 13.00

0151706108
ref: 14

BOLT

€ 2.50

3564403D01
ref: 15

PLATE,RR TURN SIGNAL

€ 0.00

0214204065
ref: 16

SCREW

€ 1.50

3861006410
ref: 17

RELAY, TURNSIGNAL

€ 46.00
