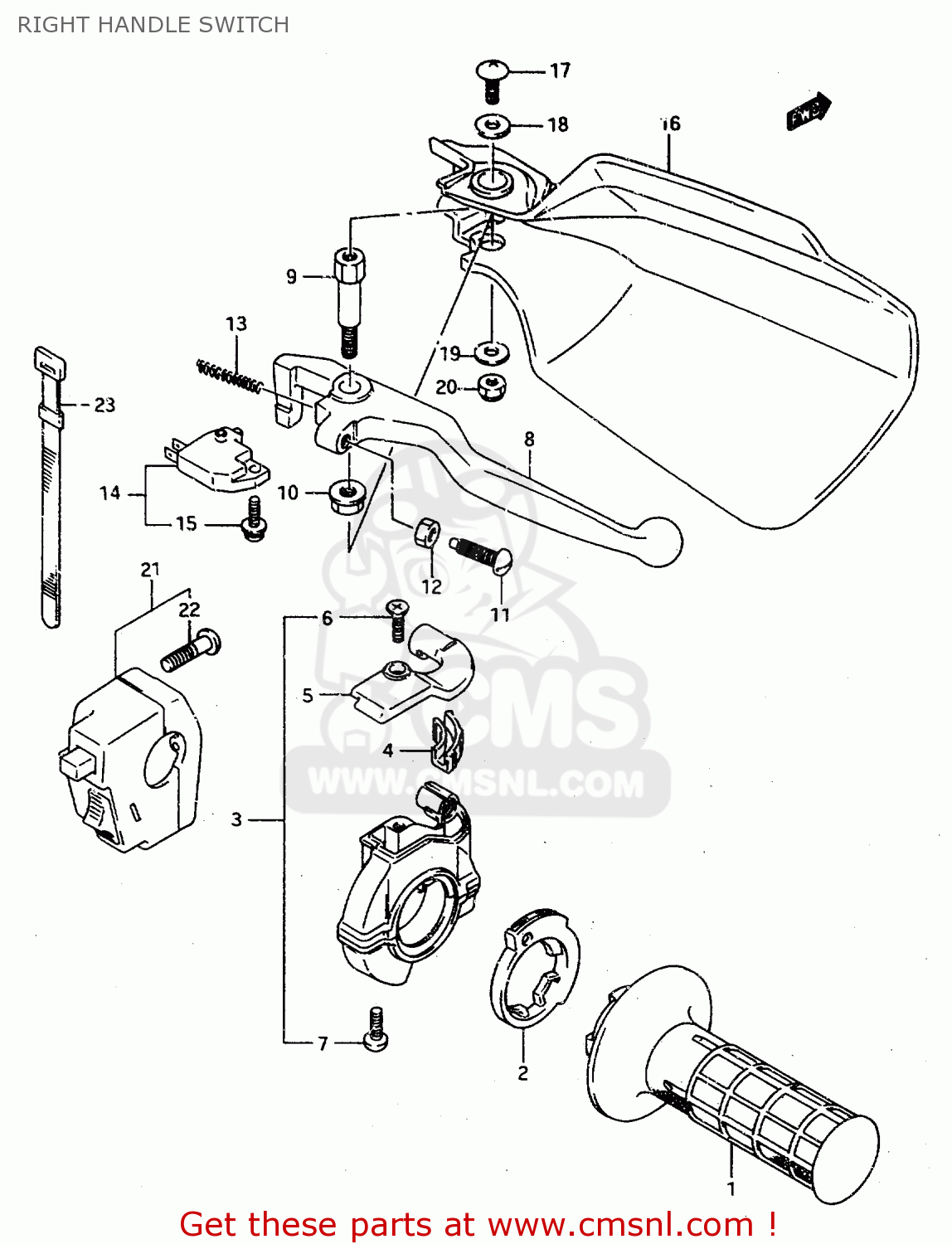

RIGHT HANDLE SWITCH

ref

part #

description

quantity

1

5711027C00
ref: 1

GRIP,THROTTLE

€ 25.00

2

5711420410
ref: 2

ROTOR,THROTTLE GRIP

€ 6.00

3

5710003D00
ref: 3

CASE ASSY,THROTTLE

€ 30.00

4

5712220410
ref: 4

GUIDE PIECE,THROTTLE

€ 4.50

5

5712920411
ref: 5

COVER,THROTTLE CASE

€ 8.50

6

0213204105
ref: 6

SCREW 4X10

€ 2.50

7

0211205167
ref: 7

SCREW

€ 2.50

8

5742103D00
ref: 8

LEVER,BRAKE

€ 14.50

9

5743105D00
ref: 9

BOLT,BRAKE LEVER PIVOT

€ 9.00

10

0831921068
ref: 10

NUT 6MM

€ 2.00

11

5743114511
ref: 11

BOLT,ADJUST

€ 3.50

12

0831012055
ref: 12

NUT ,5MM

€ 2.50

13

5731814502
ref: 13

SPRING,RETURN

€ 3.00

14

5746017C00
ref: 14

SWITCH ASSEMBLY,STOP

€ 32.50

15

5746517C00
ref: 15

SCREW

€ 1.50

16-1

5734105D0014C
ref: 16-1
MODEL K/L FOR 14C

COVER, KNUCKLE RH (RED)

€ 30.00

16-2

5734105D0025Y
ref: 16-2
MODEL K/L/M/N/ FOR 2

COVER,KNUCKLE,R

€ 24.50

16-3

5734105D0030H
ref: 16-3
MODEL K/M FOR 30HMOD

COVER,KNUCKLE,RIGHT

€ 18.00

16-4

5734105D000NF
ref: 16-4
MODEL L/M/N FOR 0NF

COVER,KNUCKLE,R

€ 28.00

17-1

0912505042
ref: 17-1
MODEL K/L/M/N/P

SCREW(5X10)

€ 2.50

17-2

0214205107
ref: 17-2
MODEL R

SCREW

€ 2.50

18

0916005017
ref: 18

WASHER (5.5X16X1.2)

€ 2.50

19

0916006042
ref: 19

WASHER (6.5X17X1.6)

€ 2.00

20

0831921068
ref: 20

NUT 6MM

€ 2.00

21-1

3720003D11
ref: 21-1
-37200-14A01

SWITCH ASSY, HANDLE, RH

€ 101.50

21-2

3720014A01
ref: 21-2

SWITCH ASSY,HANDLE,R

€ 101.50

21-3

3720003D01
ref: 21-3
E24

SWITCH ASSY, HANDLE, RH

€ 0.00

22

0912505066
ref: 22

SCREW(5X25)

€ 2.00

23

0940712402
ref: 23

CLAMP(L:120)

€ 3.00
