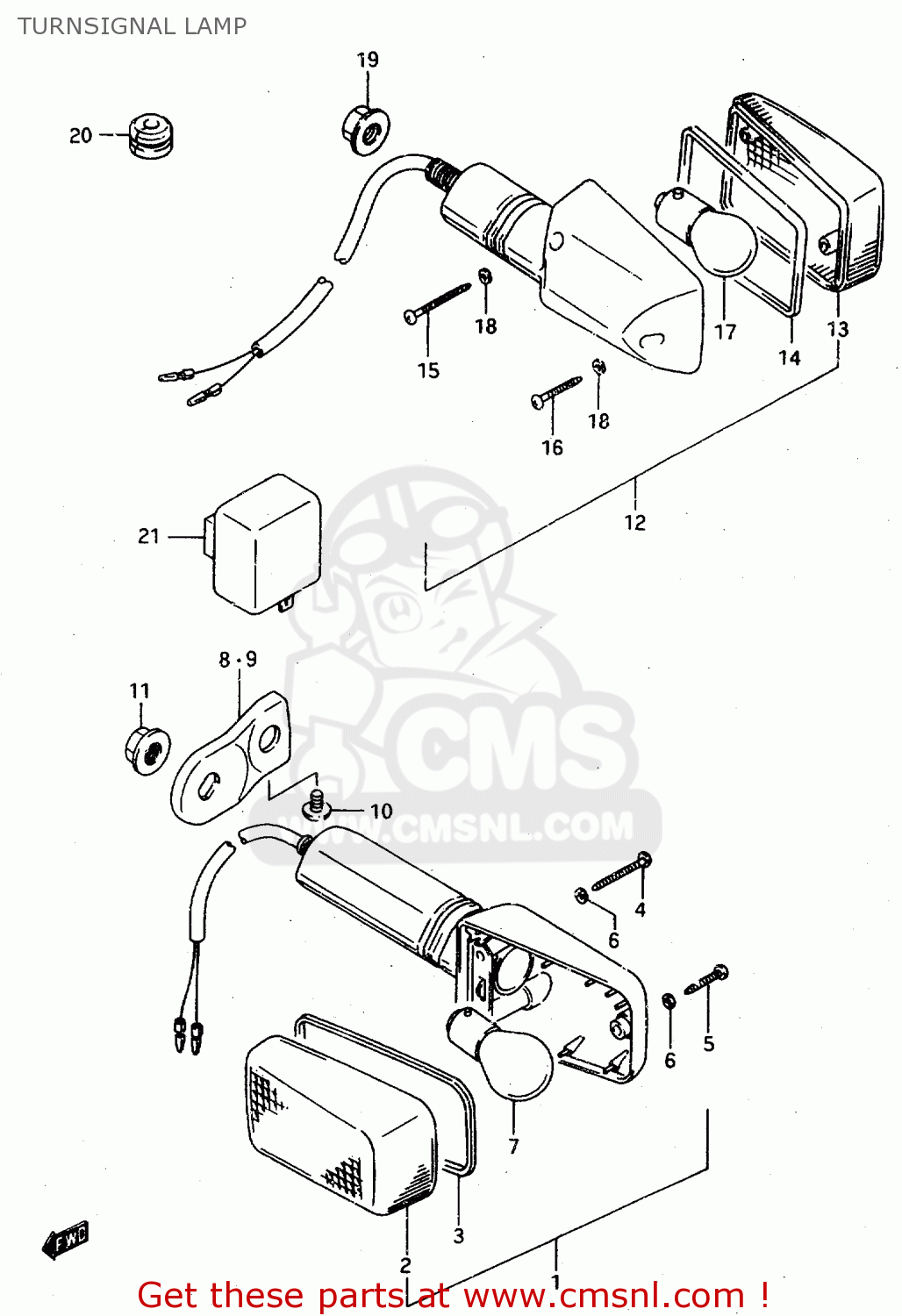

TURNSIGNAL LAMP

ref

part #

description

quantity

1-1

3560101D10
ref: 1-1

LAMP ASSY,FR TURN SIGNAL

€ 70.50

1-2

3560101D00
ref: 1-2
E4,E21,E34,E53

LAMP ASSY,FR TURN SIGNAL

€ 81.00

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

3567003D20
ref: 8

BRACKET,FR TURN,R

€ 9.00

9

3568003D20
ref: 9

BRACKET,FR TURN,L

€ 9.00

10-1

0214205084
ref: 10-1
MODEL K/L/M/N/P

SCREW

€ 2.00

10-2

0214205083
ref: 10-2
MODEL R

SCREW

€ 2.00

11-1

0831616105
ref: 11-1
MODEL K/L/M/N/P

NUT

€ 2.00

11-2

0831610103
ref: 11-2
MODEL R

NUT

€ 2.00

12-1

3560303D20
ref: 12-1
MODEL K/L/M

LAMP ASSY, REAR TURNSIGNAL

€ 88.00

12-2

3560314D10
ref: 12-2
MODEL N/P/R

LAMP ASSY,RR TURNSIGNAL

€ 88.00

12-3

3560303D30
ref: 12-3
MODEL K/L/M E18

LAMP ASSY, REAR TURNSIGNAL

€ 74.00

12-4

3560317C31
ref: 12-4
MODEL N/P/R E18

LAMP ASSEMBLY,REAR TURN SIGNAL

€ 74.00

13

3565217C20
ref: 13

LENS

€ 6.50

14

3561327A00
ref: 14

GASKET (NAS)

€ 3.00

15

3562327A00
ref: 15

SCREW(3X30)

€ 1.50

16

3572540511
ref: 16

SCREW

€ 1.50

17

0947112045
ref: 17

BULB(12V21W)

€ 5.00

18

3562727A02
ref: 18

GASKET (NAS)

€ 1.50

19-1

0831616105
ref: 19-1
MODEL K/L/M/N/P

NUT

€ 2.00

19-2

0831610103
ref: 19-2
MODEL R

NUT

€ 2.00

20

0930805015
ref: 20

GROMMET

€ 4.50

21

3861031310
ref: 21

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

all assemblies
