HANDLEBAR

TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)

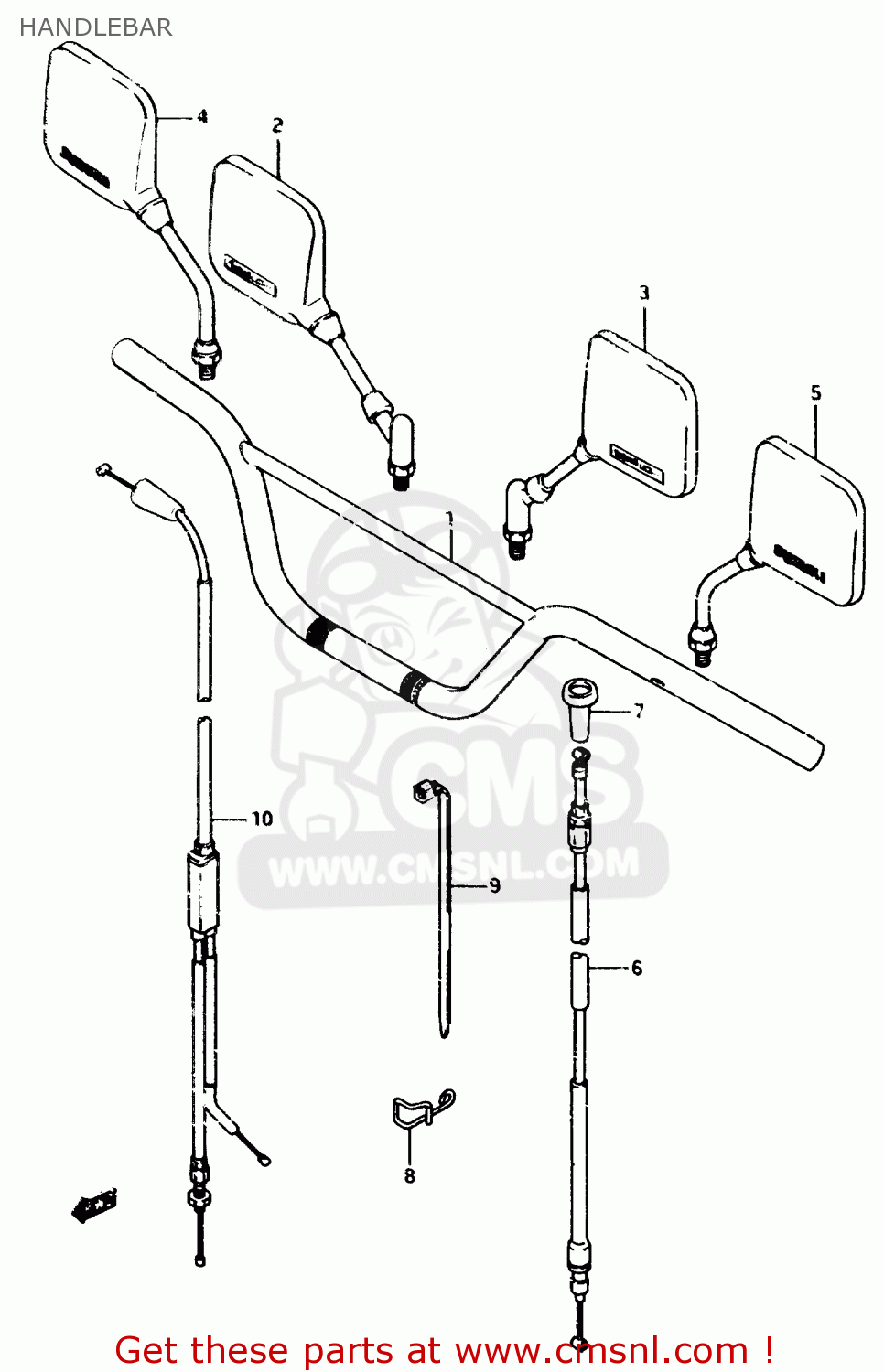

Handlebar diagram TS125R 1991 (M) (E02 E04 E15 E17 E18 E21 E34 E53)

prices are in EUR

ref

part #

description

quantity

1-1

5611003D00291
ref: 1-1
-56110-03D01-291

HANDLEBAR (BLACK)

€ 70.50

1-2

5611003D01291
ref: 1-2

HANDLEBAR

€ 70.50

5650010021
ref: 2
E2,E4,E17,E21,E34,E5

MIRROR ASSY, R

€ 90.00

5660010021
ref: 3
E2,E4,E17,E21,E34,E5

MIRROR ASSY,L

€ 92.00

4-1

5650001A20
ref: 4-1
E18,E24

MIRROR, REAR VIEW RH

€ 222.50

4-2

5650001A50
ref: 4-2
E15

MIRROR ASSEMBLY,REAR VIEW

€ 222.50

5-1

5660001A20
ref: 5-1
E18,E24

MIRROR, REAR VIEW LH

€ 196.00

5-2

5660001A50
ref: 5-2
E15

MIRROR ASSEMBLY,LEFT

€ 196.00

5821003D01
ref: 6

CABLE,CLUTCH

€ 48.00

5827331000
ref: 7

BOOT,CLUTCH CABLE

€ 2.50

5829403D00
ref: 8

GUIDE,CLUTCH CABLE

€ 0.00

0940725401
ref: 9
MODEL K/L

CLAMP(L:235)

€ 4.00

10-1

5830003D10
ref: 10-1

CABLE ASSY, THROTTLE

€ 36.50

10-2

5830003D01
ref: 10-2
E24

CABLE ASSY,THROTTLE

€ 35.50

HANDLEBAR

all assemblies
