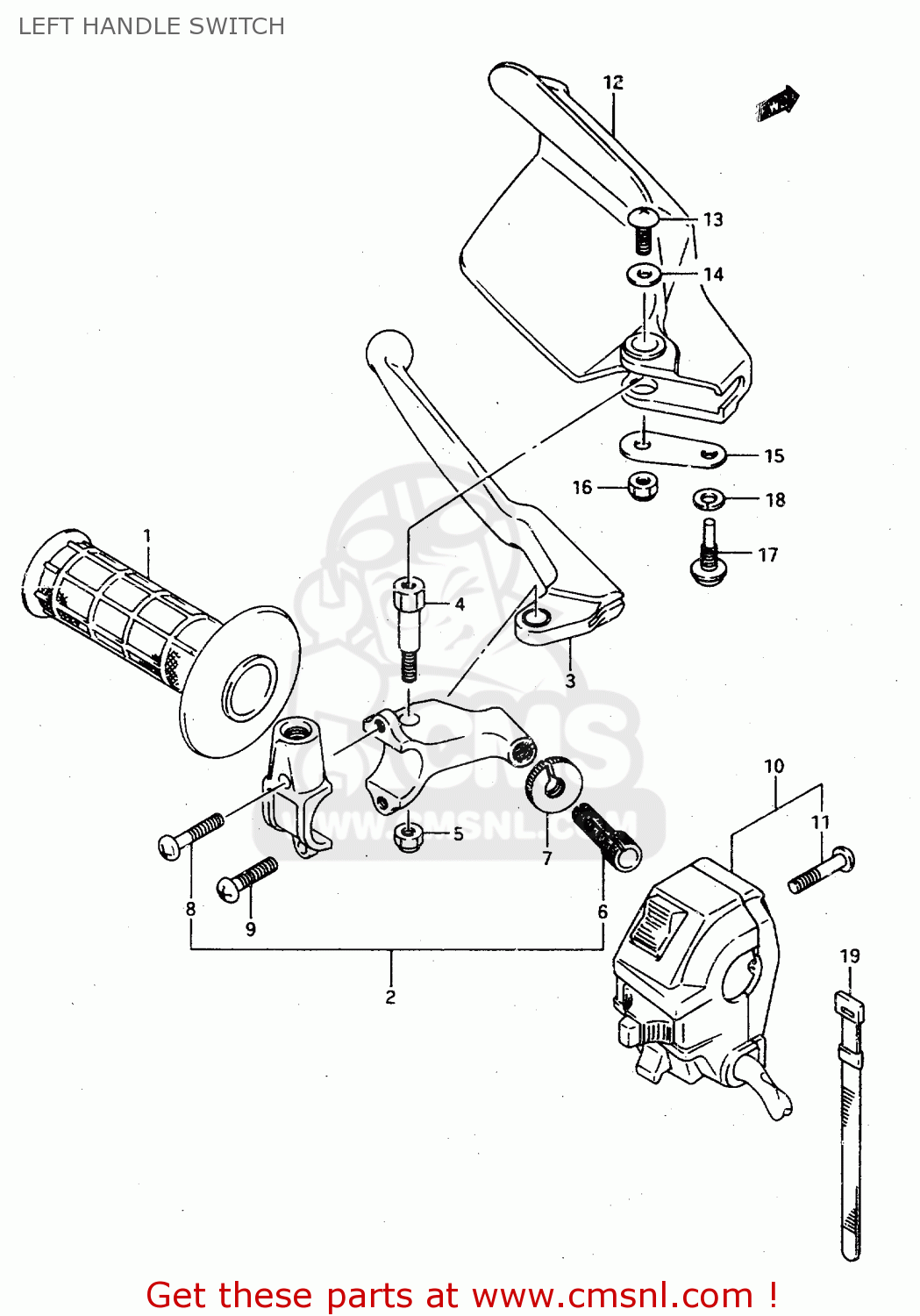

LEFT HANDLE SWITCH

ref

part #

description

quantity

1

5721127C00
ref: 1

GRIP,L

€ 11.00

2

5750003D00
ref: 2

LEVER ASSY,CLUTCH

€ 47.00

3

5762014300
ref: 3

LEVER,CLUTCH

€ 26.00

4

5763105D00
ref: 4

BOLT,LEVER SET

€ 7.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744126010
ref: 6

ADJUSTER,CABLE

€ 4.00

7

5744205D00
ref: 7

NUT,LOCK

€ 7.50

8

0912505105
ref: 8

SCREW

€ 4.50

9

0912505102
ref: 9

SCREW(5X14)

€ 2.50

10-1

3740003D12
ref: 10-1

SWITCH ASSEMBLY,HANDLE,LEFT

€ 109.50

10-2

3740003D02
ref: 10-2
E24

SWITCH ASSY,HANDLE,L

€ 0.00

11

0211205305
ref: 11

SCREW

€ 1.50

12-1

5754105D0114C
ref: 12-1
MODEL K/L FOR 14C

COVER, KNUCKLE,LH (RED)

€ 33.00

12-2

5754105D0125Y
ref: 12-2
MODEL K/L/M/N FOR 25

COVER,KNUCKLE,L

€ 26.50

12-3

5754105D0130H
ref: 12-3
MODEL K/M FOR 30HMOD

COVER,KNUCKLE,L

€ 31.00

12-4

5754105D010NF
ref: 12-4
MODEL L/M/N FOR 0NF

COVER,KNUCKLE,L

€ 31.00

13-1

0912505042
ref: 13-1
MODEL K/L/M/N/P

SCREW(5X10)

€ 2.50

13-2

0214205107
ref: 13-2
MODEL R

SCREW

€ 2.50

14

0916005017
ref: 14

WASHER (5.5X16X1.2)

€ 2.50

15

5754205D00
ref: 15

PLATE,KNUCKLE COVER,L LWR

€ 3.50

16

0831921068
ref: 16

NUT 6MM

€ 2.00

17

0913906010
ref: 17

SCREW

€ 3.00

18-1

0832121067
ref: 18-1
MODEL K/L/M/N/P

WASHER,LOCK

€ 2.50

18-2

0832101063
ref: 18-2
MODEL R

LOCK WASHER

€ 2.00

19

0940712402
ref: 19

CLAMP(L:120)

€ 3.00
