AIR CLEANER

TS50ERK 1983 D) (E02 E16 E22)

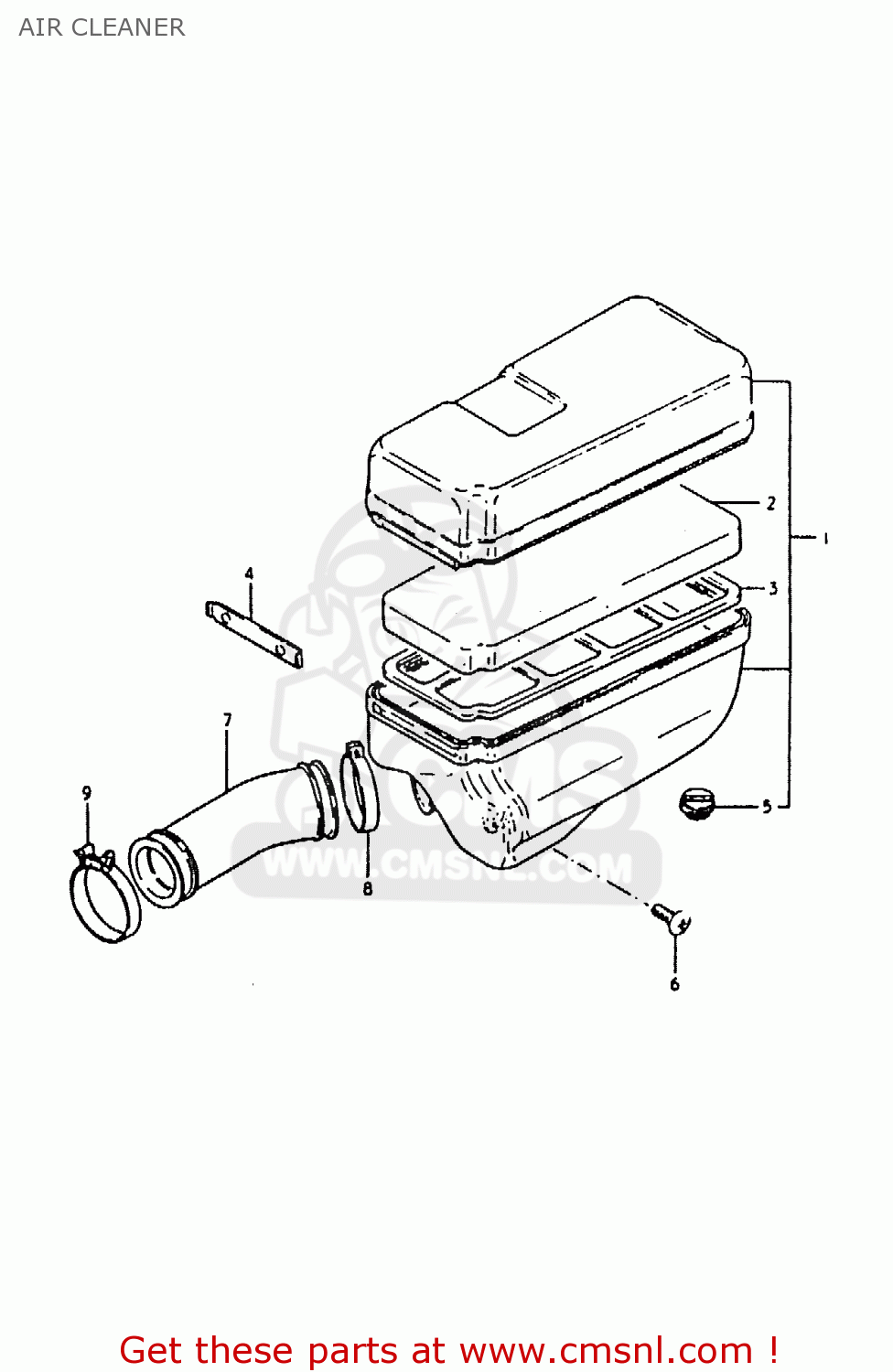

Air cleaner diagram TS50ERK 1983 D) (E02 E16 E22)

AIR CLEANER TS50ERK 1983 D) (E02 E16 E22)

AIR CLEANER TS50ERK 1983 D) (E02 E16 E22)

prices are in EUR

ref

part #

description

quantity

1-1

1370046100
ref: 1-1

CLEANER ASSY,A

€ 42.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

1378126400
ref: 2

FILTER

€ 8.00

3

1384126400
ref: 3

HOLDER

€ 8.50

4

1382100011
ref: 4

SLIDER

€ 3.50

5

1386000010
ref: 5

CAP,DRAIN

€ 6.50

6

0214206167
ref: 6

SCREW

€ 2.00

7

1388246100
ref: 7

TUBE,AIR CLEANER OUTLET

€ 14.50

8

0940240305
ref: 8

CLAMP

€ 4.00

9

0940234306
ref: 9

CLAMP

€ 9.00
