RIGHT HANDLE SWITCH

TS50ERK 1983 D) (E02 E16 E22)

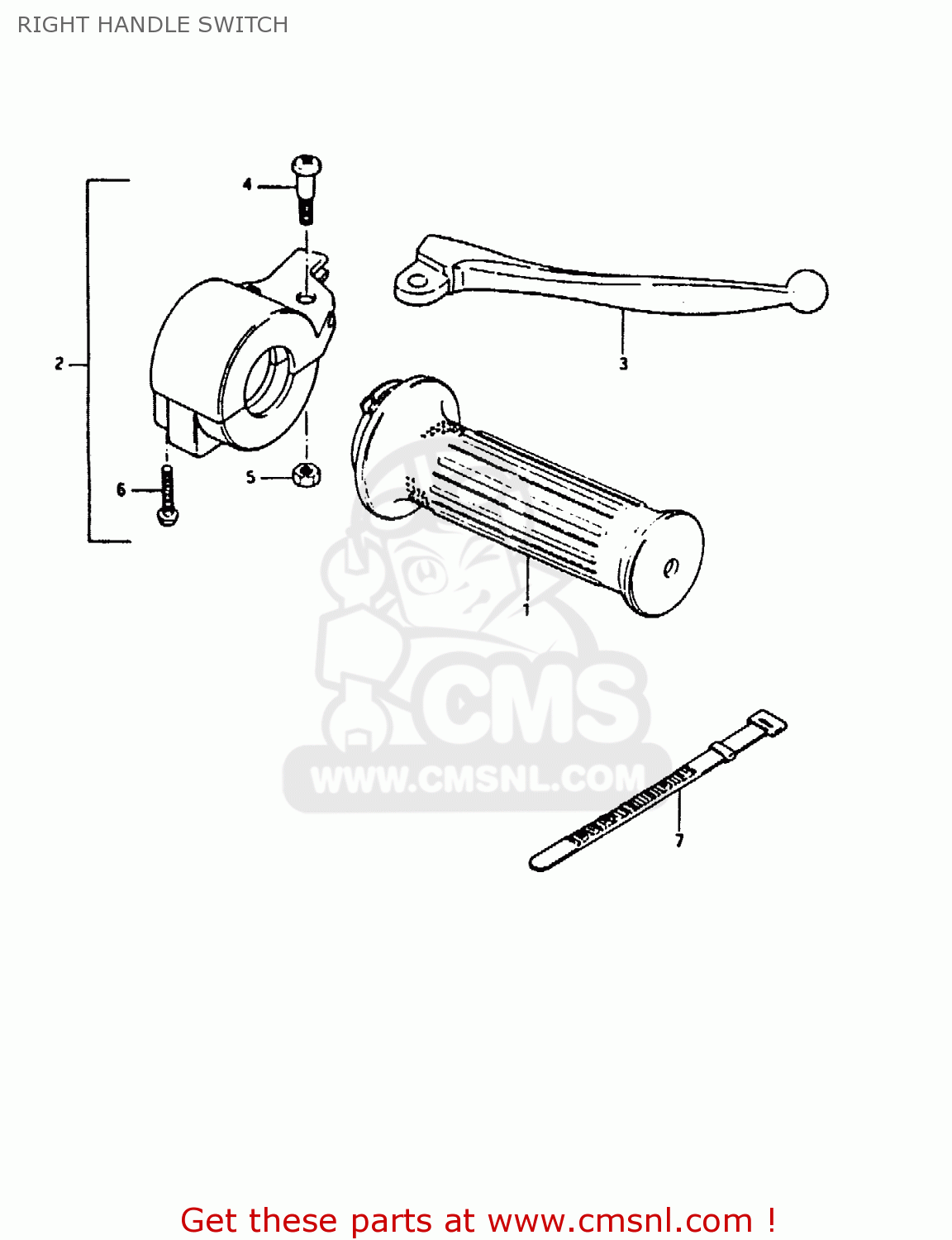

Right handle switch diagram TS50ERK 1983 D) (E02 E16 E22)

RIGHT HANDLE SWITCH TS50ERK 1983 D) (E02 E16 E22)

RIGHT HANDLE SWITCH TS50ERK 1983 D) (E02 E16 E22)

prices are in EUR

ref

part #

description

quantity

1

5711027501
ref: 1

GRIP,THROTTLE

€ 17.00

2

5730027512
ref: 2

BRAKE LEVER & SWITCH ASSY

€ 70.00

3

5742127500
ref: 3

LEVER

€ 28.00

4

5743101011
ref: 4

BOLT,LEVER

€ 5.00

5

5763327500
ref: 5

NUT,LEVER BOLT

€ 1.50

6

0912505105
ref: 6

SCREW

€ 4.50

7

0940712402
ref: 7

CLAMP(L:120)

€ 3.00
