HEADLAMP

TS50ERK 1983 D) (E02 E16 E22)

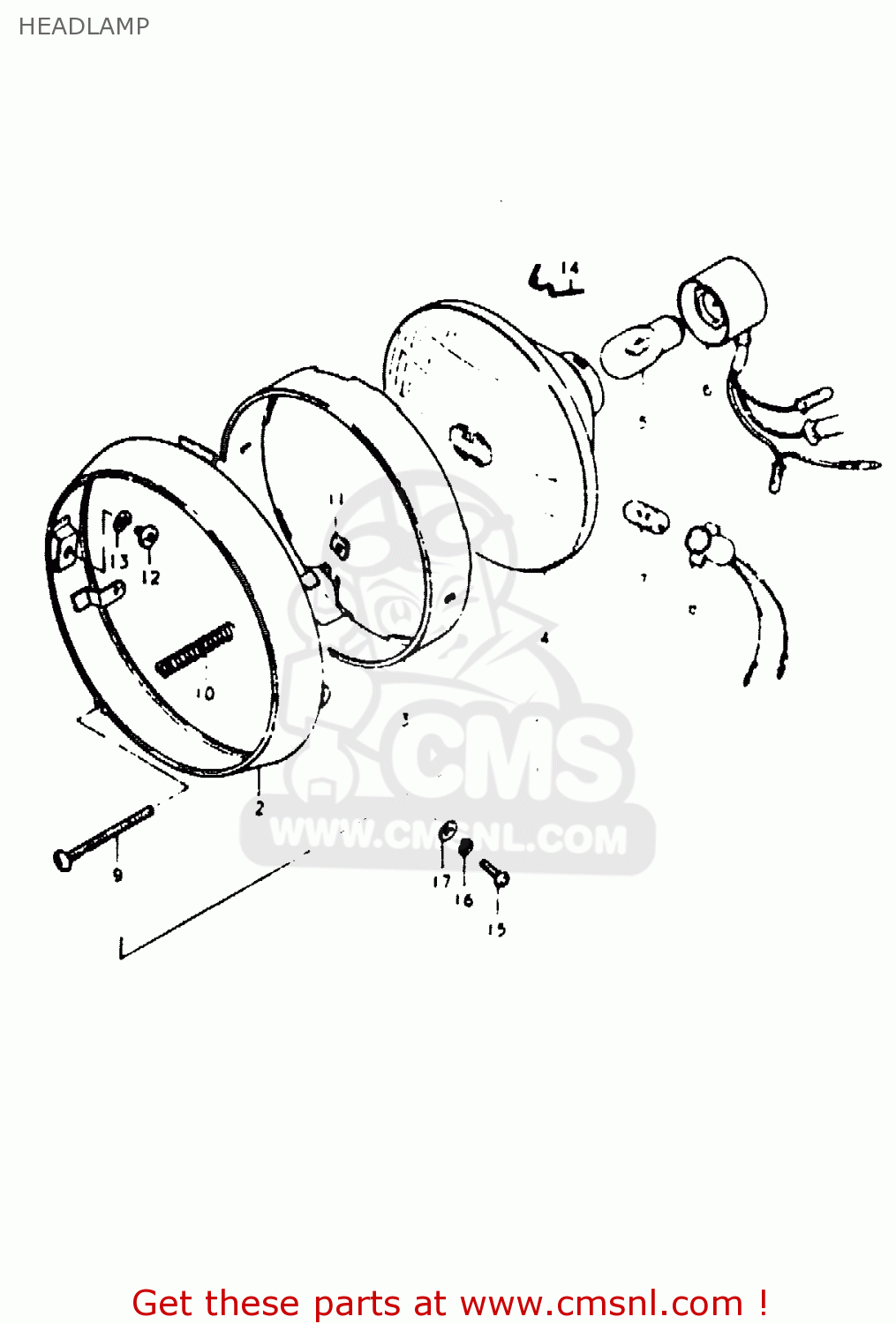

Headlamp diagram TS50ERK 1983 D) (E02 E16 E22)

HEADLAMP TS50ERK 1983 D) (E02 E16 E22)

HEADLAMP TS50ERK 1983 D) (E02 E16 E22)

prices are in EUR

ref

part #

description

quantity

1

3510046720
ref: 1

HEADLAMP ASSY

€ 154.50

2

3511146790
ref: 2

RIM

€ 50.00

3

3512746790
ref: 3

RETAINER

€ 55.00

4

3512146720
ref: 4

UNIT

€ 70.00

5

0947106026
ref: 5

BULB (6V, 18/18W)

€ 0.00

6

3517146720
ref: 6

SOCKET

€ 27.00

7

0947106002
ref: 7

BULB(6V/3W)

€ 2.50

8

3611828660
ref: 8

SOCKET

€ 11.50

9

3515145030
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.00

10

3515431900
ref: 10

SPRING,ADJUSTING

€ 3.50

11

3515215611
ref: 11

NUT

€ 3.50

12

3513629610
ref: 12

SCREW

€ 3.00

13

0832121058
ref: 13

LOCK WASHER

€ 2.00

14

3512846720
ref: 14

SPRING

€ 4.50

15

0211205168
ref: 15

SCREW

€ 2.50

16

0832121058
ref: 16

LOCK WASHER

€ 2.00

17

0832221058
ref: 17

WASHER

€ 2.50
