REAR SWINGING ARM
TS50ERK 1983 D) (E02 E16 E22)

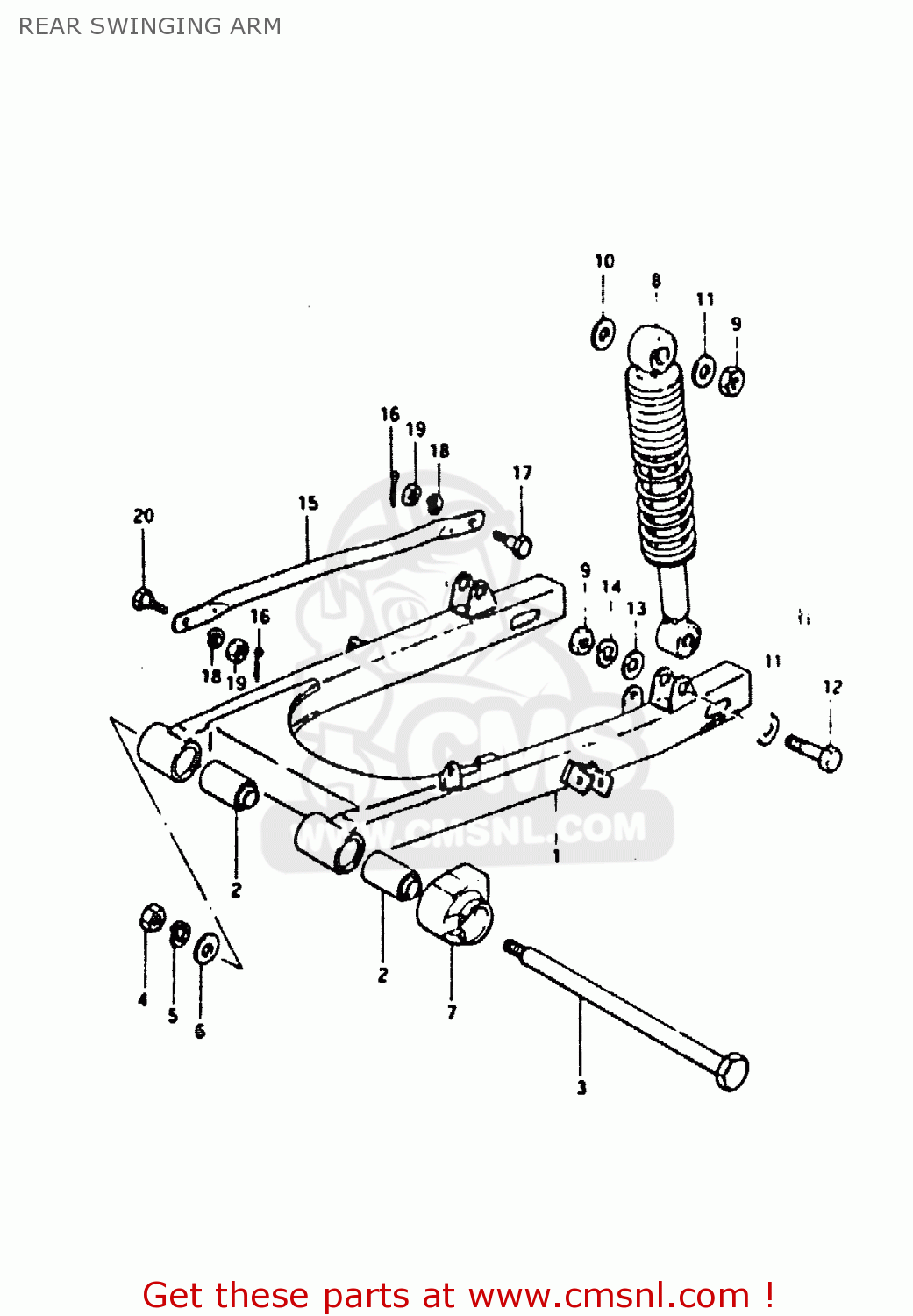

Rear swinging arm diagram TS50ERK 1983 D) (E02 E16 E22)
REAR SWINGING ARM TS50ERK 1983 D) (E02 E16 E22)
×
prices are in EUR
ref
part #
description
quantity
1
611014686008C
ref: 1
SWINGING ARM, REAR
€ 165.00
2
0931910024
ref: 2
BUSH
€ 8.50
3
6121146000
ref: 3
SHAFT,REAR SWING ARM
€ 13.00
4
0831011108
ref: 4
NUT
€ 2.50
5
0832121108
ref: 5
LOCK WASHER
€ 2.00
6
0832221108
ref: 6
WASHER
€ 2.50
7
6127326500
ref: 7
BUFFER
€ 9.00
8-1
6210026511
ref: 8-1
SHOCK ABSORBER, REAR
€ 0.00
8-2
NOTUSED
ref: 8-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
0831011108
ref: 9
NUT
€ 2.50
10
0832211128
ref: 10
WASHER
€ 2.00
11
0916010001
ref: 11
WASHER
€ 2.00
12
0910410002
ref: 12
BOLT(10X36)
€ 4.50
13
0832211108
ref: 13
WASHER
€ 2.50
14
0832121108
ref: 14
LOCK WASHER
€ 2.00
15
643112640008C
ref: 15
TORQUE LINK, REAR
€ 10.50
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
0911108013
ref: 17
BOLT(8X26.5)
€ 3.00
18
0832121088
ref: 18
LOCK WASHER
€ 2.00
19
0914008008
ref: 19
NUT
€ 1.50
20
0911108015
ref: 20
BOLT(8X22)
€ 3.00
