OIL PUMP

TS50ERK 1983 D) (E02 E16 E22)

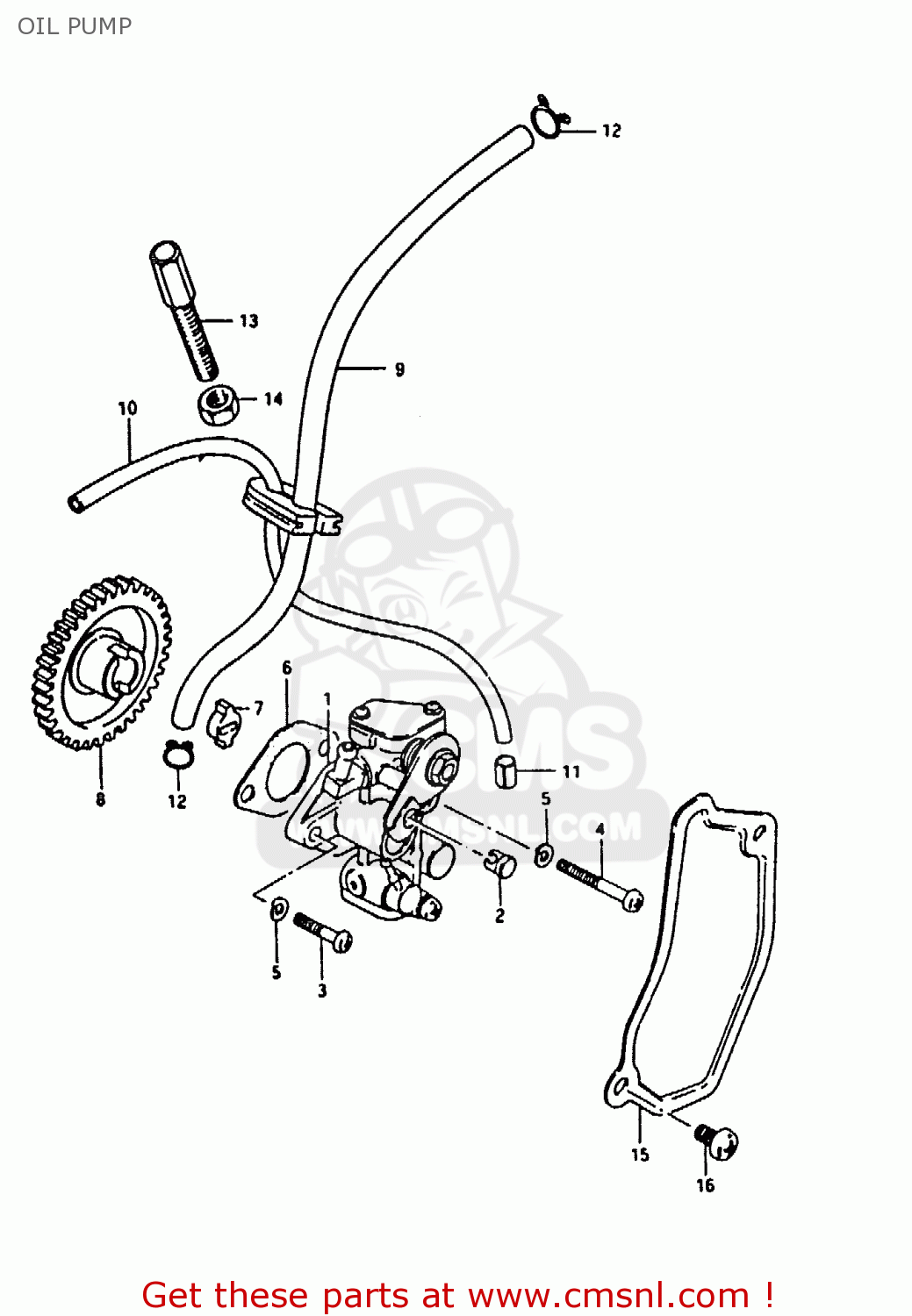

Oil pump diagram TS50ERK 1983 D) (E02 E16 E22)

OIL PUMP TS50ERK 1983 D) (E02 E16 E22)

OIL PUMP TS50ERK 1983 D) (E02 E16 E22)

prices are in EUR

ref

part #

description

quantity

1

1610046112
ref: 1

PUMP ASSY,OIL

€ 172.50

2

1629203112
ref: 2

TERMINAL,CABLE

€ 3.50

3

0211205168
ref: 3

SCREW

€ 2.50

4

0211205308
ref: 4

SCREW

€ 1.50

5

0832121058
ref: 5

LOCK WASHER

€ 2.00

6

1673103101
ref: 6

GASKET,OIL PUMP (NAS)

€ 2.50

7

1639105031
ref: 7

PIECE,OIL PUMP DRIVE

€ 2.50

8

1632046131
ref: 8

GEAR,OIL PUMP DRIVE

€ 35.00

9

0934304045
ref: 9

HOSE

€ 14.00

10

1682046102
ref: 10

HOSE,NO.2

€ 8.00

11

0940104401
ref: 11

CLIP

€ 2.50

12

0940108401
ref: 12

CLIP

€ 1.50

13

0911908014
ref: 13

BOLT

€ 3.50

14

0831012088
ref: 14

NUT

€ 2.00

15

1130246810
ref: 15

CRANKCASE SET

€ 11.50

16

0211206108
ref: 16

SCREW

€ 1.50
