CRANKCASE
TS50ERKD 1982 (Z) (E17 E18 E21 E41)

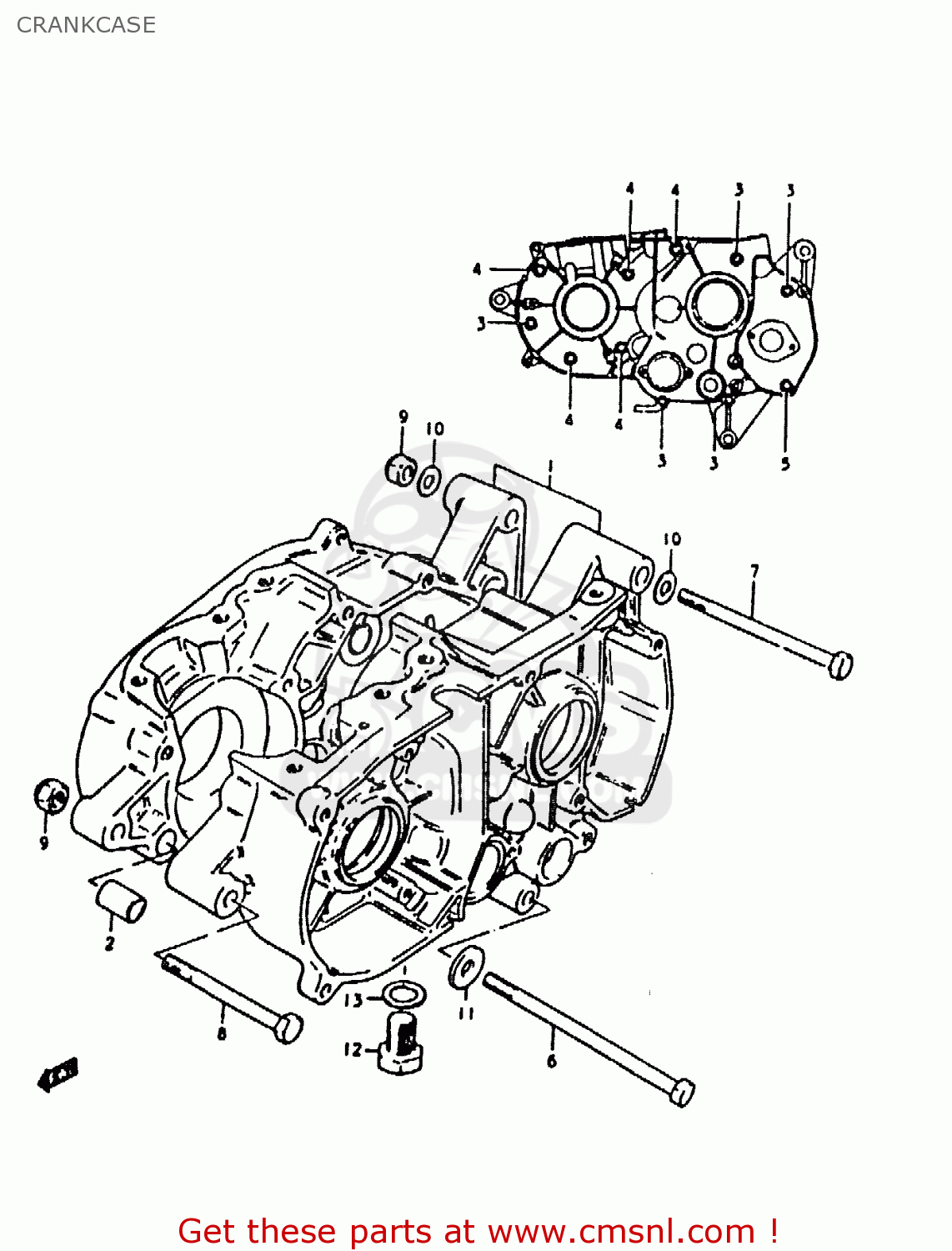

Crankcase diagram TS50ERKD 1982 (Z) (E17 E18 E21 E41)
CRANKCASE TS50ERKD 1982 (Z) (E17 E18 E21 E41)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130046827
ref: 1-1
CRANKCASE ASSEMBLY
€ 272.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
0421111189
ref: 2
PIN
€ 2.00
3
0211206458
ref: 3
SCREW (6X45)
€ 2.00
4
0211206358
ref: 4
SCREW (6X35)
€ 2.50
5
0211206258
ref: 5
SCREW
€ 2.00
6
0910008027
ref: 6
BOLT
€ 3.50
7
0910308009
ref: 7
BOLT
€ 5.00
8
0151708758
ref: 8
BOLT 8X75
€ 3.50
9
0915908020
ref: 9
NUT
€ 2.50
10
0832211088
ref: 10
WASHER
€ 2.00
11
0916008030
ref: 11
WASHER
€ 2.50
12
0110710208
ref: 12
BOLT 10X20
€ 3.50
13
0916810002
ref: 13
GASKET(10X14X3.6) (NAS)
€ 2.00
