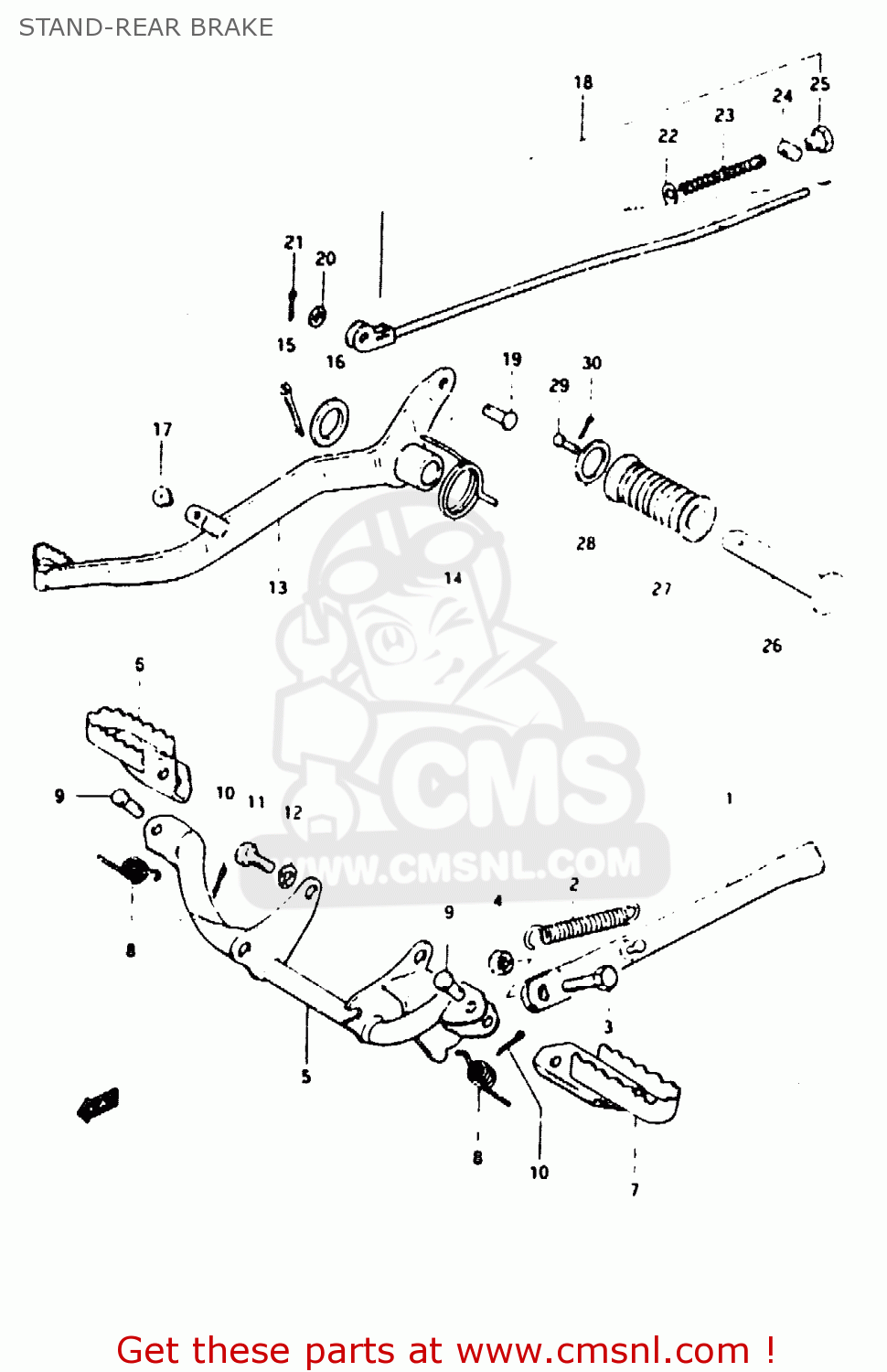

STAND-REAR BRAKE

ref

part #

description

quantity

1

4231026540
ref: 1

STAND, PROP

€ 31.00

2

0944314017
ref: 2

SPRING

€ 6.50

3

0910010007
ref: 3

BOLT

€ 4.50

4

0831022108
ref: 4

NUT

€ 2.50

5

4351026502
ref: 5

BAR, FRONT FOOTREST

€ 83.50

6

4355046000
ref: 6

FOOTREST,FRONT,RIGHT

€ 9.00

7

4356046000
ref: 7

FOOTREST

€ 9.00

8

0944814012
ref: 8

SPRING

€ 3.00

9

0920008002
ref: 9

PIN

€ 2.00

10

0411120208
ref: 10

PIN 20X20

€ 1.50

11

0110708168
ref: 11

BOLT

€ 2.00

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

4311026501
ref: 13

PEDAL, BRAKE

€ 43.50

14

0944832004
ref: 14

SPRING

€ 4.50

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0916015002
ref: 16

WASHER(15.5X26X2.3)

€ 2.00

17

4315530500
ref: 17

STOPPER,BRAKE PEDAL

€ 2.00

18-1

4330026500
ref: 18-1

ROD ASSEMBLY,REAR BRAKE

€ 18.50

18-2

NOTUSED
ref: 18-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19

0920006013
ref: 19

PIN(L:13.5)

€ 2.00

20

0832221068
ref: 20

WASHER

€ 2.00

21

0411120208
ref: 21

PIN 20X20

€ 1.50

22

0832221068
ref: 22

WASHER

€ 2.00

23

0944009004
ref: 23

SPRING

€ 2.00

24

0920911002
ref: 24

PIN(11X18)

€ 2.00

25-1

0915006001
ref: 25-1
MODEL Z

NUT

€ 3.50

25-2

0915006009
ref: 25-2
MODEL D

NUT (6MM)

€ 3.50

26

4361003001
ref: 26

BAR,FOOTREST RUBBER

€ 5.50

27

4361203001
ref: 27

RUBBER,PILLION FOOTREST

€ 3.50

28

0916019006
ref: 28

WASHER (19.5X32X2)

€ 2.00

29

0920006010
ref: 29

PIN

€ 2.50

30

0411120208
ref: 30

PIN 20X20

€ 1.50
