MAGNETO
TS50ERKD 1982 (Z) (E17 E18 E21 E41)

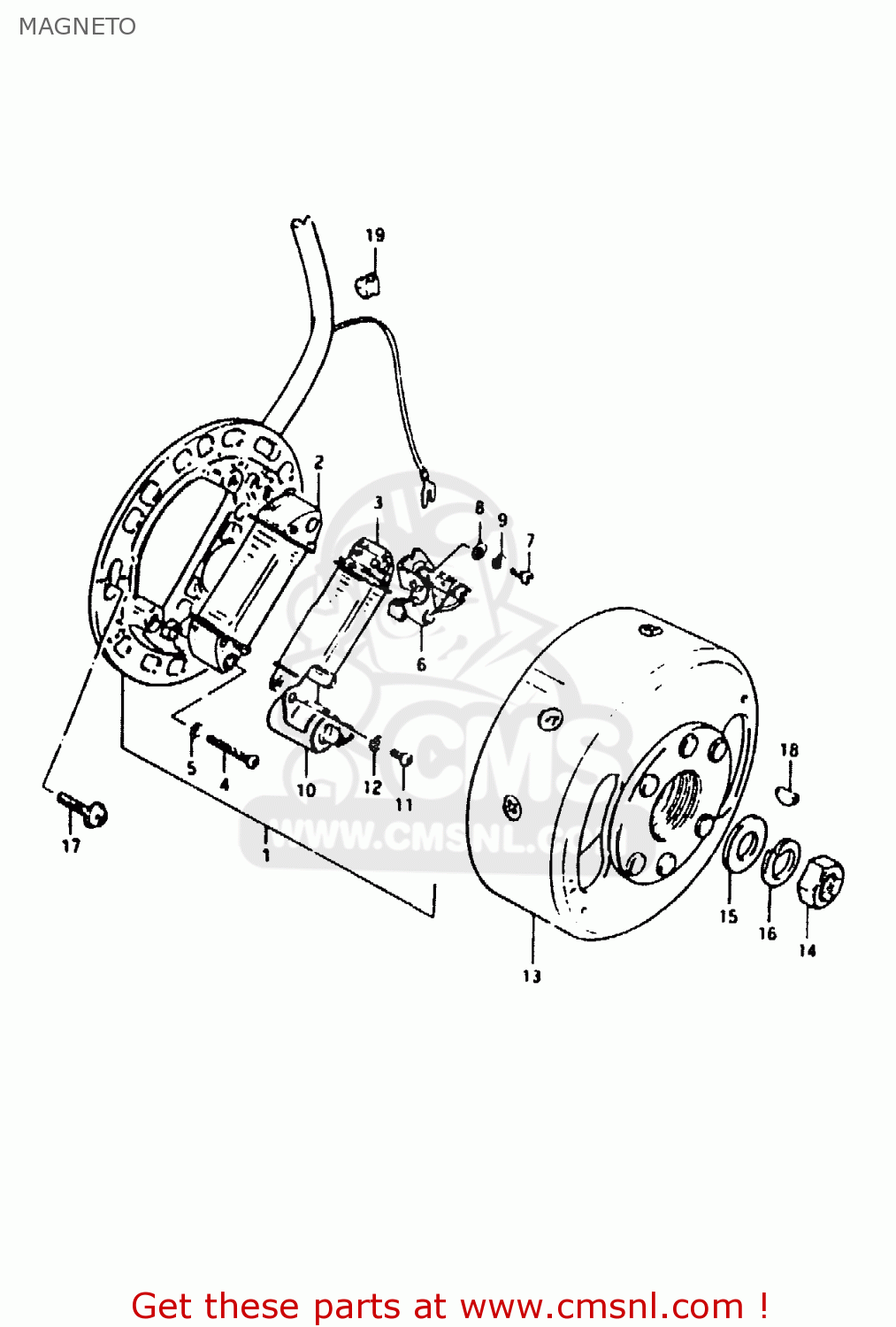

Magneto diagram TS50ERKD 1982 (Z) (E17 E18 E21 E41)
MAGNETO TS50ERKD 1982 (Z) (E17 E18 E21 E41)
×
prices are in EUR
ref
part #
description
quantity
1
3210146340
ref: 1
STATOR ASSY
€ 102.50
2
3212004510
ref: 2
COIL,LIGHTING
€ 43.00
3
3214048010
ref: 3
COIL,PRIMARY
€ 60.50
4
0211204308
ref: 4
SCREW (4X30)
€ 1.50
5
0832121048
ref: 5
LOCK WASHER
€ 2.00
6
3224043012
ref: 6
POINT ASSY,CONTACT
€ 18.50
7
0912504001
ref: 7
SCREW(4X10)
€ 4.50
8
0832221048
ref: 8
WASHER
€ 2.00
9
0832121048
ref: 9
LOCK WASHER
€ 2.00
10
3234143012
ref: 10
CONDENSER
€ 12.50
11
0211204088
ref: 11
SCREW
€ 1.50
12
0832121048
ref: 12
LOCK WASHER
€ 2.00
13
3210246340
ref: 13
ROTOR, FLYWHEEL
€ 133.50
14
0914010003
ref: 14
NUT (10MM)
€ 3.50
15
0832221108
ref: 15
WASHER
€ 2.50
16
0832121108
ref: 16
LOCK WASHER
€ 2.00
17
0913905011
ref: 17
SCREW(5X14)
€ 3.00
18
0834131039
ref: 18
KEY
€ 2.00
19
3274232021
ref: 19
GROMMET,NEUTRAL LEAD WIRE
€ 2.50
