FRONT FORK
TS50ERKD 1982 (Z) (E17 E18 E21 E41)

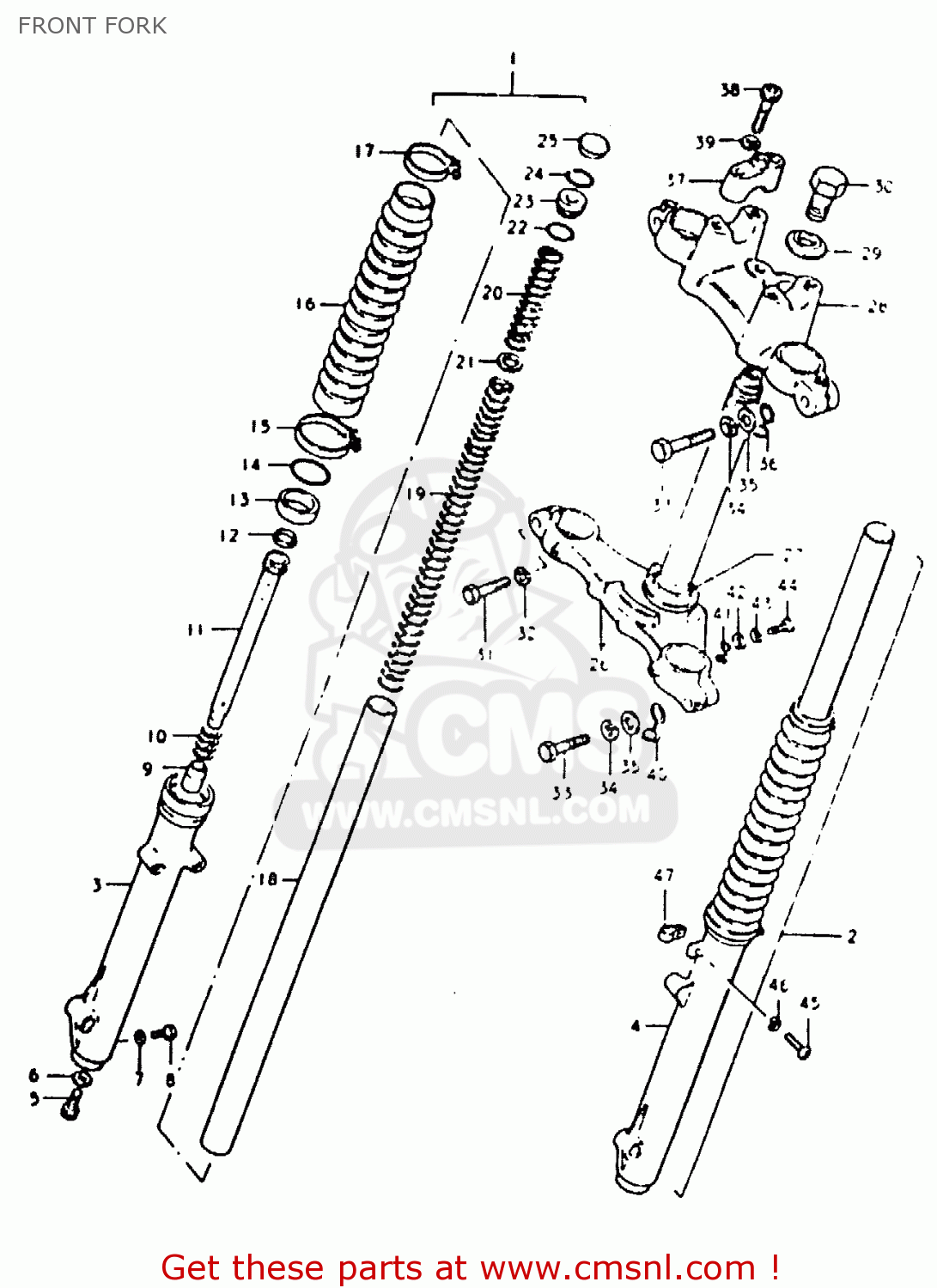

Front fork diagram TS50ERKD 1982 (Z) (E17 E18 E21 E41)
FRONT FORK TS50ERKD 1982 (Z) (E17 E18 E21 E41)
×
prices are in EUR
ref
part #
description
quantity
0
5110026580291
ref: 0
MODEL Z
FORK ASSY, FRONT (BLACK)
€ 759.00
0
5110026580019
ref: 0
MODEL D
FORK ASSY, FRONT (BLACK)
€ 0.00
0
511002658007P
ref: 0
MODEL D
FORK ASSY, FRONT (RED)
€ 0.00
0
511002658008Y
ref: 0
MODEL D
FORK ASSY, FRONT (BLUE)
€ 0.00
0
5110026580163
ref: 0
MODEL D
FORK ASSY, FRONT (YELLOW)
€ 0.00
1
5110326501
ref: 1
DAMPER ASSY RH
€ 386.00
2
5110426501
ref: 2
DAMPER ASSY LH
€ 386.00
3
5113126500
ref: 3
OUTER TUBE RH
€ 135.50
4
5114126500
ref: 4
OUTER TUBE LH
€ 107.50
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
GASKET (NAS)
€ 4.00
7
5118331030
ref: 7
GASKET,DRAIN,PLUG (NAS)
€ 4.00
8
0910006011
ref: 8
BOLT(6X8)
€ 2.50
9
5119548000
ref: 9
PIECE,OIL LOCK
€ 8.50
10
5117748000
ref: 10
SPRING,FORK REBOUND
€ 6.00
11
5114648000
ref: 11
CYLINDER,FRONT FORK
€ 50.00
12
5119648000
ref: 12
RING
€ 5.50
13
5115348420
ref: 13
SEAL,OIL
€ 11.00
14
5115636030
ref: 14
CIRCLIP,FORK OIL SEAL
€ 2.50
15
0940252306
ref: 15
CLAMP
€ 6.00
16
5157148530
ref: 16
BOOT
€ 34.00
17
5157548530
ref: 17
BAND,FRONT FORK COVER BOOT
€ 3.00
18
5111026500
ref: 18
INNER TUBE
€ 44.50
19
5117126501
ref: 19
SPRING A
€ 0.00
20
5118426500
ref: 20
SPRING B
€ 14.00
21
5117248000
ref: 21
SEAT,SPRING
€ 0.00
22
5118133131
ref: 22
O RING
€ 5.00
23
5117548500
ref: 23
SEAT,SPRING
€ 9.00
24
5116948500
ref: 24
RING,STOPPER
€ 2.00
25
5118948530
ref: 25
CAP,FRONT FORK
€ 10.00
26-1
5141026500291
ref: 26-1
STEM, STEERING (BLACK)
€ 60.00
26-2
NOTUSED
ref: 26-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
27
5162133001
ref: 27
RACE,STEERING OUTER LWR
€ 10.00
28
5131126500291
ref: 28
HEAD, STEERING STEM
€ 124.50
29
5135646030
ref: 29
WASHER(10.5X30X2.3)
€ 5.00
30
5135246030
ref: 30
BOLT
€ 6.00
31
0110710358
ref: 31
BOLT,M10X1.25X
€ 2.50
32
0832121108
ref: 32
LOCK WASHER
€ 2.00
33
5145127431
ref: 33
BOLT
€ 4.50
34
0832121108
ref: 34
LOCK WASHER
€ 2.00
35
0832211108
ref: 35
WASHER
€ 2.50
36
5145526500
ref: 36
CLIP
€ 0.00
37-1
5621148500291
ref: 37-1
MODEL Z
HOLDER,HANDLEBAR
€ 20.50
37-2
5621148500019
ref: 37-2
MODEL D
HOLDER, HANDLE (BLACK)
€ 20.50
37-3
562114850007P
ref: 37-3
MODEL D
HOLDER, HANDLE (RED)
€ 20.50
37-4
562114850008Y
ref: 37-4
MODEL D
HOLDER, HANDLE (BLUE)
€ 20.50
37-5
5621148500163
ref: 37-5
MODEL D
HOLDER, HANDLE (YELLOW)
€ 20.50
38
0910608004
ref: 38
BOLT 8X35
€ 4.00
39
0832121088
ref: 39
LOCK WASHER
€ 2.00
40
5145548500
ref: 40
CLIP
€ 0.00
41
5145248500
ref: 41
CLIP
€ 6.00
42
0832221068
ref: 42
WASHER
€ 2.00
43
0832121068
ref: 43
LOCK WASHER
€ 2.50
44
0211206128
ref: 44
SCREW 6X12
€ 2.00
45
0211204168
ref: 45
SCREW
€ 1.00
46
0832121048
ref: 46
LOCK WASHER
€ 2.00
47
5145246040
ref: 47
CLIP,FR BRAKE CABLE
€ 5.50
