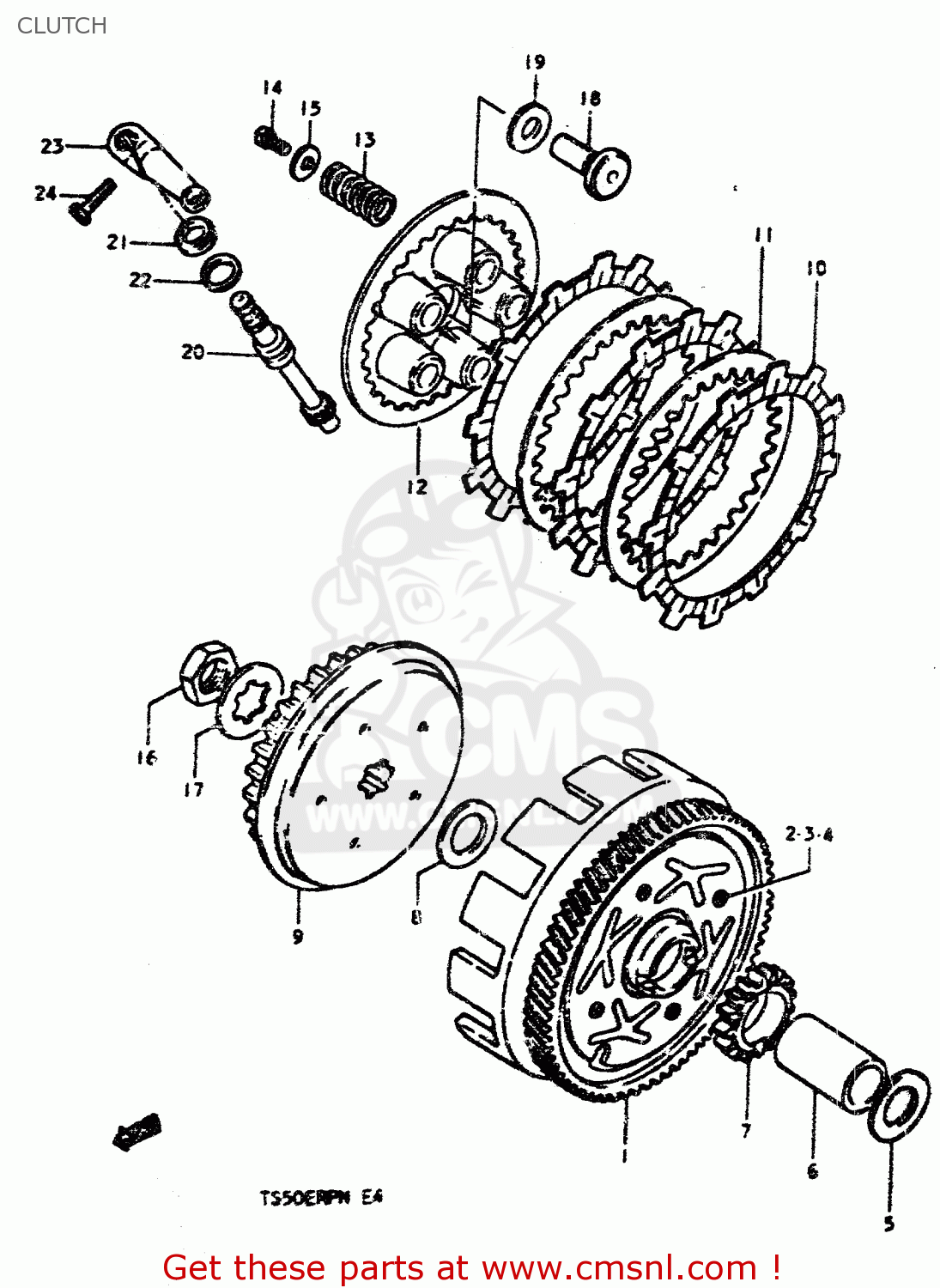

CLUTCH

ref

part #

description

quantity

1

2120046000
ref: 1
NT:73

GEAR ASSEMBLY,PRIMARY DRIVE

€ 154.00

2

2123125040
ref: 2

DAMPER,PRIMARY DRIVEN GEAR

€ 3.50

3

2124125301
ref: 3

PLATE

€ 10.50

4

05189
ref: 4

RIVET

€ 0.00

5

0831117301
ref: 5

THRUST WASHER

€ 0.00

6

0918017045
ref: 6

SPACER

€ 12.50

7

2628146000
ref: 7

GEAR,KICK STARTER DRIVE

€ 48.00

8

0821117282
ref: 8
17X28X1.5

WASHER

€ 3.00

9

2141146100
ref: 9

HUB,CLUTCH SLEEVE

€ 83.00

10

2144128300
ref: 10

PLATE,CLUTCH DRIVE

€ 8.50

11

2145128000
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

12

2146246000
ref: 12

DISC,CLUTCH PRESSURE

€ 19.50

13

0944015008
ref: 13

SPRING

€ 2.00

14

0910005002
ref: 14

BOLT(5X16)

€ 2.00

15

0916005017
ref: 15

WASHER (5.5X16X1.2)

€ 2.50

16

0914016001
ref: 16

NUT

€ 4.50

17

0916717002
ref: 17

WASHER,LOCK

€ 2.00

18

2316546000
ref: 18

RACK,CLUTCH RELEASE

€ 20.00

19

0926310002
ref: 19

BEARING(10X22X2.8)

€ 8.50

20

2326141301
ref: 20

PINION,CLUTCH RELEASE

€ 27.50

21

0928510002
ref: 21

OIL SEAL

€ 3.50

22

0916012035
ref: 22

WASHER (12X17X1)

€ 2.00

23

2327146000
ref: 23

ARM,CLUTCH RELEASE

€ 14.50

24

0110706168
ref: 24

BOLT, UPPER

€ 3.00
