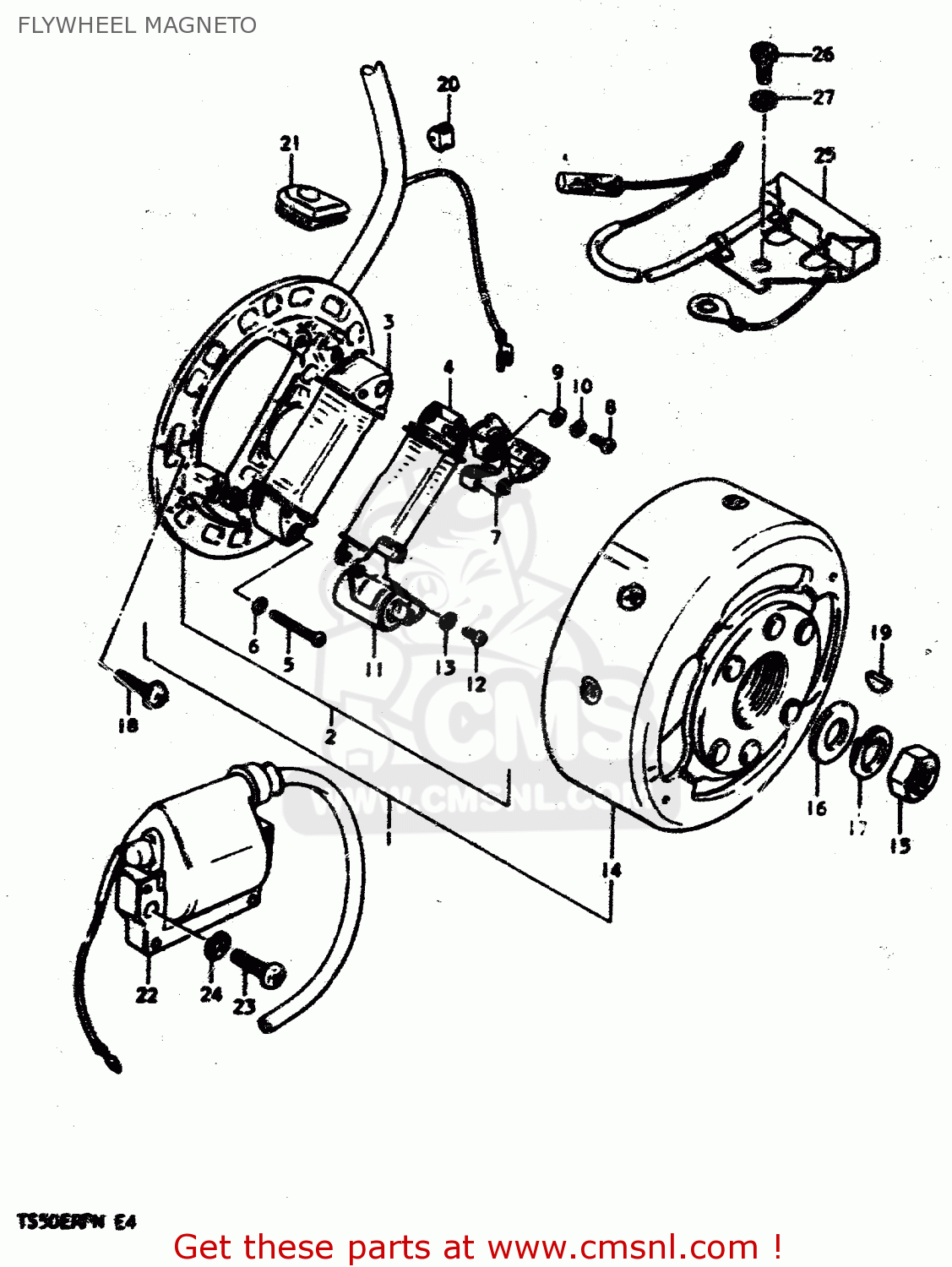

FLYWHEEL MAGNETO

ref

part #

description

quantity

1

3210043013
ref: 1

MAGNETO ASSY

€ 96.50

2

3210143013
ref: 2

STATOR ASSY

€ 96.50

3

3212043013
ref: 3

COIL, LIGHTING

€ 26.50

4

3214048010
ref: 4

COIL,PRIMARY

€ 60.50

5

0211104308
ref: 5

SCREW

€ 1.50

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7

3224043012
ref: 7

POINT ASSY,CONTACT

€ 18.50

8

0912504001
ref: 8

SCREW(4X10)

€ 4.50

9

0832221048
ref: 9

WASHER

€ 2.00

10

0832121048
ref: 10

LOCK WASHER

€ 2.00

11

3234143012
ref: 11

CONDENSER

€ 12.50

12

0211204088
ref: 12

SCREW

€ 1.50

13

0832121048
ref: 13

LOCK WASHER

€ 2.00

14

3210243013
ref: 14

ROTOR ASSY

€ 133.50

15

0914010003
ref: 15

NUT (10MM)

€ 3.50

16

0832221108
ref: 16

WASHER

€ 2.50

17

0832121108
ref: 17

LOCK WASHER

€ 2.00

18

0913905011
ref: 18

SCREW(5X14)

€ 3.00

19

0834131039
ref: 19

KEY

€ 2.00

20

3274232021
ref: 20

GROMMET,NEUTRAL LEAD WIRE

€ 2.50

21

0930909006
ref: 21

GROMMET

€ 2.50

22

3341043010
ref: 22

COIL ASSEMBLY,IGNITION

€ 89.50

23

0211206258
ref: 23

SCREW

€ 2.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

3651046300
ref: 25

RESISTOR ASSY

€ 0.00

26

0211206108
ref: 26

SCREW

€ 1.50

27

0832121068
ref: 27

LOCK WASHER

€ 2.50
