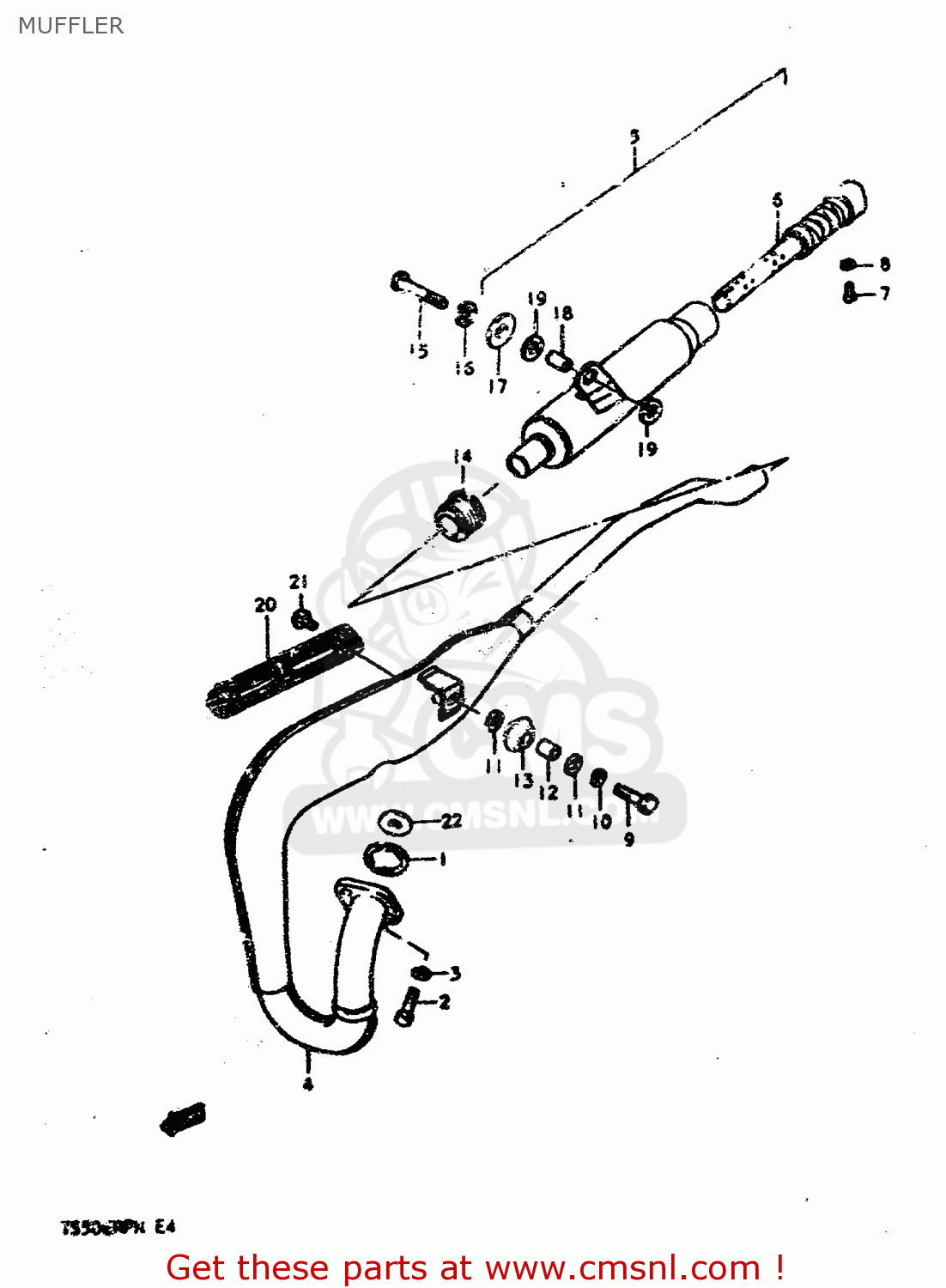

MUFFLER

ref

part #

description

quantity

1

1418105010
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 6.50

2

0110706208
ref: 2

BOLT

€ 2.00

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

1431026510
ref: 4

MUFFLER, 1ST

€ 318.50

5

1430326510
ref: 5

MUFFLER, 2ND

€ 115.00

6

1451046520
ref: 6

PIPE, BAFFLE

€ 26.00

7

0912805004
ref: 7

BOLT(5X8)

€ 2.00

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

0110708308
ref: 9

BOLT (8X30)

€ 2.50

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

0916008005
ref: 11

WASHER

€ 2.50

12

0918008048
ref: 12

SPACER (8X12X15)

€ 3.50

13

1477230500
ref: 13

DAMPER,MUFFLER,FR

€ 3.00

14

1477148001
ref: 14

CONNECTOR,MUFFLER

€ 8.00

15

0110708258
ref: 15

BOLT

€ 2.50

16

0832121088
ref: 16

LOCK WASHER

€ 2.00

17

0916008005
ref: 17

WASHER

€ 2.50

18

0918008050
ref: 18

SPACER (8.6X13.8X9)

€ 2.50

19

0932014006
ref: 19

CUSHION

€ 3.50

20

1478126500
ref: 20

COVER, MUFFLER

€ 51.50

21

0211206088
ref: 21

SCREW

€ 2.00

22

1415926510
ref: 22

PLATE, EXHAUST PIPE

€ 0.00
