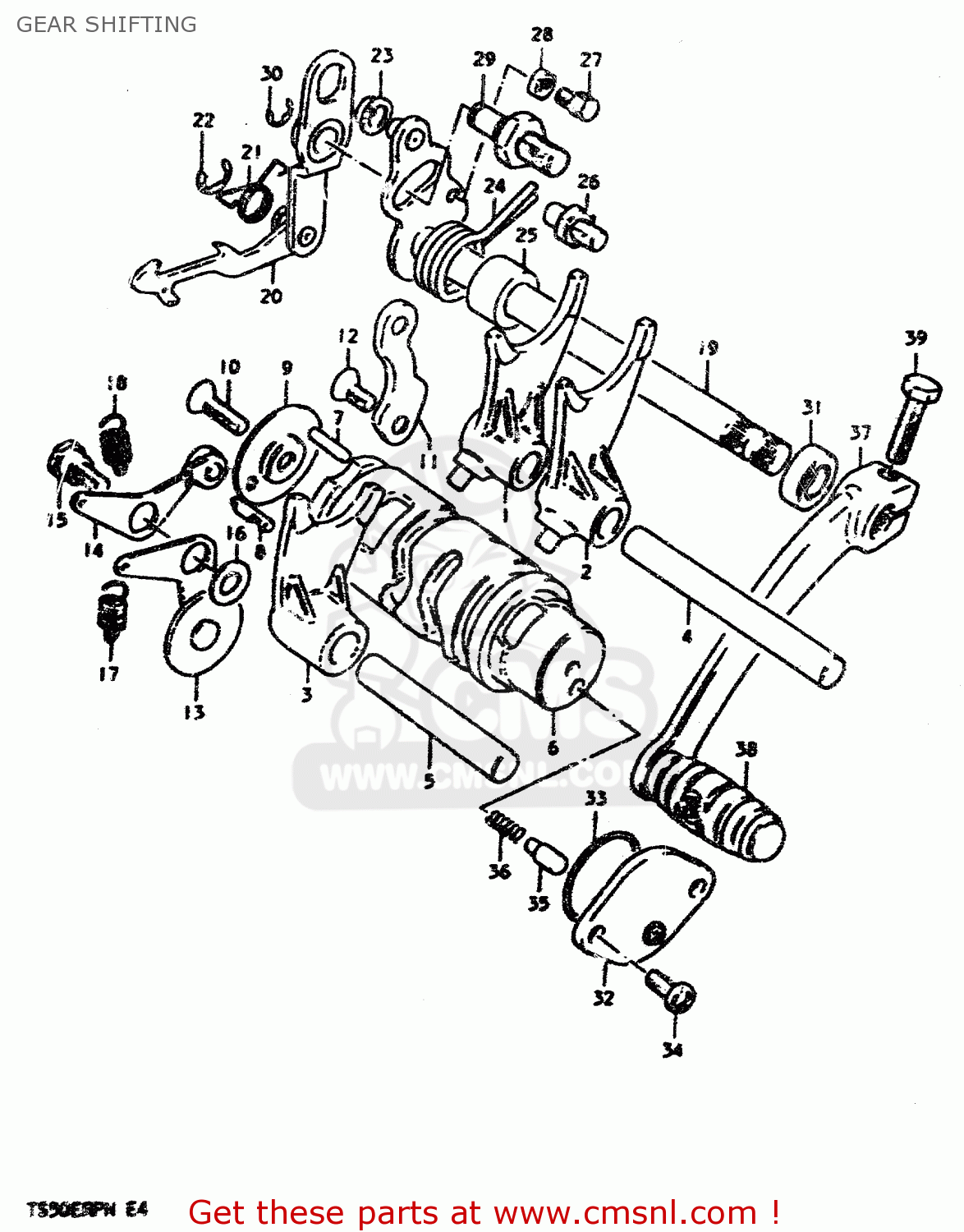

GEAR SHIFTING

ref

part #

description

quantity

1

2521146002
ref: 1

FORK,GEAR SHIFT NO.1

€ 38.50

2

2522146000
ref: 2

FORK,GEAR SHIFT NO.2

€ 20.00

3

2523146001
ref: 3

FORK,GEAR SHIFT NO.2

€ 29.50

4

2541140000
ref: 4

SHAFT,GEAR SHIFT FORK

€ 14.00

5

2542140000
ref: 5

SHAFT,GEAR SHIFT FORK

€ 19.00

6

2531146000
ref: 6

CAM,GEAR SHIFT

€ 59.00

7

0926104009
ref: 7

PIN(4X15.8)

€ 1.50

8

0920904015
ref: 8

PIN

€ 2.50

9

2532246000
ref: 9

RETAINER,GEAR SHIFT CAM DR PIN

€ 5.50

10

0212206208
ref: 10

SCREW

€ 2.00

11

2534146000
ref: 11

GUIDE,GEAR SHIFT CAM

€ 6.00

12

0212206128
ref: 12

SCREW

€ 3.00

13

2535046000
ref: 13

STOPPER,GEAR SHIFT CAM

€ 7.00

14

2539046001
ref: 14

STOPPER,GEAR SHIFT CAM NEUTRAL

€ 9.00

15

0911106020
ref: 15

BOLT(6X18.3)

€ 2.00

16

0832221068
ref: 16

WASHER

€ 2.00

17

0944308017
ref: 17

SPRING

€ 2.00

18

0944310017
ref: 18

SPRING

€ 2.00

19

2551046301
ref: 19

SHAFT, GEAR SHIFTING

€ 34.50

20

2551346004
ref: 20

PAWL,GEAR SHIFTING

€ 16.50

21

0944813006
ref: 21

SPRING

€ 2.00

22

0833211078
ref: 22

E RING

€ 2.00

23

0918007014
ref: 23

SPACER(7X10X5)

€ 4.00

24

0944426016
ref: 24

SPRING

€ 4.00

25

0918012068
ref: 25

SPACER(12X20X15.3)

€ 3.00

26

2567101000
ref: 26

STOPPER,GEAR SHIFT CAM

€ 3.00

27

2567346000
ref: 27

BOLT,GEAR SHAFT RETURN SPR SET

€ 4.00

28

0831022068
ref: 28

NUT 6MM

€ 2.50

29

2567246001
ref: 29

STOPPER,GEAR SHIFT CAM

€ 4.50

30

0833211068
ref: 30

E RING 6MM

€ 2.00

31

0928512002
ref: 31

OIL SEAL

€ 7.00

32

3772029350
ref: 32

BODY,GEAR SHIFT SWITCH

€ 10.50

33

0928026003
ref: 33

O-RING (D:2.4 ID:26.2)

€ 2.50

34

0211205128
ref: 34

SCREW

€ 2.50

35

0920905011
ref: 35

PIN(5X15.5)

€ 2.00

36

0944004010
ref: 36

SPRING

€ 1.50

37

2560046300
ref: 37

LEVER ASSY,GEA

€ 71.00

38

2565216500
ref: 38

RUBBER,GEAR SHIFT PEDAL

€ 4.00

39

0910006091
ref: 39

BOLT

€ 2.00

all assemblies
