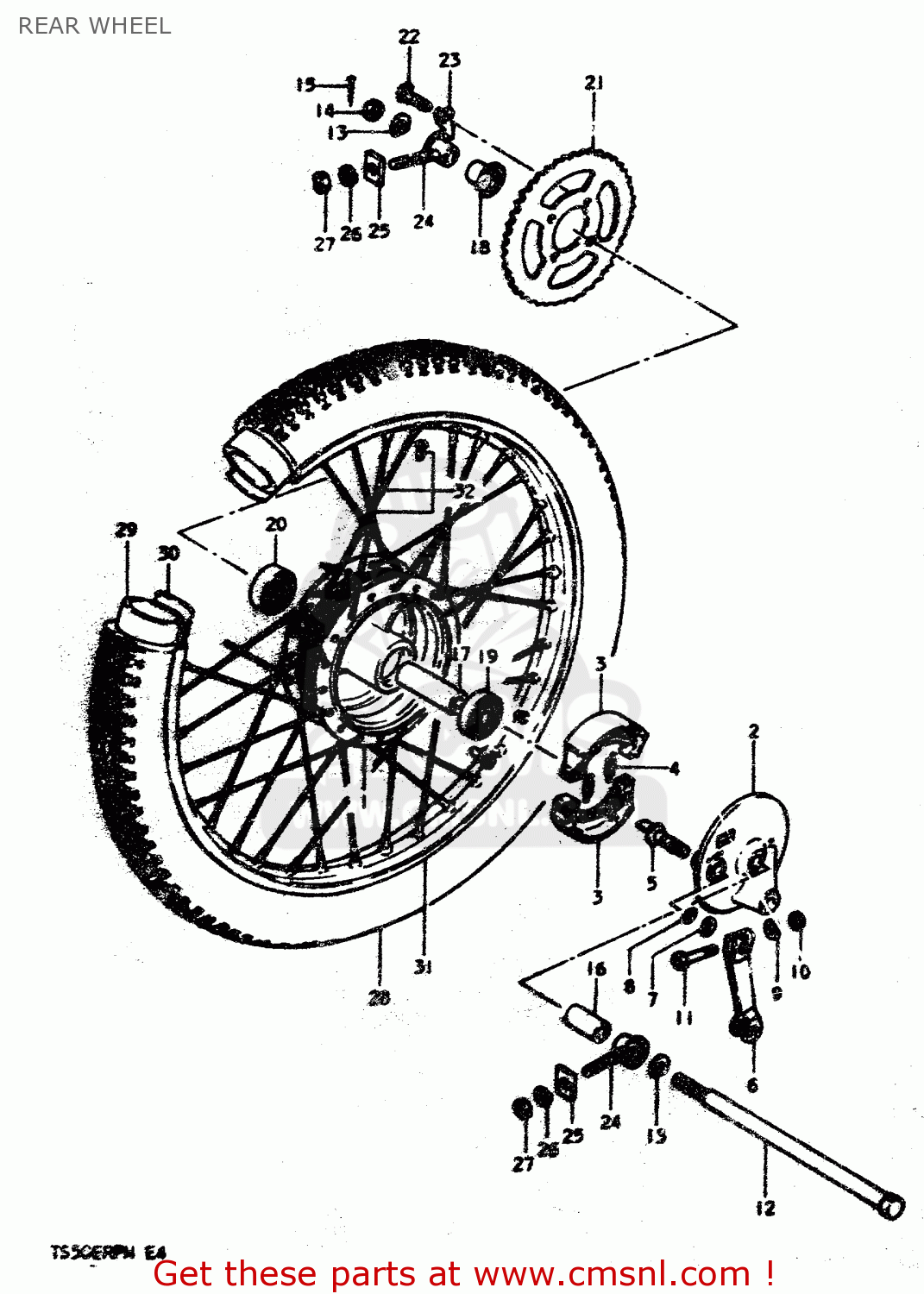

REAR WHEEL

ref

part #

description

quantity

1

6411046201
ref: 1

DRUM, REAR HUB

€ 66.50

2

6421046022
ref: 2

PANEL,REAR BRAKE ANCHOR

€ 66.00

3

5441001005
ref: 3

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129301
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445148000
ref: 6

LEVER,RR BRAKE CAM

€ 32.50

7

0916014001
ref: 7
12.5X20X1

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006078
ref: 11
6X31

BOLT(6X33)

€ 2.50

12

6471126500
ref: 12

AXLE,RR

€ 27.50

13

6471226500
ref: 13

WASHER,RR AXLE

€ 8.50

14

0831431128
ref: 14

NUT 12MM

€ 2.00

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0918012085
ref: 16

SPACER, AXLE RH

€ 5.00

17

0918012078
ref: 17

SPACER(12.6X19X91)

€ 7.00

18

6475046700
ref: 18

SPACER, REAR AXLE LH

€ 6.50

19

0814363017
ref: 19

BEARING

€ 14.50

20

0812363017
ref: 20

BEARING

€ 13.50

21

6451146240
ref: 21

SPROCKET, REAR (NT:47)

€ 52.00

22

0910008140
ref: 22

BOLT(8X25)

€ 2.00

23

0916908011
ref: 23

WASHER

€ 2.50

24

6141026500
ref: 24

ADJUSTER, CHAIN

€ 9.00

25

6142126501
ref: 25

ADJUSTER,CHAIN

€ 4.00

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0831012088
ref: 27

NUT

€ 2.00

28

6510046770
ref: 28
3.00-17

TIRE (3.00-17)

€ 0.00

29

6520009210
ref: 29
3.00-17

TUBE,INNER (IRC)

€ 0.00

30

5526101010
ref: 30

PROTECTOR,WHEEL,INNER

€ 3.50

31

6531146730
ref: 31
6X17

RIM,RR WHEEL(17X1.60)

€ 78.00

32

6530003817
ref: 32

SPOKE SET,REAR

€ 46.00
