REAR FENDER
TS50ERPD 1979 (N)

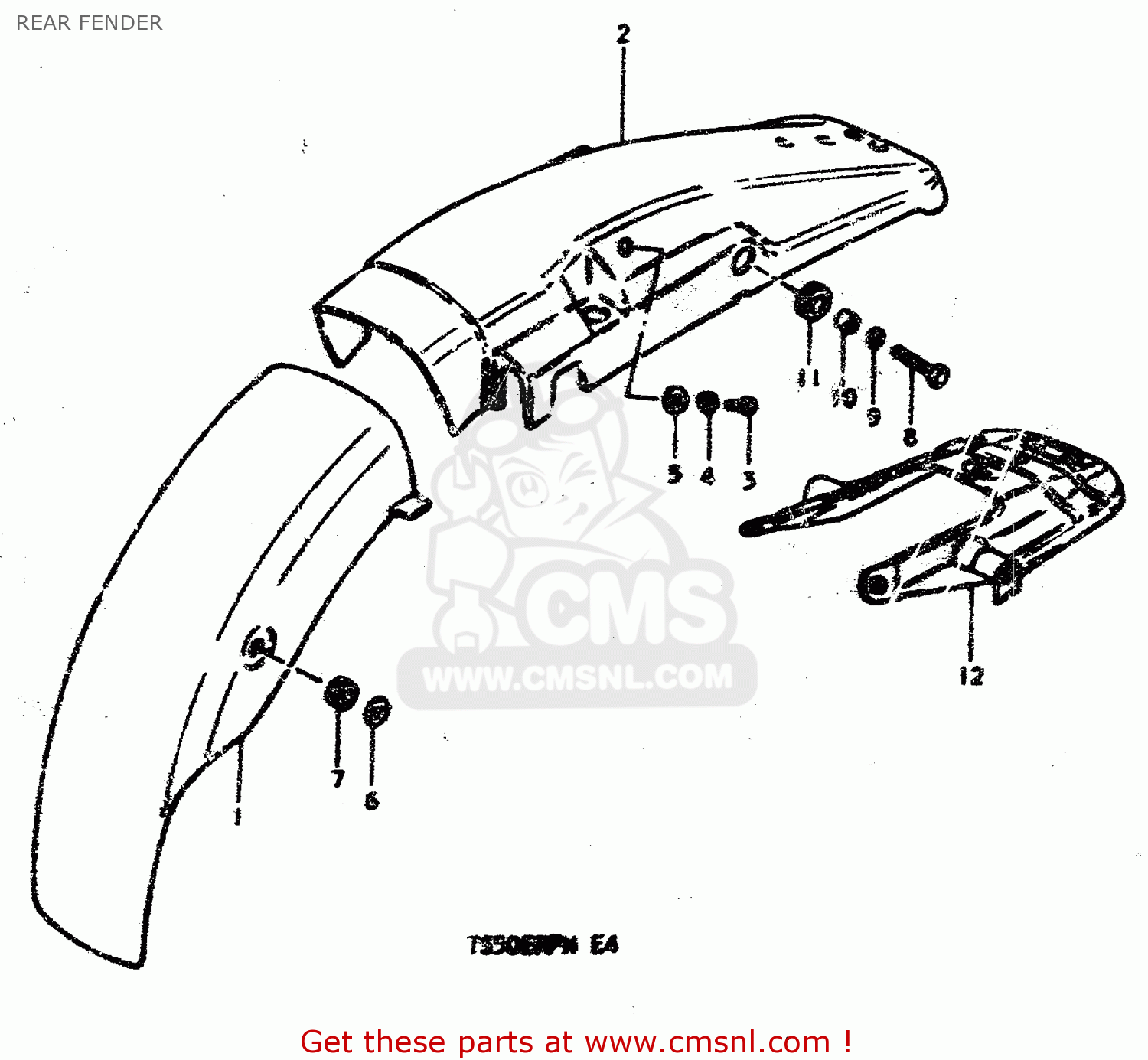

Rear fender diagram TS50ERPD 1979 (N)
REAR FENDER TS50ERPD 1979 (N)
×
prices are in EUR
ref
part #
description
quantity
1
6311239102
ref: 1
BODY, REAR FENDER FRONT
€ 37.00
2-1
631132650007P
ref: 2-1
BODY, REAR FENDER REAR
€ 108.50
2-2
631132650008Y
ref: 2-2
BODY, REAR FENDER REAR
€ 108.50
2-3
6311326500189
ref: 2-3
BODY, REAR FENDER REAR
€ 0.00
2-4
631132650003K
ref: 2-4
DW
BODY, REAR FENDER, REAR
€ 0.00
2-5
631132650005K
ref: 2-5
BODY, REAR FENDER FRONT
€ 0.00
3
0110706168
ref: 3
BOLT, UPPER
€ 3.00
4
0832121068
ref: 4
LOCK WASHER
€ 2.50
5
0916006020
ref: 5
WASHER
€ 2.00
6
0916006007
ref: 6
WASHER
€ 2.00
7
0932005006
ref: 7
CUSHION
€ 4.00
8
0110708558
ref: 8
BOLT 8X55
€ 3.00
9
0832121088
ref: 9
LOCK WASHER
€ 2.00
10
0918008021
ref: 10
SPACER (8.2X12X7.5)
€ 3.00
11
0932012011
ref: 11
CUSHION
€ 3.00
12
6312026500
ref: 12
REINFORCEMENT
€ 25.50
