CYLINDER

VL1500 INTRUDER 2003 (K3) USA (E03)

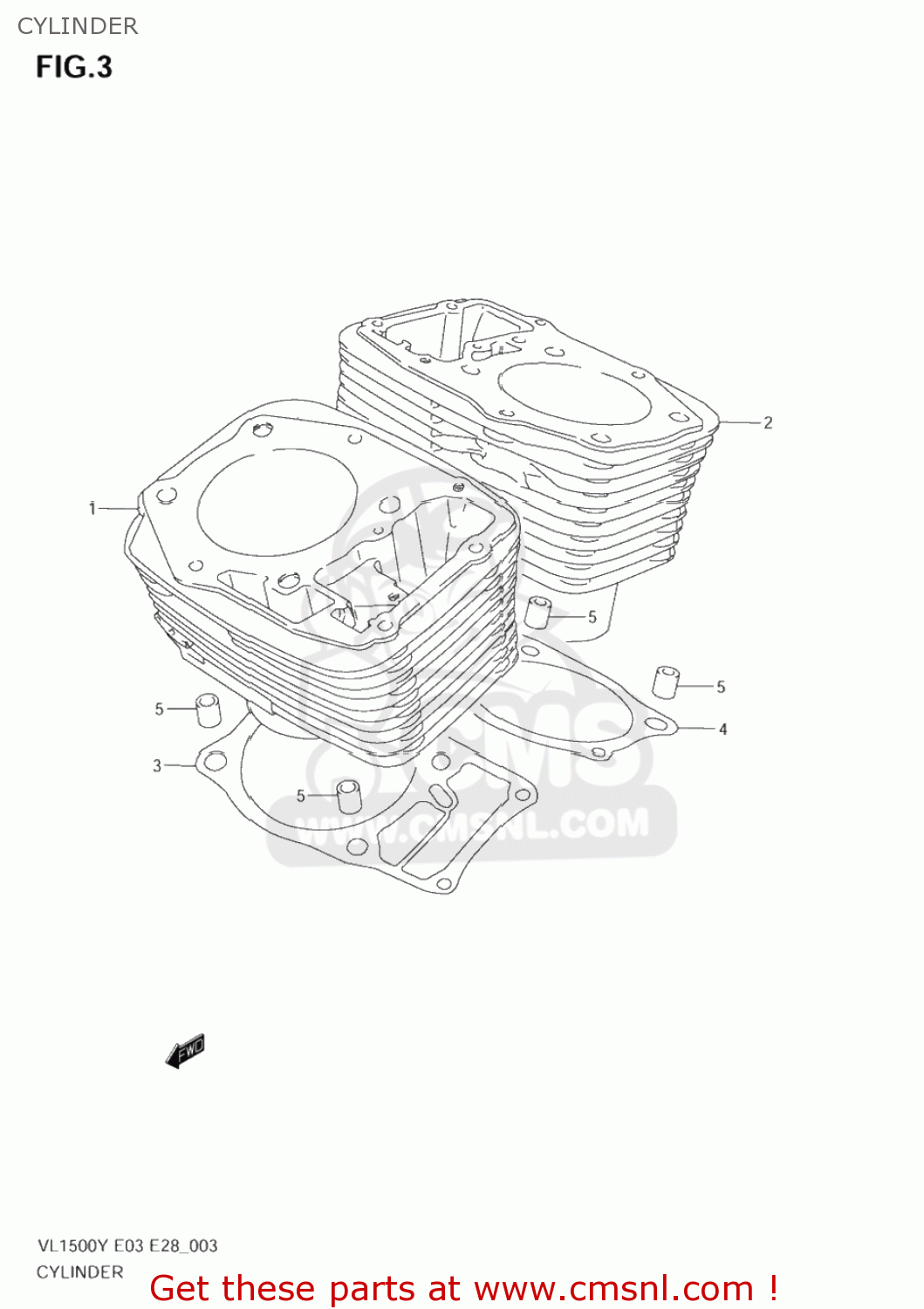

Cylinder diagram VL1500 INTRUDER 2003 (K3) USA (E03)

CYLINDER VL1500 INTRUDER 2003 (K3) USA (E03)
CYLINDER VL1500 INTRUDER 2003 (K3) USA (E03)
CYLINDER VL1500 INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1121110F100F0
ref: 1
CYLINDER,FR
€ 672.00
2
1122110F100F0
ref: 2
CYLINDER,RR
€ 736.00
3
1124110F00
ref: 3
GASKET,CYLINDER FR (NAS)
1124110F00
€ 14.00
4
1124210F00
ref: 4
GASKET,CYLINDER RR (NAS)
1124210F00
€ 14.00
5
0421113189
ref: 5
PIN
0421113189
€ 2.50
