FRONT CALIPER (MODEL X/Y/K1)

VL1500 INTRUDER 2003 (K3) USA (E03)

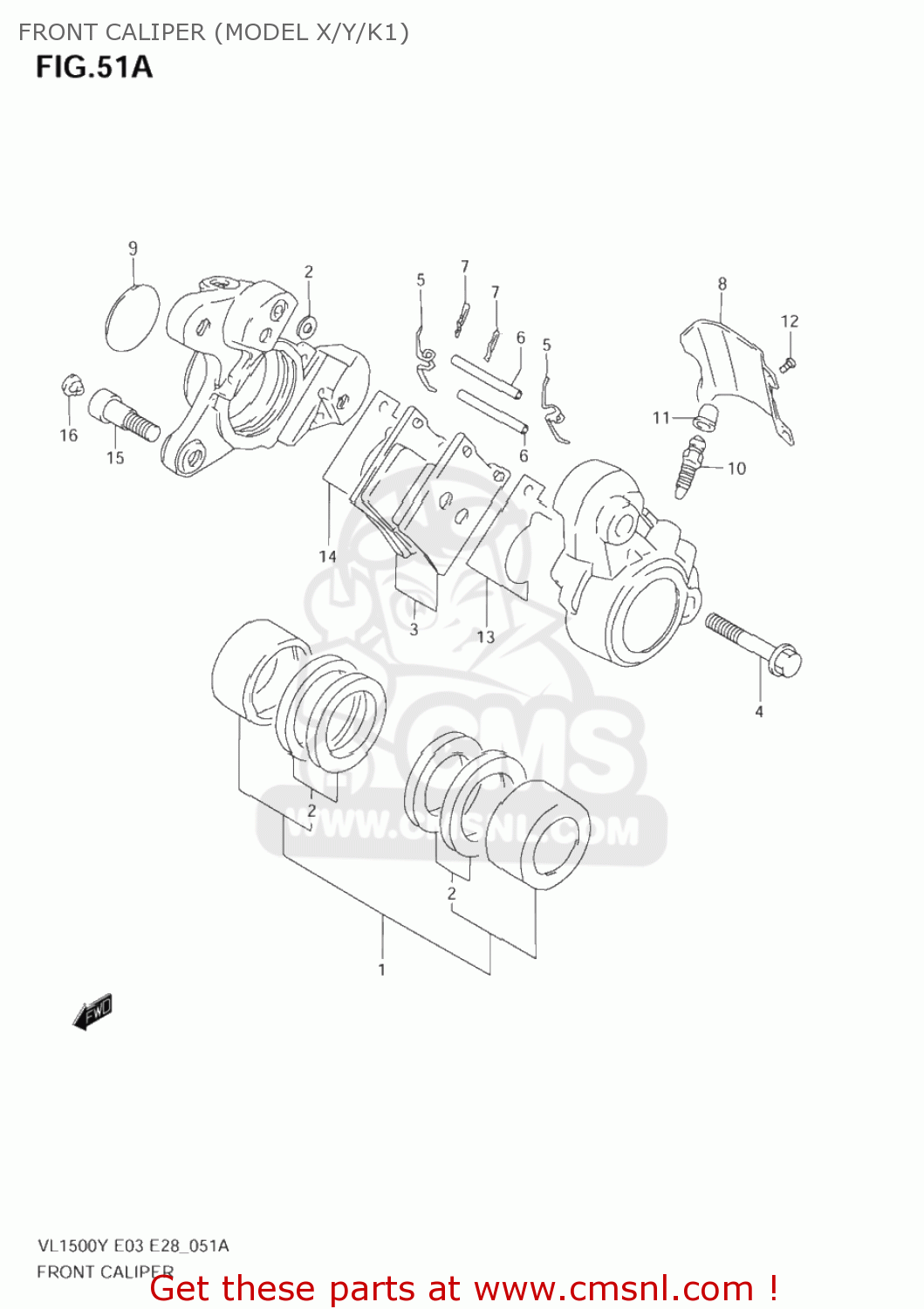

Front caliper (model x/y/k1) diagram VL1500 INTRUDER 2003 (K3) USA (E03)

FRONT CALIPER (MODEL X/Y/K1) VL1500 INTRUDER 2003 (K3) USA (E03)
FRONT CALIPER (MODEL X/Y/K1) VL1500 INTRUDER 2003 (K3) USA (E03)
FRONT CALIPER (MODEL X/Y/K1) VL1500 INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity

5910010F10
ref:
59100-38B11-999
CALIPER ASSEMBLY,FRONT,RIGHT
€ 626.00

5910010F10
ref:
59100-38B11-999
CALIPER ASSEMBLY,FRONT,RIGHT
€ 626.00
1
5910038811
ref: 1
PISTON SET
5910038811
€ 154.50
2
5910038840
ref: 2
SEAL SET,PISTON
5910038840
€ 30.50
3
5910010810
ref: 3
59100-10811
PAD SET (NAS)
5910010810
€ 45.50
4
5914516700
ref: 4
BOLT,HOUSING
5914516700
€ 8.00
5
5914316700
ref: 5
SPRING
5914316700
€ 7.50
6
6914145000
ref: 6
PIN,PAD
6914145000
€ 6.50
7
6914245000
ref: 7
CLIP,PAD PIN
6914245000
€ 4.50
8
5915138B01
ref: 8
COVER,CALIPER HOUSING,DUST
5915138B01
€ 58.00
9
5915224A00
ref: 9
CAP,CALIPER
5915224A00
€ 23.50
10
5912118410
ref: 10
BLEEDER
5912118410
€ 8.00
11
5515666310
ref: 11
CAP,BLEEDER PLUG
5515666310
€ 6.00
12
5915338B10
ref: 12
SCREW,CALIPER COVER(4X6)
5915338B10
€ 7.50
13
5937120C00
ref: 13
SHIM,INNER
5937120C00
€ 7.50
14
5938120C00
ref: 14
SHIM,OUTER
5938120C00
€ 7.50
15
0910610038
ref: 15
BOLT(10X33)
0910610038
€ 4.50
16
0925008014
ref: 16
CAP(OD:12)
0925008014
€ 3.50
