FUEL TANK
VL1500 INTRUDER 2003 (K3) USA (E03)

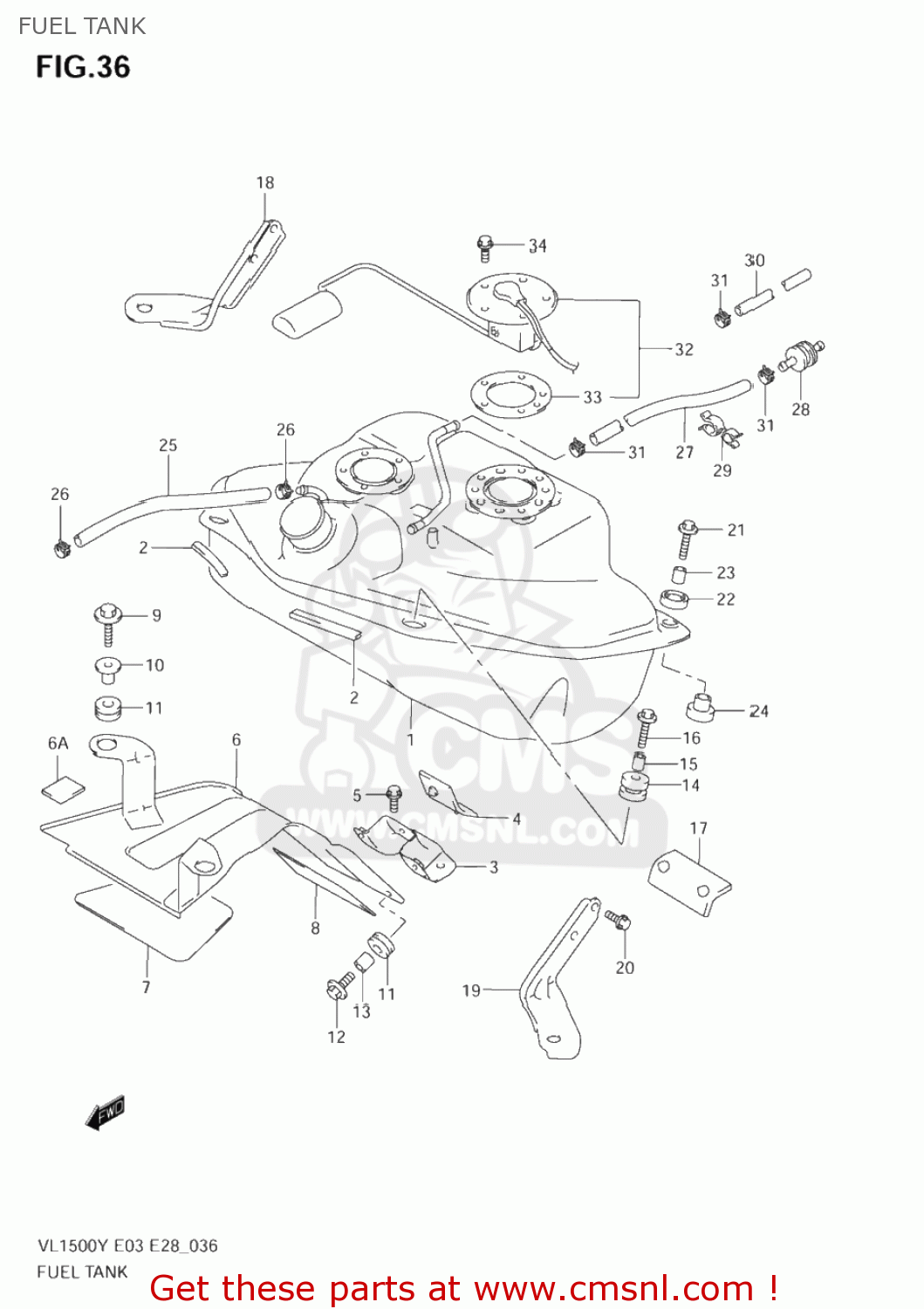

Fuel tank diagram VL1500 INTRUDER 2003 (K3) USA (E03)
FUEL TANK VL1500 INTRUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4411010F00
ref: 1-1
TANK,FUEL
€ 521.00
1-2
4411010F10
ref: 1-2
TANK COMP,FUEL
€ 513.00
2
6824104X5000B
ref: 2
MOLDING
€ 23.00
3
4413010F00
ref: 3
BRACKET,FUEL TANK FR
€ 9.50
4
4451110F00
ref: 4
CUSHION,FUEL TANK FR
€ 7.00
5
0155006103
ref: 5
01550-0610A
BOLT
€ 2.50
6A
6154494500
ref: 6A
PAD
€ 2.00
6-1
4427010F00
ref: 6-1
44270-10F02
COVER COMP,FUEL TANK,FRONT
€ 48.50
6-2
4427010F01
ref: 6-2
44270-10F02
COVER,FUEL TANK,FRONT
€ 48.50
6-3
4427010F02
ref: 6-3
COVER,FUEL TANK FR
€ 48.50
7
4426710F00
ref: 7
SHIELD,FR COVER UPR
€ 8.50
8
4426810F00
ref: 8
SHIELD,FR COVER LWR
€ 7.00
9
0911606171
ref: 9
BOLT(6X30)
€ 2.50
10
0916906070
ref: 10
WASHER
€ 3.50
11
0932008001
ref: 11
CUSHION
€ 3.50
12
0911606115
ref: 12
BOLT(6X20)
€ 2.00
13
0918006248
ref: 13
SPACER(6.1X8X9.5)
€ 2.50
14
4451204F00
ref: 14
CUSHION,FUEL TANK SIDE
€ 3.00
15
0918006267
ref: 15
SPACER(6.5X9X12.5)
€ 3.00
16-1
0911606147
ref: 16-1
BOLT(6X25)
€ 4.00
16-2
0911606172
ref: 16-2
BOLT(6X30)
€ 2.50
17
4454110F00
ref: 17
CUSHION,FUEL TANK RR CTR
€ 7.50
18
4415010F00
ref: 18
BRACKET,FUEL TANK RR,R
€ 17.50
19
4416010F00
ref: 19
BRACKET,FUEL TANK RR,L
€ 19.50
20
0155006103
ref: 20
01550-0610A
BOLT
€ 2.50
21
0911606172
ref: 21
BOLT(6X30)
€ 2.50
22
0932014022
ref: 22
CUSHION
€ 4.00
23
0918006271
ref: 23
SPACER(6.5X9X18)
€ 2.00
24
0932010020
ref: 24
CUSHION
€ 4.00
25
0935511165600
ref: 25
HOSE(11X16X600)
€ 9.00
26
0940115404
ref: 26
CLIP
€ 2.50
27
0935554116600
ref: 27
HOSE(5.4X11.4X600)
€ 12.00
28
8545175100
ref: 28
VALVE,2WAY CHECK
€ 27.00
29
0940800140
ref: 29
CLAMP
€ 6.00
30
0935554116600
ref: 30
HOSE(5.4X11.4X600)
€ 12.00
30
0935554116600
ref: 30
HOSE(5.4X11.4X600)
€ 12.00
31
0940110409
ref: 31
CLIP
€ 2.50
32-1
3481010F00
ref: 32-1
GAUGE ASSY,FUEL LEVEL
€ 98.00
32-2
3481010F10
ref: 32-2
GAUGE ASSY,FUEL LEVEL
€ 120.00
33
3482545100
ref: 33
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
34
0911705003
ref: 34
01570-0510B
BOLT 5X10
€ 2.00
