FUEL CATCH TANK (MODEL W)

VL1500 INTRUDER 2003 (K3) USA (E03)

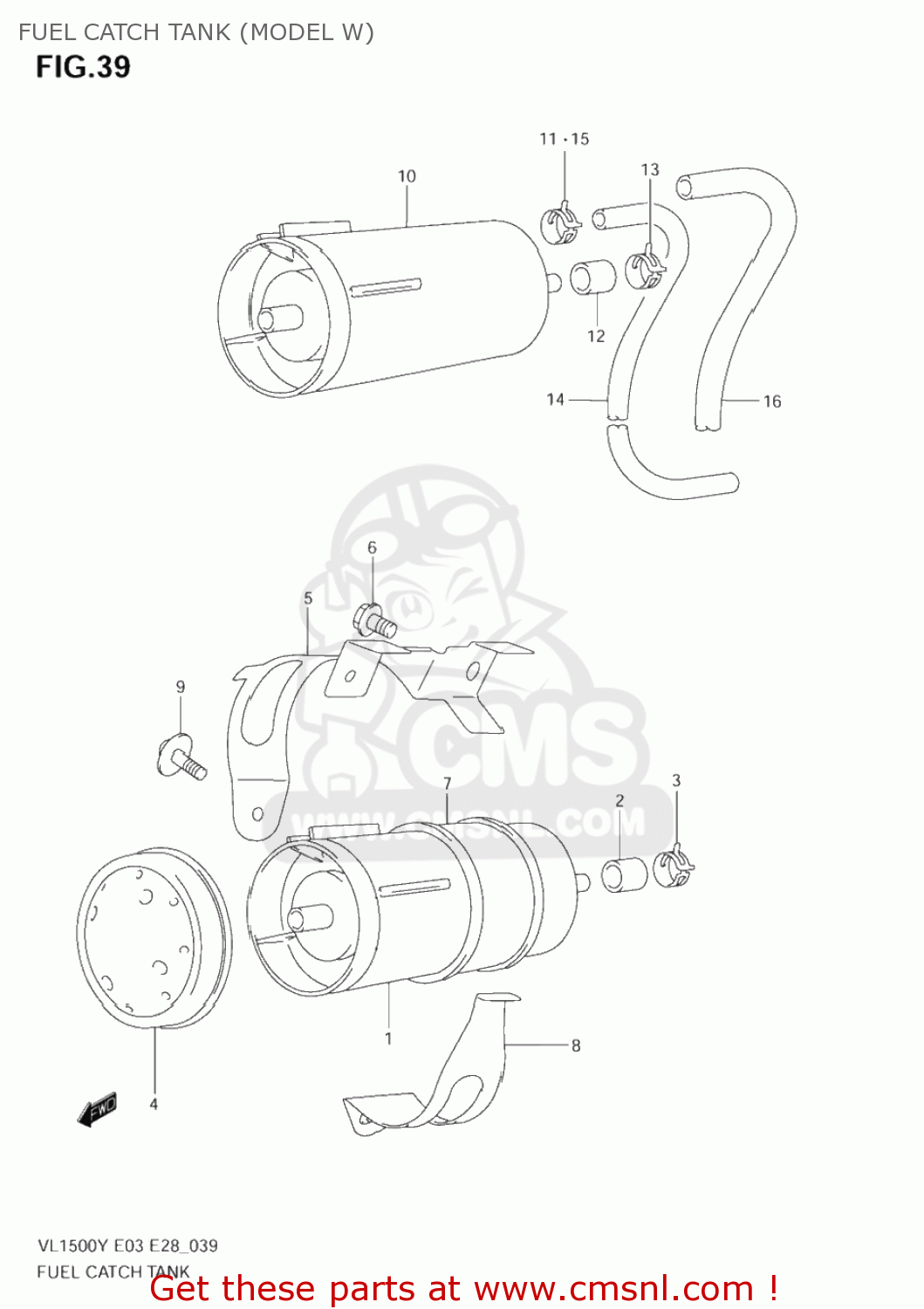

Fuel catch tank (model w) diagram VL1500 INTRUDER 2003 (K3) USA (E03)

FUEL CATCH TANK (MODEL W) VL1500 INTRUDER 2003 (K3) USA (E03)
FUEL CATCH TANK (MODEL W) VL1500 INTRUDER 2003 (K3) USA (E03)
FUEL CATCH TANK (MODEL W) VL1500 INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4439010F00
ref: 1
TANK,FUEL CATCH
4439010F00
€ 70.00
2
0925107003
ref: 2
CAP,OD:11.5
0925107003
€ 2.00
3
0940111407
ref: 3
09401-11415
CLIP
0940111407
€ 2.50
4
1721148E00
ref: 4
CAP,CANISTER
1721148E00
€ 14.50
5
4488110F00
ref: 5
BRACKET,CATCH TANK
€ 13.50
6
0911606168
ref: 6
BOLT(6X16)
0911606168
€ 2.50
7
4488326E00
ref: 7
CUSHION,CANISTER
€ 9.00
8
4488210F00
ref: 8
HOLDER,CATCH TANK
€ 7.00
9
0214206123
ref: 9
02142-0612A
SCREW 6X12
0214206123
€ 2.00
10
1721026E00
ref: 10
CANISTER ASSY,CHARCOAL
1721026E00
€ 261.50
11
0940111413
ref: 11
CLIP
0940111413
€ 2.50
12
0925107003
ref: 12
CAP,OD:11.5
0925107003
€ 2.00
13
0940111407
ref: 13
09401-11415
CLIP
0940111407
€ 2.50
14
4443310F00
ref: 14
HOSE,CANISTER & CARB PURGE
€ 0.00
15
0940110402
ref: 15
CLIP
0940110402
€ 7.00
16
0935114152600
ref: 16
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
