REAR FENDER (MODEL Y/K1/K2)

VL1500 INTRUDER 2003 (K3) USA (E03)

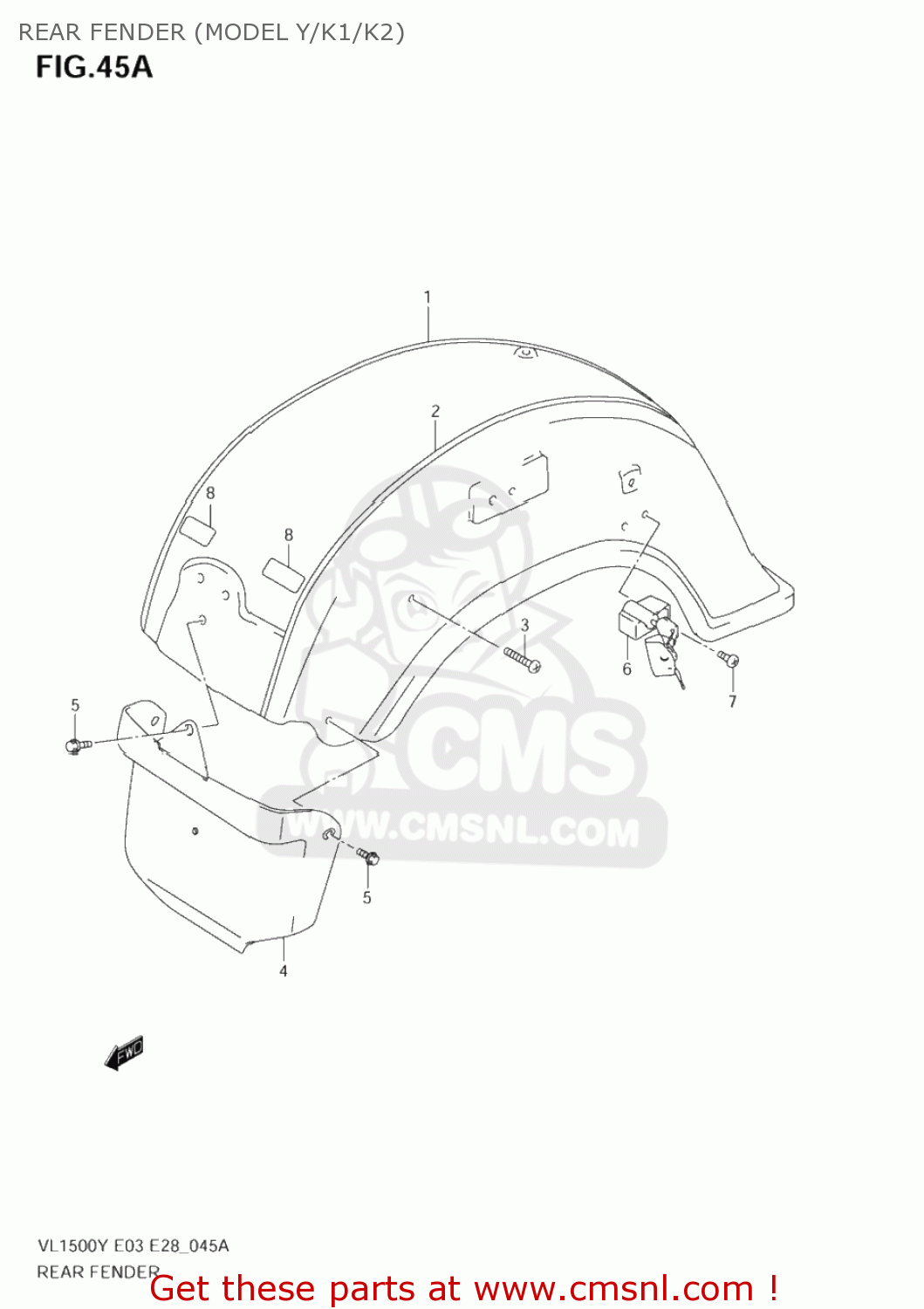

Rear fender (model y/k1/k2) diagram VL1500 INTRUDER 2003 (K3) USA (E03)

REAR FENDER (MODEL Y/K1/K2) VL1500 INTRUDER 2003 (K3) USA (E03)

REAR FENDER (MODEL Y/K1/K2) VL1500 INTRUDER 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311010F3033J
ref: 1-1
63110-10F31-33J

FENDER COMP,REAR

€ 933.00

1-2

6311010F30BU6
ref: 1-2

FENDER COMP,REAR

€ 0.00

1-3

6311010F30BU7
ref: 1-3
63110-10F31-BU7

FENDER COMP,REAR

€ 602.50

1-4

6311010F30FG1
ref: 1-4

FENDER, REAR

€ 0.00

1-5

6311010F30FG2
ref: 1-5

FENDER,RR

€ 0.00

1-6

6311010F302AX
ref: 1-6

FENDER,RR

€ 0.00

1-7

6311010F30JE2
ref: 1-7

FENDER,RR

€ 0.00

1-8

6311010F30JE3
ref: 1-8

FENDER,RR

€ 0.00

2-1

6817010F00BU8
ref: 2-1

TAPE SET,RR FENDER

€ 71.50

2-2

6817010F00BU9
ref: 2-2

TAPE SET,RR FENDER

€ 75.00

2-3

6817010F00BV1
ref: 2-3

TAPE SET,REAR FENDER

€ 88.00

2-4

6817010F00EZ7
ref: 2-4

TAPE SET,RR FENDER

€ 0.00

2-5

6817010F00EZ9
ref: 2-5

TAPE SET,RR FENDER

€ 0.00

2-6

6817010F00FH5
ref: 2-6

TAPE SET,RR FENDER

€ 75.00

2-7

6817010F00JE5
ref: 2-7

TAPE SET,RR FENDER

€ 104.00

2-8

6817010F00JE4
ref: 2-8

TAPE SET,RR FENDER

€ 75.00

3

0910608156
ref: 3

BOLT(8X37)

€ 8.50

4

6341110F01
ref: 4

MUDGUARD,RR FENDER FR

€ 24.00

5

0911306001
ref: 5

BOLT(6X16)

€ 3.00

6

9570010840
ref: 6
95700-10841

LOCK SET,HELMET

€ 83.00

7

0913906089
ref: 7

SCREW(6X14)

€ 2.50

8

6313110F00
ref: 8

TAPE,RR FENDER

€ 6.00
