STARTING MOTOR (MODEL K3/K4)

VL1500 INTRUDER 2003 (K3) USA (E03)

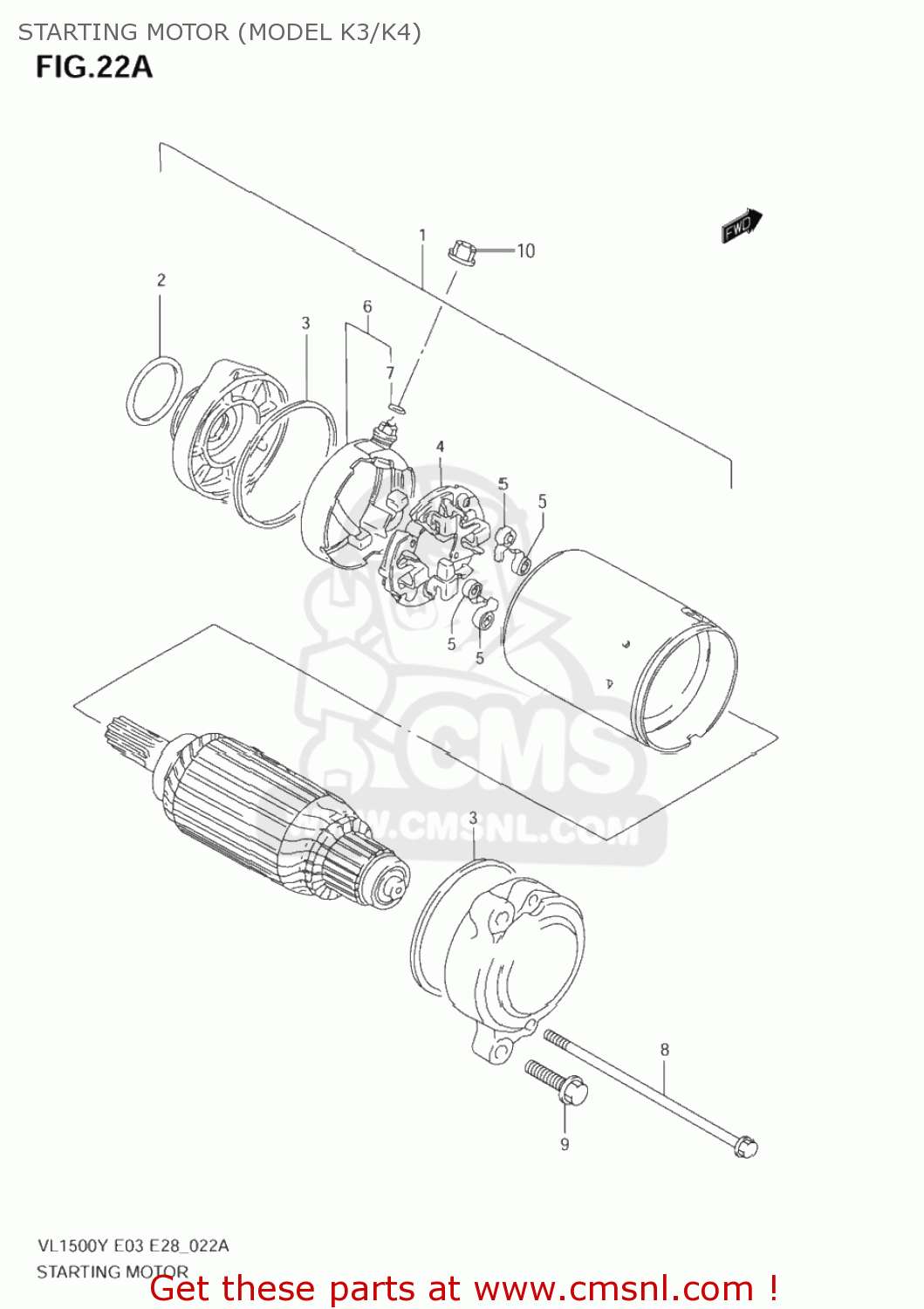

Starting motor (model k3/k4) diagram VL1500 INTRUDER 2003 (K3) USA (E03)

STARTING MOTOR (MODEL K3/K4) VL1500 INTRUDER 2003 (K3) USA (E03)
STARTING MOTOR (MODEL K3/K4) VL1500 INTRUDER 2003 (K3) USA (E03)
STARTING MOTOR (MODEL K3/K4) VL1500 INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3110010F00
ref: 1
31100-38B02
MOTOR ASSY,STARTING
€ 973.50
2
3115638B00
ref: 2
09280-35005
O-RING
€ 9.50
3
3126431300
ref: 3
31264-32E00
O RING
3126431300
€ 7.50
4
3113238B00
ref: 4
HOLDER SET,BRUSH
3113238B00
€ 45.00
5
3113538B00
ref: 5
SPRING,BRUSH
3113538B00
€ 3.50
6
3113038B00
ref: 6
TERMINAL SET,BRUSH
3113038B00
€ 45.00
7
3114349040
ref: 7
O RING
3114349040
€ 3.00
8
3128124B10
ref: 8
BOLT
3128124B10
€ 5.00
9-1
0154706257
ref: 9-1
BOLT
0154706257
€ 2.50
9-2
0910306212
ref: 9-2
BOLT(6X25)
0910306212
€ 2.50
10
0836135068
ref: 10
08361-3506A
NUT
0836135068
€ 2.00
