CLUTCH
VL1500B INTRUDER 2000 (Y) USA (E03)

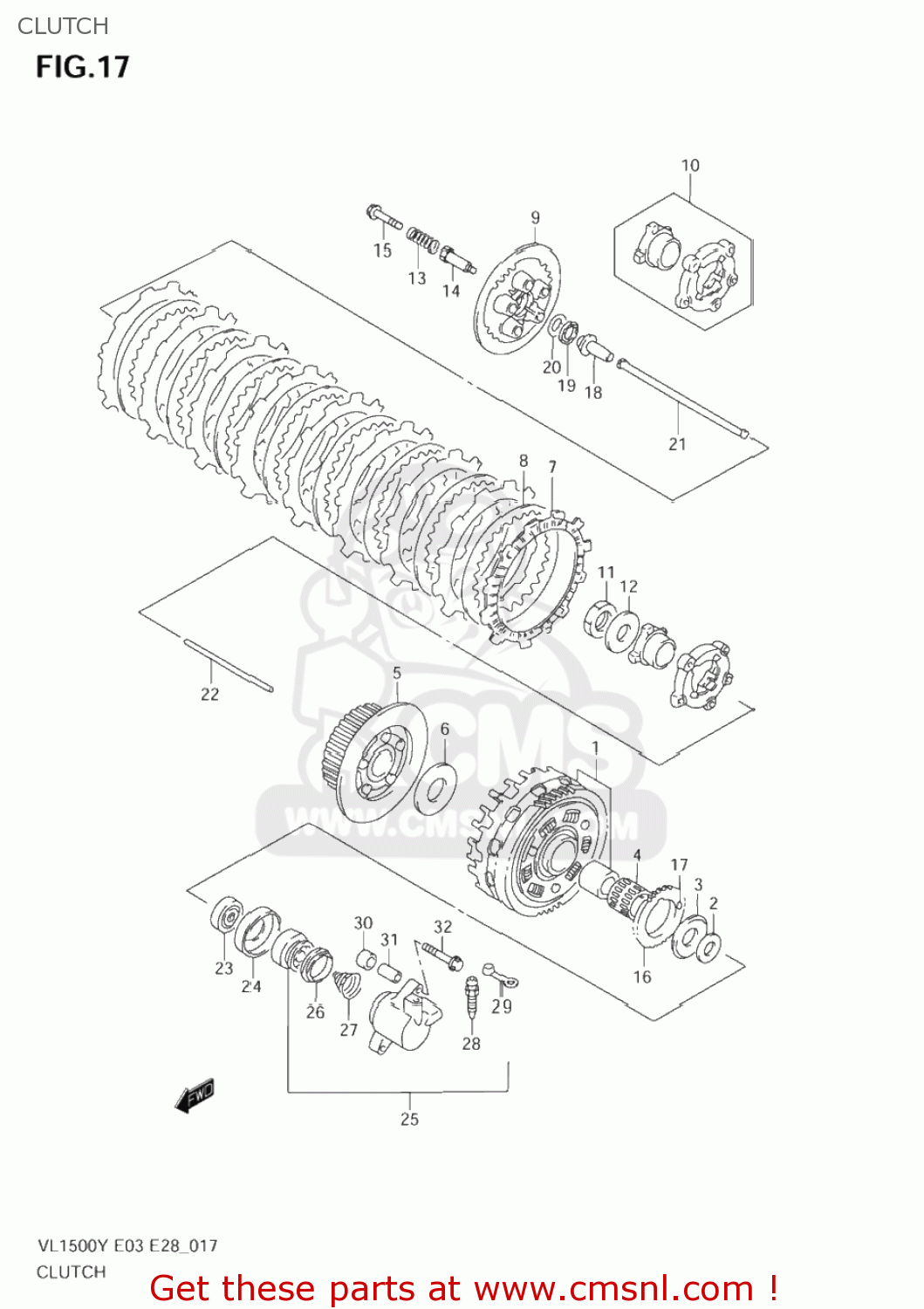

Clutch diagram VL1500B INTRUDER 2000 (Y) USA (E03)
CLUTCH VL1500B INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120010810
ref: 1
GEAR ASSY,PRI DRIVEN
€ 502.00
2
0916025066
ref: 2
WASHER(25X38X2.5)
€ 6.00
3
0916025037
ref: 3
WASHER(25X54X2.5)
€ 9.00
4
0926335017
ref: 4
BEARING(35X40X35.8)
€ 36.50
5
2141010F00
ref: 5
HUB,CLUTCH SLEEVE
€ 146.50
6
0916025056
ref: 6
WASHER(25X50X2.5)
€ 9.50
7
2144131D20
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 25.00
8
2145144B00
ref: 8
PLATE,CLUTCH DRIVEN NO.1 (NAS)
€ 7.00
9
2146210F00
ref: 9
DISC,CLUTCH PRESSURE
€ 56.50
10
2161010F00
ref: 10
CAM SET,CLUTCH
€ 211.50
11
0915924010
ref: 11
NUT
€ 11.00
12
0916424006
ref: 12
WASHER
€ 4.00
13-1
2141310F00
ref: 13-1
SPRING,CLUTCH
€ 7.00
13-2
2141310F10
ref: 13-2
SPRING,CLUTCH
€ 7.00
14
2141102F00
ref: 14
BOLT,CLUTCH SPRING SUPPORT
€ 9.00
15
2148213E00
ref: 15
BOLT,CLUTCH SPRING
€ 3.00
16
1632138B00
ref: 16
GEAR,OIL PUMP DRIVE
€ 62.50
17
0926106002
ref: 17
PIN(6X6)
€ 1.50
18
2312138B00
ref: 18
PIECE,CLUTCH PUSH
€ 25.00
19
0926315003
ref: 19
BEARING(15X28X2)
€ 7.00
20
0916015045
ref: 20
WASHER(15.5X28X1)
€ 4.00
21
2311038B00
ref: 21
ROD,CLUTCH PUSH,R
€ 19.00
22
2311124A01
ref: 22
ROD,CLUTCH PUSH,L
€ 15.00
23
0928506017
ref: 23
SEAL,OIL(6X34X11)
€ 11.00
24
2311738A00
ref: 24
RETAINER,CL PUSH ROD OIL SEAL
€ 6.00
25
2316010F00
ref: 25
CYLINDER,CLUTCH RELEASE
€ 122.50
26
2316310F00
ref: 26
CUP
€ 5.00
27
2316410F00
ref: 27
SPRING
€ 3.00
28
5912101A00
ref: 28
BLEEDER
€ 8.50
29
5912201A00
ref: 29
CAP,BLEEDER
€ 4.50
30
0918009019
ref: 30
09180-08208
SPACER(9X16X11)
€ 7.50
31
0920609011
ref: 31
PIN(6.4X9X23)
€ 7.50
32
0155006403
ref: 32
01550-0640A
BOLT
€ 2.00
