SECONDARY DRIVE GEAR
VL1500B INTRUDER 2000 (Y) USA (E03)

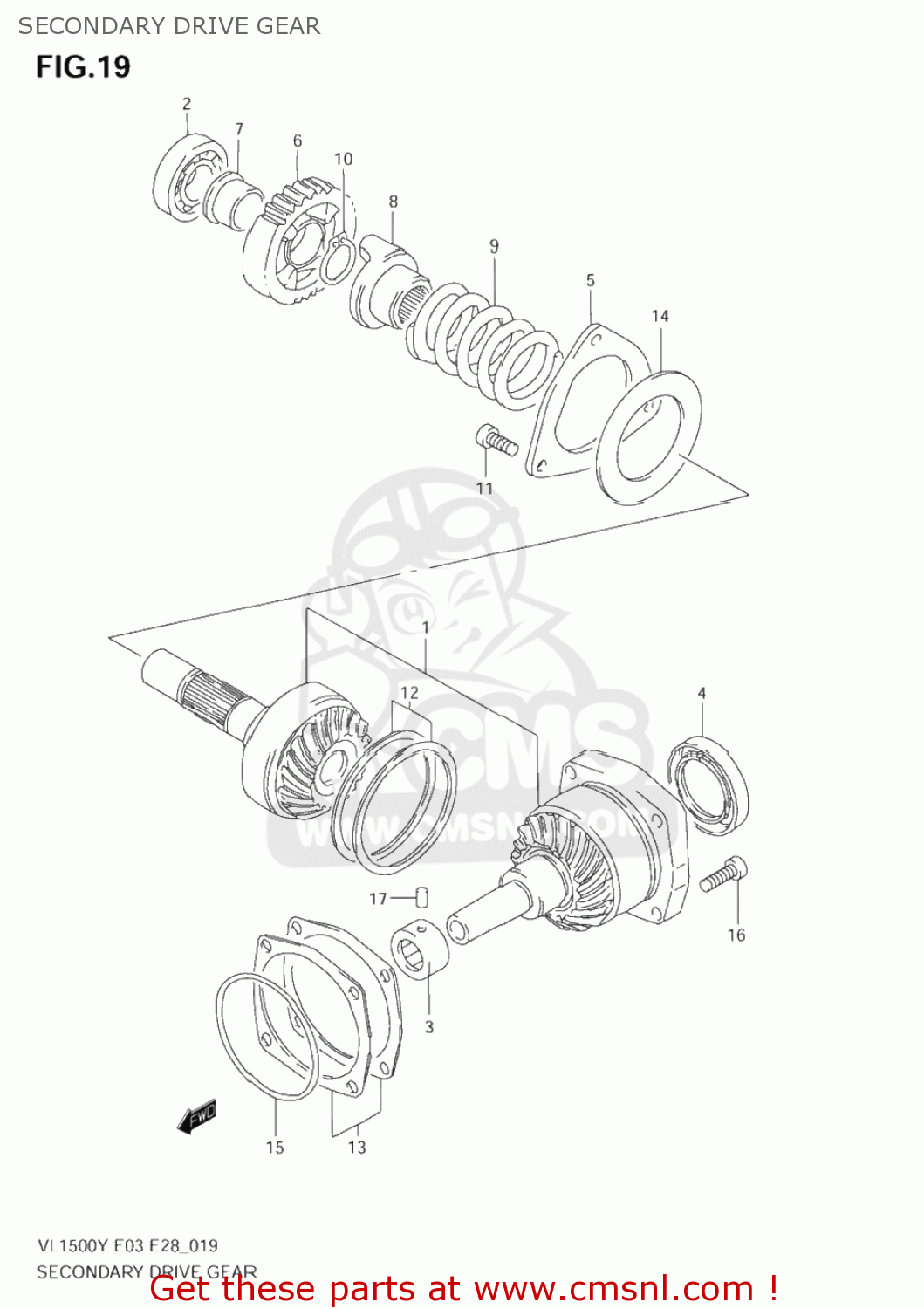

Secondary drive gear diagram VL1500B INTRUDER 2000 (Y) USA (E03)
SECONDARY DRIVE GEAR VL1500B INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2490010810
ref: 1
GEAR & HOUSING SET,SECONDARY
€ 965.00
2
0926225080
ref: 2
BEARING(25X62X17)
€ 21.50
3
0926320038
ref: 3
BEARING(20X34X16)
€ 30.50
4
0928344010
ref: 4
SEAL,OIL(44X68X8)
€ 51.00
5
2493138B00
ref: 5
STOPPER,SEC DRIVE BEARING
€ 39.00
6
2463138B00
ref: 6
GEAR,OVER DRIVING DRIVEN
€ 183.50
7
2463238B01
ref: 7
BUSHING,OD DRIVEN GEAR
€ 24.50
8
2492238B01
ref: 8
DOG,OUTPUT CAM
€ 43.50
9-1
0944057001
ref: 9-1
SPRING
€ 49.50
9-2
2492410F00
ref: 9-2
SPRING,SECONDARY DAMPER
€ 46.00
10
0833131266
ref: 10
CIRCLIP
€ 2.50
11
0713008203
ref: 11
07130-0820B
BOLT
€ 3.00
12
2493538820
ref: 12
SHIM SET,SEC DRIVE
€ 95.00
12
2493538820
ref: 12
SHIM SET,SEC DRIVE
€ 95.00
13
2494538810
ref: 13
SHIM SET,SEC DRIVEN
€ 33.00
14
0916057001
ref: 14
WASHER(57X90X3)
€ 17.00
15
0928078003
ref: 15
O RING(D:3.7,ID:76.5)
€ 6.00
16
0713008253
ref: 16
07130-0825B
BOLT
€ 3.50
17
0422107129
ref: 17
PIN
€ 1.50
