FRAME COVER (MODEL K4)

VL1500B INTRUDER 2000 (Y) USA (E03)

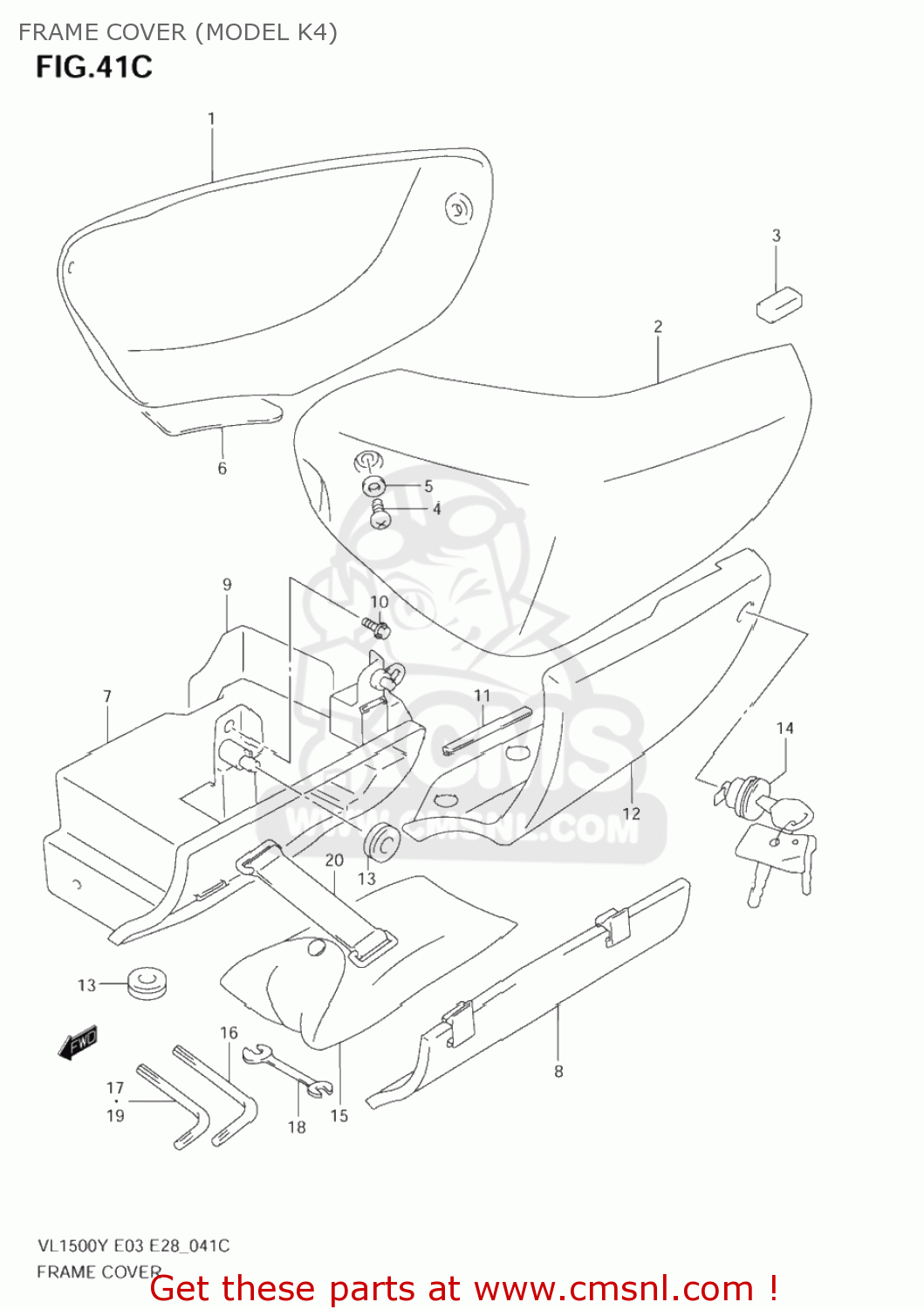

Frame cover (model k4) diagram VL1500B INTRUDER 2000 (Y) USA (E03)

FRAME COVER (MODEL K4) VL1500B INTRUDER 2000 (Y) USA (E03)

FRAME COVER (MODEL K4) VL1500B INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711010F00YAY
ref: 1-1

COVER,FRAME,R(BLACK)

€ 343.50

1-2

4711010F00YV2
ref: 1-2

COVER,FRAME,R(SILVER)

€ 343.50

1-3

4711010F00YAR
ref: 1-3

COVER,FRAME,R(BLUE)

€ 343.50

2-1

4721010F00YAY
ref: 2-1

COVER,FRAME,L(BLACK)

€ 343.50

2-2

4721010F00YV2
ref: 2-2

COVER,FRAME,L(SILVER)

€ 343.50

2-3

4721010F00YAR
ref: 2-3

COVER,FRAME,L(BLUE)

€ 343.50

3

4711745000
ref: 3

CUSHION,FRAME COVER

€ 1.50

4

0913906030
ref: 4

SCREW(6X16)

€ 3.50

5

0916006094
ref: 5

WASHER(6.5X15X1.0)

€ 1.50

6

4716610F00
ref: 6

SHIELD,FRAME COVER,R

€ 21.50

7

4743110F00
ref: 7

BODY,TOOL HOLDER

€ 73.00

8

4743210F00
ref: 8

CAP,TOOL HOLDER

€ 17.50

9

4743610F00
ref: 9

SHIELD,TOOL HOLDER BODY

€ 46.50

10

0911306001
ref: 10

BOLT(6X16)

€ 3.00

11

4721210F00
ref: 11

MOLDING,FRAME COVER,L

€ 3.50

12

4744010F00
ref: 12

COVER,TOOL HOLDER

€ 305.50

13

0932008047
ref: 13

CUSHION

€ 4.00

14

9570007860
ref: 14

LOCK SET,COVER

€ 76.00

15

0980021016
ref: 15

TOOL ASSY

€ 53.00

16

0981600139
ref: 16

HEXAGON SPANNER,12

€ 5.00

17

0981600103
ref: 17

SPANNER,HEXAGON(4)

€ 3.00

18

0981300027
ref: 18

OPEN SPANNER(8X10)

€ 3.00

19

0981600059
ref: 19

HEXAGON SPANNER,5

€ 5.50

20

0946200067
ref: 20

BAND

€ 4.50
