OIL PUMP/FUEL PUMP
VL1500B INTRUDER 2000 (Y) USA (E03)

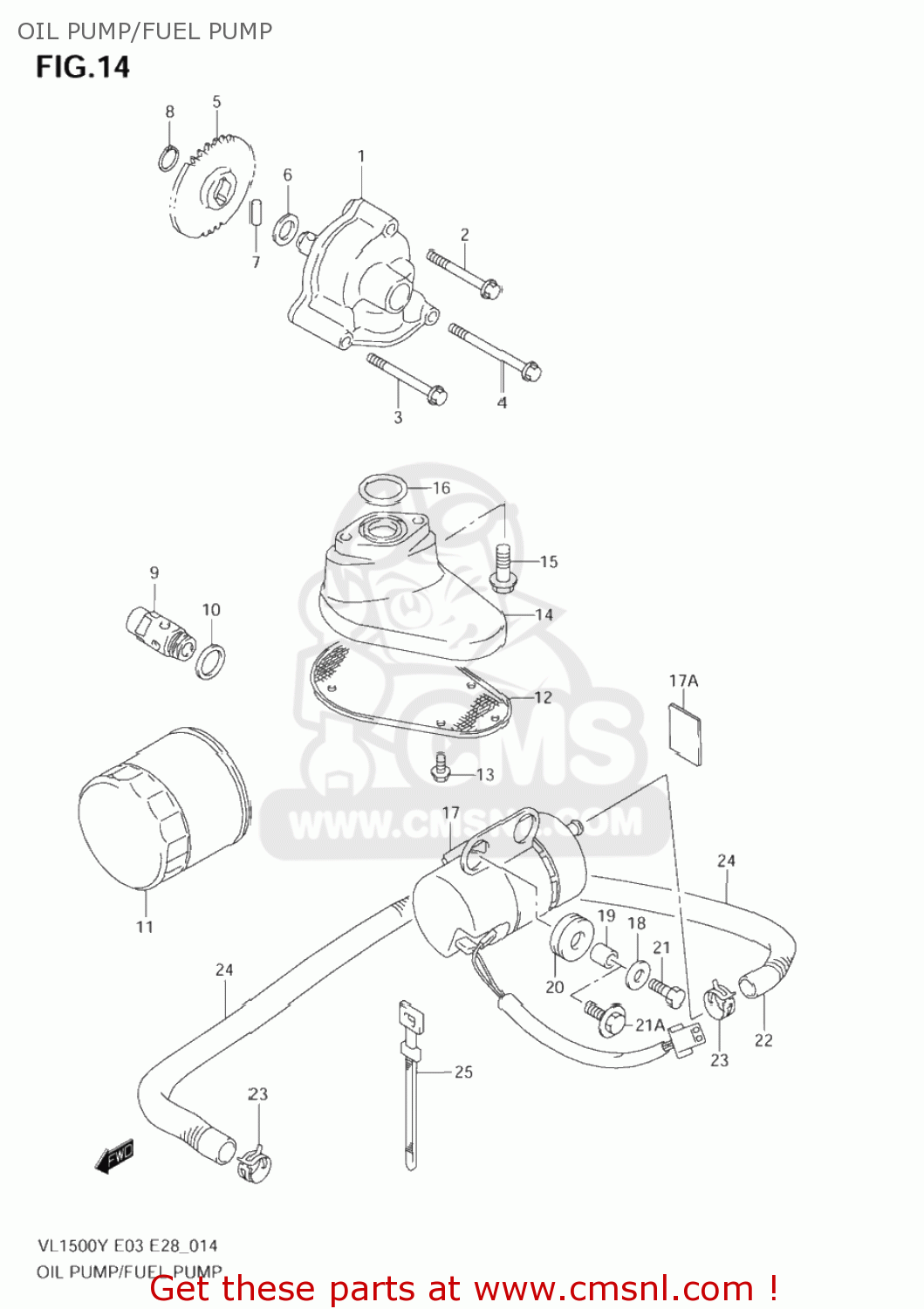

Oil pump/fuel pump diagram VL1500B INTRUDER 2000 (Y) USA (E03)
OIL PUMP/FUEL PUMP VL1500B INTRUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640038B10
ref: 1
PUMP ASSY,ENGINE OIL
€ 242.50
2
0154706453
ref: 2
01547-0645B
BOLT
€ 3.00
3
0154706553
ref: 3
01547-0655B
BOLT
€ 3.00
4
0154706653
ref: 4
01547-0665B
BOLT
€ 2.00
5
1633138B01
ref: 5
GEAR,OIL PUMP DRIVEN
€ 61.50
6
0918112158
ref: 6
SHIM(12X20X0.5)
€ 2.00
7
0926105006
ref: 7
PIN(5X18)
€ 1.50
8
0833131126
ref: 8
08331-3112A
CIRCLIP,12 MM
€ 2.00
9
1644017C20
ref: 9
VALVE ASSY,OIL RELIEF
€ 39.00
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
€ 2.00
11-1
1651034E00
ref: 11-1
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
11-2
1651003G00
ref: 11-2
16510-07J00
FILTER ASSY,EN
€ 12.50
11-3
1651022H00
ref: 11-3
FILTER ASSY,EN
€ 33.50
12
1652038B10
ref: 12
STRAINER,ENGINE OIL
€ 21.00
13
0155005103
ref: 13
01550-0510A
BOLT
€ 2.50
14
1652538B10
ref: 14
HOLDER,OIL STR
€ 24.00
15
0155006253
ref: 15
01550-0625A
BOLT
€ 2.50
16
0928022008
ref: 16
O RING(D:3.1,ID:22.7)
€ 2.50
17
1510010F00
ref: 17
PUMP ASSY,FUEL
€ 270.50
17A
6137408010
ref: 17A
CUSHION,CHAIN CASE
€ 4.00
18
0916006077
ref: 18
WASHER(6.5X20X1.2)
€ 2.00
19
0918006263
ref: 19
SPACER(6.5X9X9)
€ 2.00
20
0932009009
ref: 20
CUSHION
€ 5.00
21
0150006207
ref: 21
BOLT
€ 2.00
21A
0911606011
ref: 21A
09116-06115
BOLT 6X20
€ 2.00
22
1580110F00
ref: 22
HOSE,FUEL PUMP & CARB
€ 22.50
23
0940111407
ref: 23
09401-11415
CLIP
€ 2.50
24
0944014047
ref: 24
SPRING
€ 13.50
25
0940718402
ref: 25
CLAMP(L:165)
€ 2.50
