REAR CALIPER (MODEL W)

VL1500B INTRUDER 2000 (Y) USA (E03)

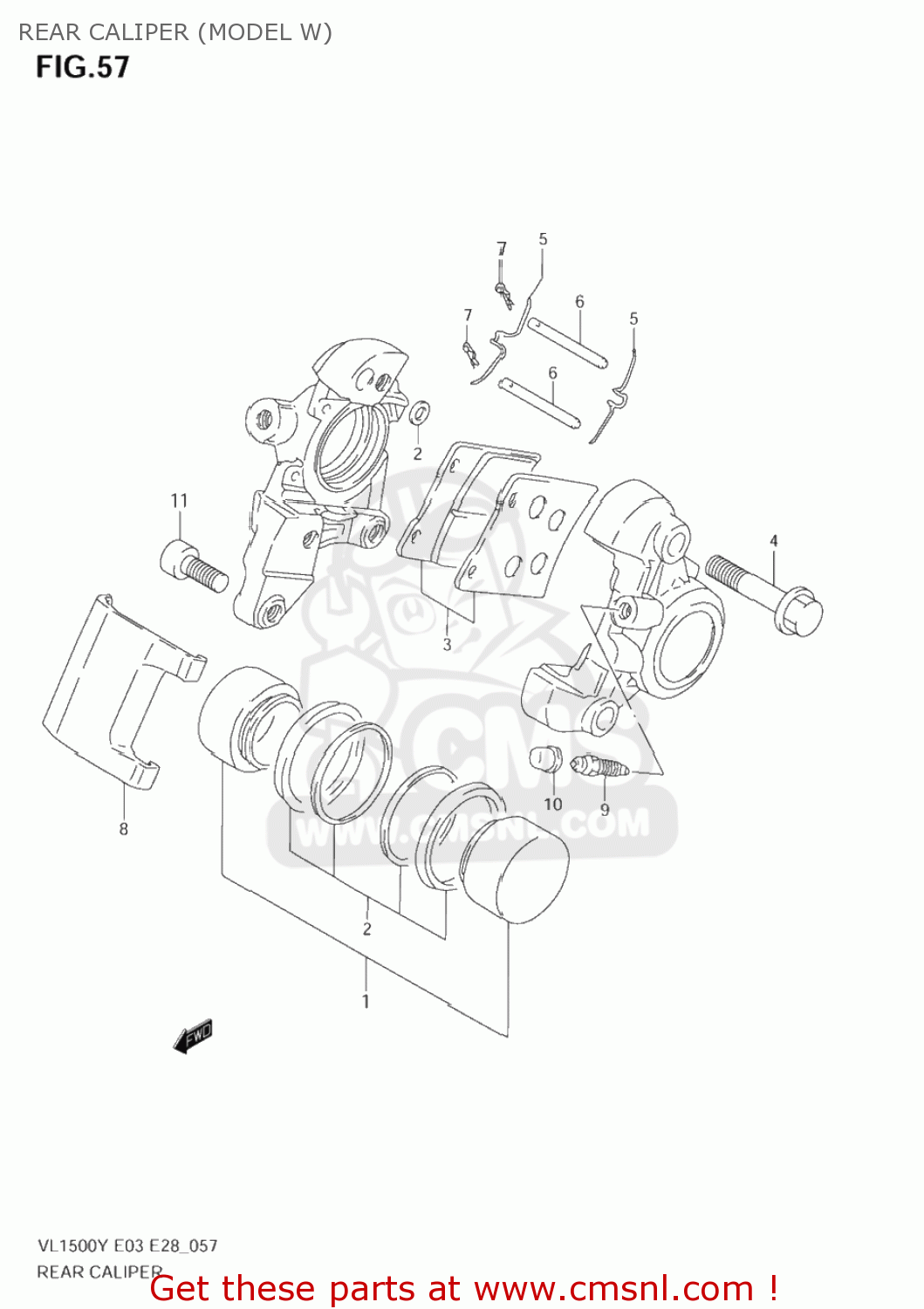

Rear caliper (model w) diagram VL1500B INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

6910038B20
ref:
69100-38B50-999

CALIPER ASSEMBLY,REAR

€ 707.00

6910038810
ref: 1
69100-38851

PISTON SET

€ 176.00

6910038830
ref: 2
69100-38831

SEAL SET,PISTON

€ 38.50

6910038860
ref: 3
69100-38870

PAD SET (NAS)

€ 57.50

5914516700
ref: 4

BOLT,HOUSING

€ 8.00

5914316700
ref: 5

SPRING

€ 7.50

6914145000
ref: 6

PIN,PAD

€ 6.50

6914245000
ref: 7

CLIP,PAD PIN

€ 4.50

5915124A00
ref: 8

COVER

€ 18.00

5912118410
ref: 9

BLEEDER

€ 8.00

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

0713010203
ref: 11
07130-1020B

BOLT

€ 3.50
