REAR FENDER (MODEL W/X)

VL1500B INTRUDER 2000 (Y) USA (E03)

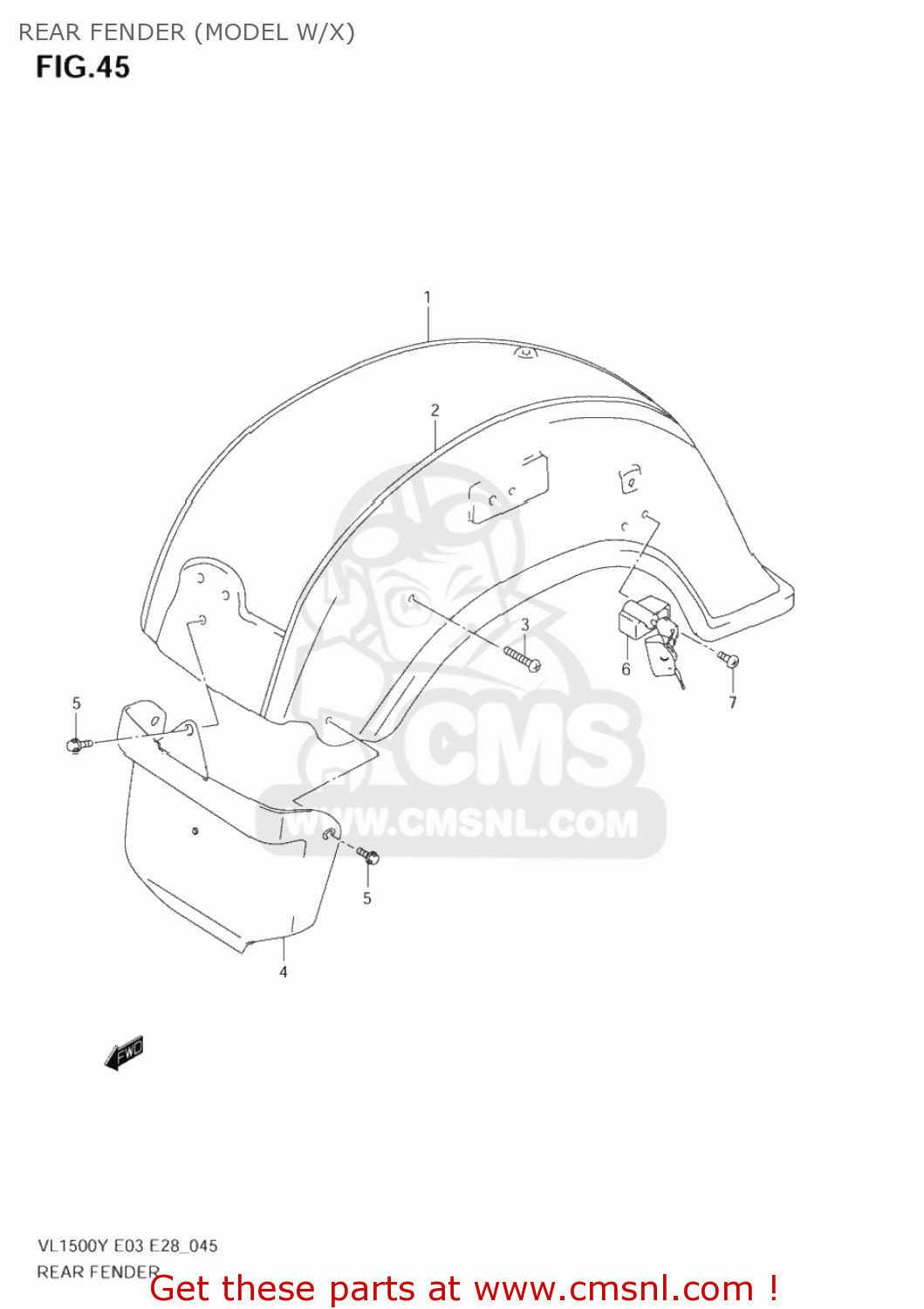

Rear fender (model w/x) diagram VL1500B INTRUDER 2000 (Y) USA (E03)

REAR FENDER (MODEL W/X) VL1500B INTRUDER 2000 (Y) USA (E03)

REAR FENDER (MODEL W/X) VL1500B INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6311010F10E6M
ref: 1-1
63110-10F12-E6M

FENDER,REAR

€ 594.50

1-2

6311010F10K7D
ref: 1-2
63110-10F12-K7D

FENDER,REAR

€ 594.50

1-3

6311010F10K7E
ref: 1-3
63110-10F12-K7E

FENDER,REAR

€ 594.50

1-4

6311010F12E6M
ref: 1-4

FENDER,RR

€ 594.50

1-5

6311010F12K7E
ref: 1-5

FENDER,RR

€ 594.50

1-6

6311010F12M4P
ref: 1-6

FENDER,RR

€ 0.00

1-7

6311010F12M4R
ref: 1-7

FENDER,RR

€ 845.50

2-1

6817010F00K7W
ref: 2-1

TAPE SET,RR FENDER

€ 77.00

2-2

6817010F00K7Y
ref: 2-2

TAPE SET,REAR FENDER

€ 76.50

2-3

6817010F00K8A
ref: 2-3

TAPE SET,RR FENDER

€ 75.00

2-4

6817010F00M5M
ref: 2-4

TAPE SET,REAR FENDER

€ 86.00

2-5

6817010F00M5N
ref: 2-5

TAPE SET,RR FENDER

€ 98.00

3

6316110F00
ref: 3
09106-08156

BOLT,REAR FENDER

€ 8.50

4-1

6341110F00
ref: 4-1
63411-10F01

MUD GUARD,REAR FENDER,FRONT

€ 24.00

4-2

6341110F01
ref: 4-2

MUDGUARD,RR FENDER FR

€ 24.00

5

0911106066
ref: 5

BOLT(6X16)

€ 2.50

6

9570010840
ref: 6
95700-10841

LOCK SET,HELMET

€ 83.00

7

0913906089
ref: 7

SCREW(6X14)

€ 2.50
