Buy Suzuki VLR Parts Online


AIR CLEANER

VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

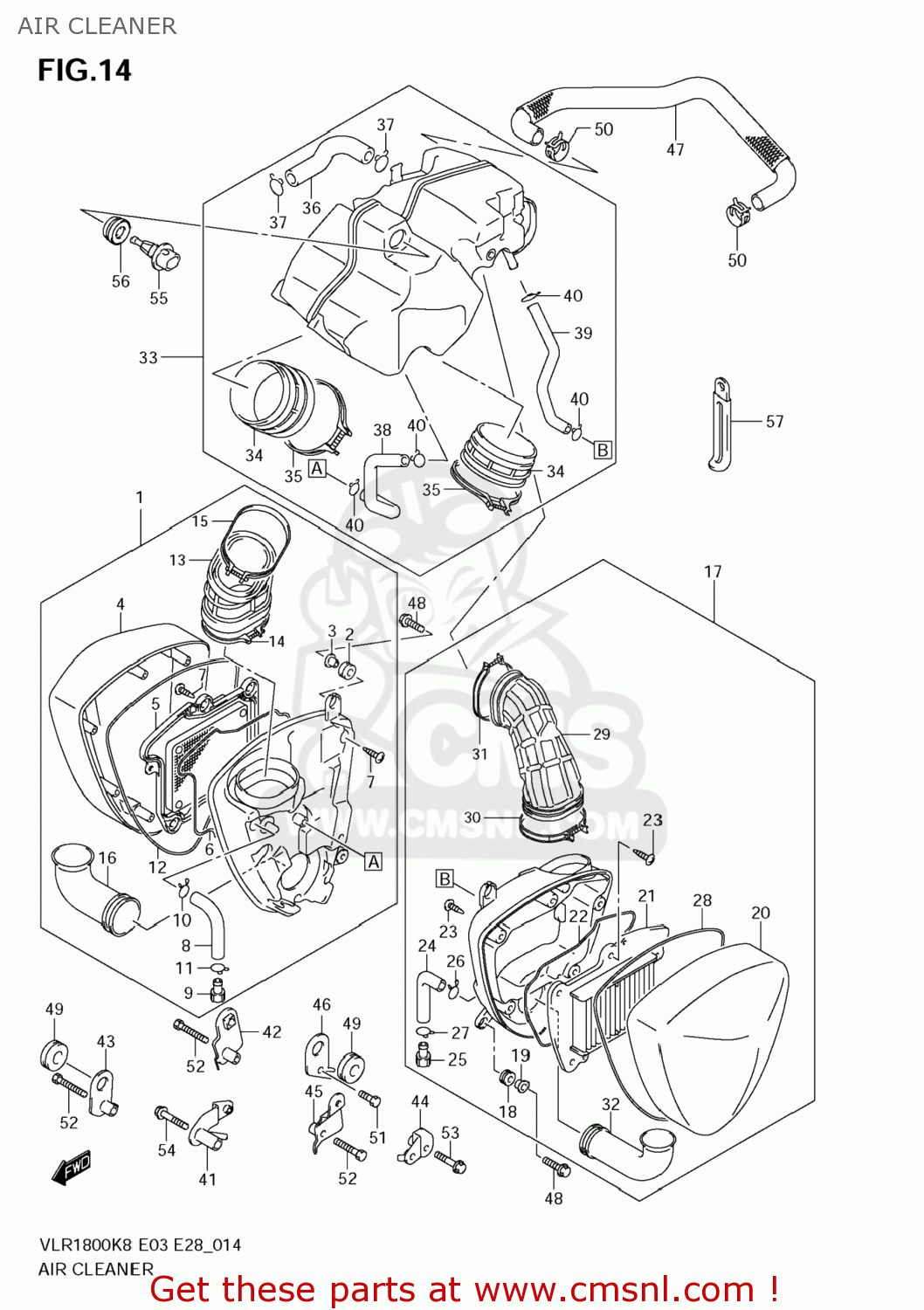

Air cleaner diagram VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

AIR CLEANER VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)
AIR CLEANER VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)
AIR CLEANER VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1370122H00
ref: 1
CLEANER,AIR,R
€ 467.00
2
0932009016
ref: 2
CUSHION
0932009016
€ 2.50
3
1381229C50
ref: 3
COLLAR,CLEANER CASE
1381229C50
€ 1.50
4
1374122H00
ref: 4
CAP,AIR CLEANER
€ 179.50
5
1378022H00
ref: 5
FILTER ASSY,AIR CLEANER
1378022H00
€ 30.50
6
1378722H00
ref: 6
GASKET,FILTER (NAS)
1378722H00
€ 7.00
7
1383122H00
ref: 7
SCREW
€ 2.50
8
1387122H00
ref: 8
TUBE,DRAIN
€ 5.50
9
1387700190
ref: 9
PLUG
1387700190
€ 3.50
10
0940114301
ref: 10
CLIP
0940114301
€ 2.00
11
0940114101
ref: 11
CLIP
0940114101
€ 2.00
12
1375622H00
ref: 12
GASKET,CASE (NAS)
€ 8.00
13
1373948G00
ref: 13
TUBE,JOINT,R
1373948G00
€ 51.00
14
1382648G00
ref: 14
CLAMP
1382648G00
€ 13.50
15
1382722H00
ref: 15
CLAMP
1382722H00
€ 15.00
16
1389122H00
ref: 16
TUBE,INLET
€ 27.50
17
1370222H00
ref: 17
CLEANER,AIR,L
€ 467.00
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19
1381229C50
ref: 19
COLLAR,CLEANER CASE
1381229C50
€ 1.50
20
1374122H00
ref: 20
CAP,AIR CLEANER
€ 179.50
21
1378022H00
ref: 21
FILTER ASSY,AIR CLEANER
1378022H00
€ 30.50
22
1378722H00
ref: 22
GASKET,FILTER (NAS)
1378722H00
€ 7.00
23
1383122H00
ref: 23
SCREW
€ 2.50
24
1387122H00
ref: 24
TUBE,DRAIN
€ 5.50
25
1387700190
ref: 25
PLUG
1387700190
€ 3.50
26
0940114301
ref: 26
CLIP
0940114301
€ 2.00
27
0940114101
ref: 27
CLIP
0940114101
€ 2.00
28
1375622H00
ref: 28
GASKET,CASE (NAS)
€ 8.00
29
1373948G10
ref: 29
TUBE,JOINT,L
€ 54.50
30
1382648G00
ref: 30
CLAMP
1382648G00
€ 13.50
31
1382722H00
ref: 31
CLAMP
1382722H00
€ 15.00
32
1389122H00
ref: 32
TUBE,INLET
€ 27.50
33-1
1371022H10
ref: 33-1
CHAMBER,AIR CLEANER
€ 150.50
33-2
1371022H00
ref: 33-2
CHAMBER,AIR CLEANER
€ 157.50
34
1388122H00
ref: 34
TUBE,OUTLET
€ 18.50
35
1382622H00
ref: 35
CLAMP
€ 5.50
36
1386548G00
ref: 36
HOSE
€ 15.00
37
0940115101
ref: 37
CLIP
0940115101
€ 2.00
38
1387148G00
ref: 38
TUBE,DRAIN
€ 12.50
39
1387148G10
ref: 39
TUBE,DRAIN
€ 12.50
40
0940113409
ref: 40
CLIP
0940113409
€ 2.50
41
1376022H00
ref: 41
BRACKET,AIR CLEANER,R
1376022H00
€ 12.50
42
1376048G00
ref: 42
BRACKET,AIR CLEANER NO.1
1376048G00
€ 22.50
43
1376048G20
ref: 43
BRACKET,AIR CLEANER NO.3
1376048G20
€ 10.50
44
1377022H00
ref: 44
BRACKET,AIR CLEANER,L
1377022H00
€ 18.50
45
1377048G00
ref: 45
BRACKET,AIR CLEANER NO.4
1377048G00
€ 18.50
46
1377048G10
ref: 46
BRACKET,AIR CLEANER NO.5
1377048G10
€ 3.50
47
1385022H00
ref: 47
TUBE,BREATHER
€ 67.00
48
0913906155
ref: 48
BOLT(6X20)
0913906155
€ 2.50
49
0932008028
ref: 49
CUSHION
0932008028
€ 2.50
50
0940120405
ref: 50
CLIP
0940120405
€ 3.00
51
015000612A
ref: 51
BOLT
015000612A
€ 2.00
52
015000625A
ref: 52
BOLT
015000625A
€ 2.50
53
015500630A
ref: 53
BOLT
015500630A
€ 2.50
54
015500640A
ref: 54
BOLT
015500640A
€ 2.50
55
1365052G00
ref: 55
SENSOR,INLET AIR TEMP
1365052G00
€ 59.50
56
1365577E00
ref: 56
GROMMET,AIR TEMP SENSOR
€ 2.00
57
0940406433
ref: 57
CLAMP(L:80)
0940406433
€ 3.00
