REAR SWINGING ARM

VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

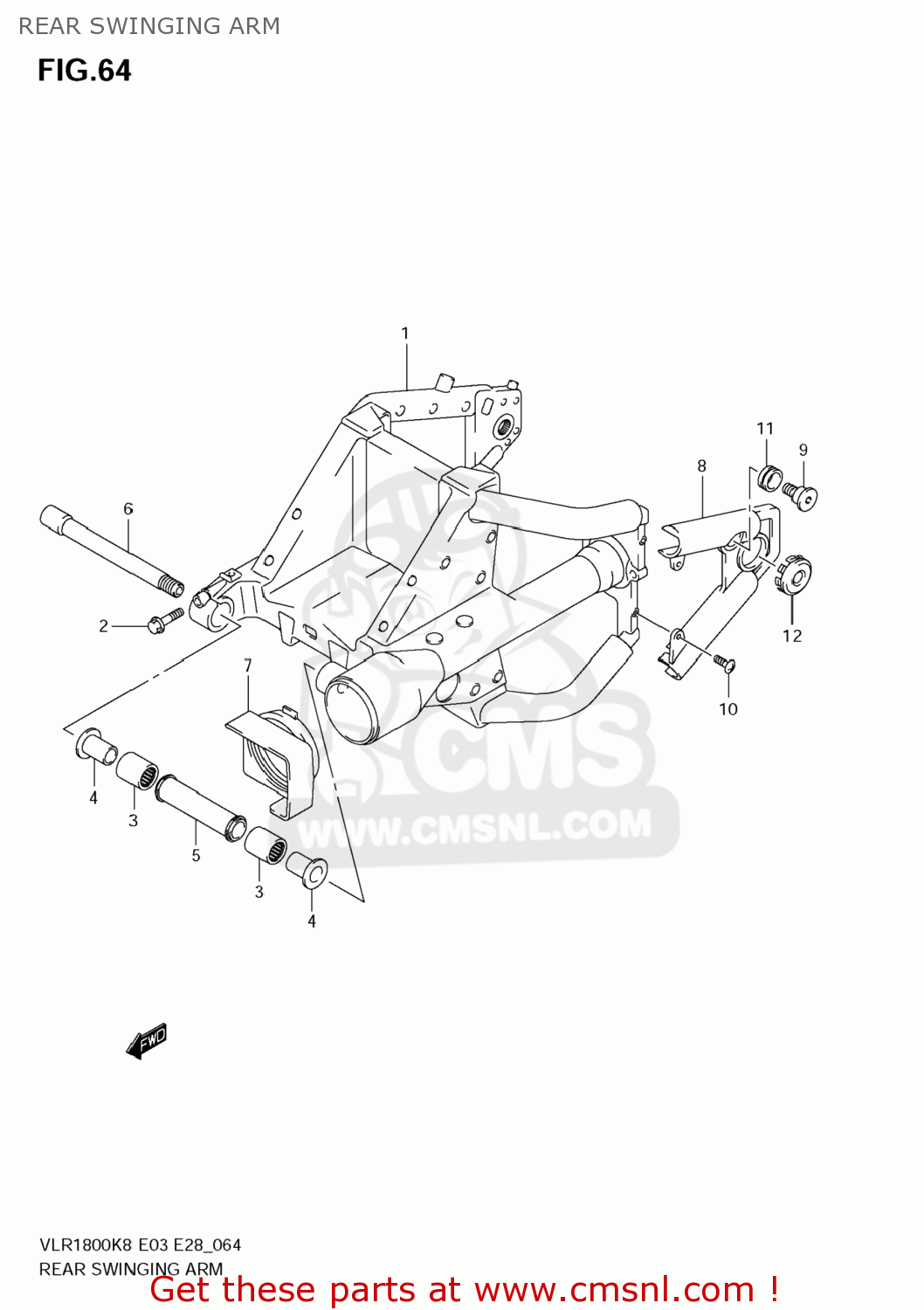

Rear swinging arm diagram VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

REAR SWINGING ARM VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

REAR SWINGING ARM VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

6110022H00019
ref: 1

SWINGINGARM,RR

€ 2,120.00

2

0910308071
ref: 2

BOLT(8X36)

€ 4.00

3

0926325059
ref: 3

BEARING(25X33X35)

€ 35.00

4

6125131E00
ref: 4

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

5

6128048G01
ref: 5

SPACER,RR SWGARM PIVOT CTR

€ 20.50

6

6121148G00
ref: 6

SHAFT,RR SWINGINGARM PIVOT

€ 59.50

7

6137248G00
ref: 7

BOOT,PROPELLER SHAFT

€ 14.50

8

6112622H00019
ref: 8

COVER,RR SWINGINGARM,L(BLACK)

€ 111.00

9

6112741F10
ref: 9

BOLT,RR SWGARM

€ 10.50

10

0913906140
ref: 10

SCREW(6X16)

€ 3.50

11

0932022003
ref: 11

CUSHION

€ 3.00

12

4189942F10
ref: 12

CAP,FRAME PIVOT

€ 8.50
