FRONT BRAKE HOSE

VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

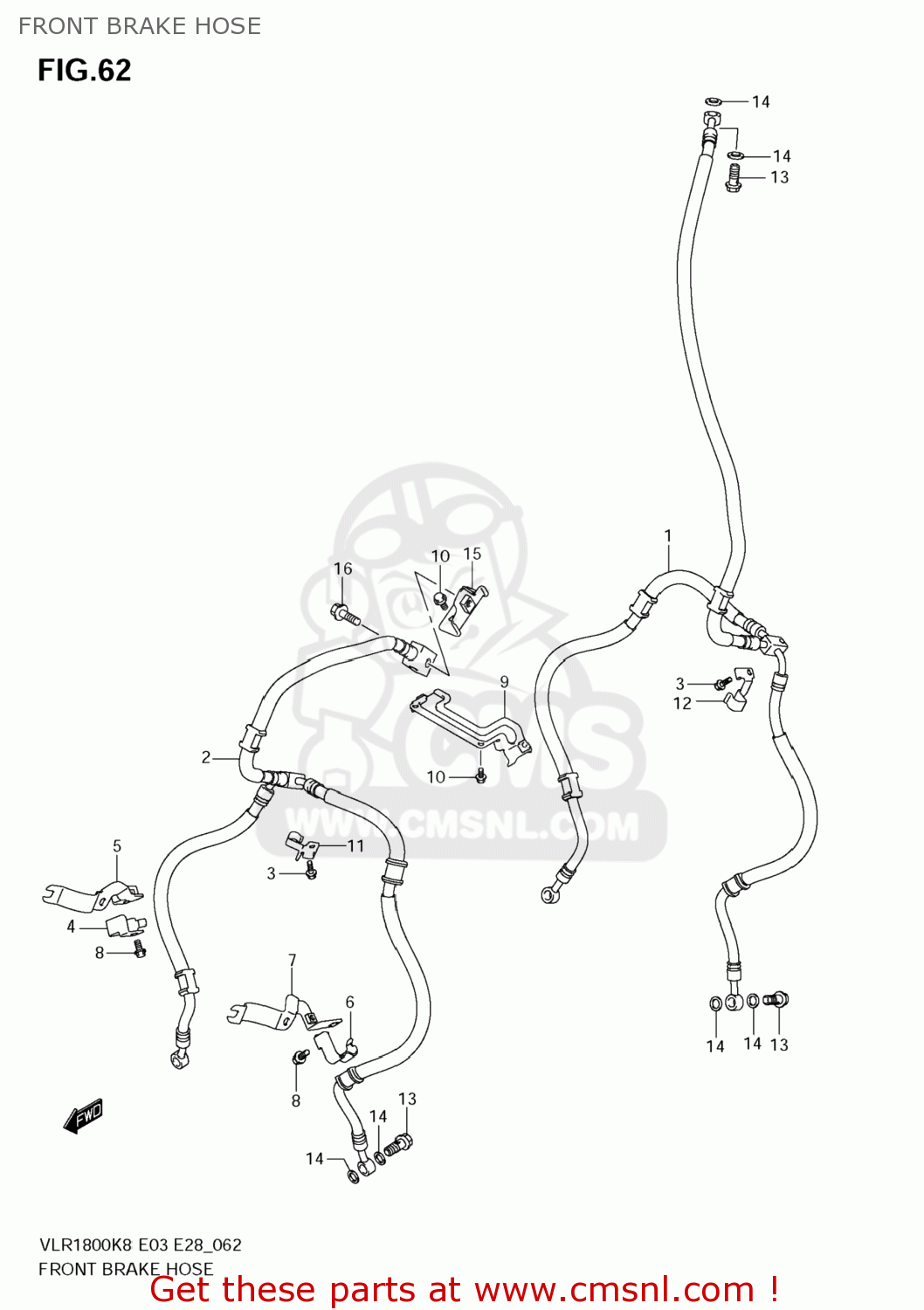

Front brake hose diagram VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

5948022H00
ref: 1

HOSE,FR BRAKE

€ 177.50

6948022H00
ref: 2

HOSE,RR BRAKE NO.2

€ 141.50

015470625A
ref: 3

BOLT

€ 2.50

5926122H00
ref: 4

CLAMP,FR BRAKE HOSE NO.1,R

€ 12.50

5946022H00
ref: 5

CLAMP,FR BRAKE HOSE,R

€ 12.50

5927122H00
ref: 6

CLAMP,FR BRAKE HOSE,L

€ 12.50

5947022H00
ref: 7

CLAMP,FR BRAKE HOSE,L

€ 12.50

015470610B
ref: 8

BOLT

€ 3.00

5926022H00
ref: 9

CLAMP,FR BRAKE HOSE

€ 15.00

015500612A
ref: 10

BOLT

€ 2.50

5926422H00
ref: 11

CLAMP,FR BRAKE HOSE NO.3

€ 12.50

6927522H00
ref: 12

CLAMP,RR BRAKE HOSE

€ 11.50

0936010062
ref: 13

BOLT UNION

€ 5.00

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

6927022H00
ref: 15

CLAMP,RR BRAKE HOSE

€ 8.50

015500825A
ref: 16

BOLT

€ 2.50
