SPEEDOMETER (VLR1800K8/TK8/K9)

VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

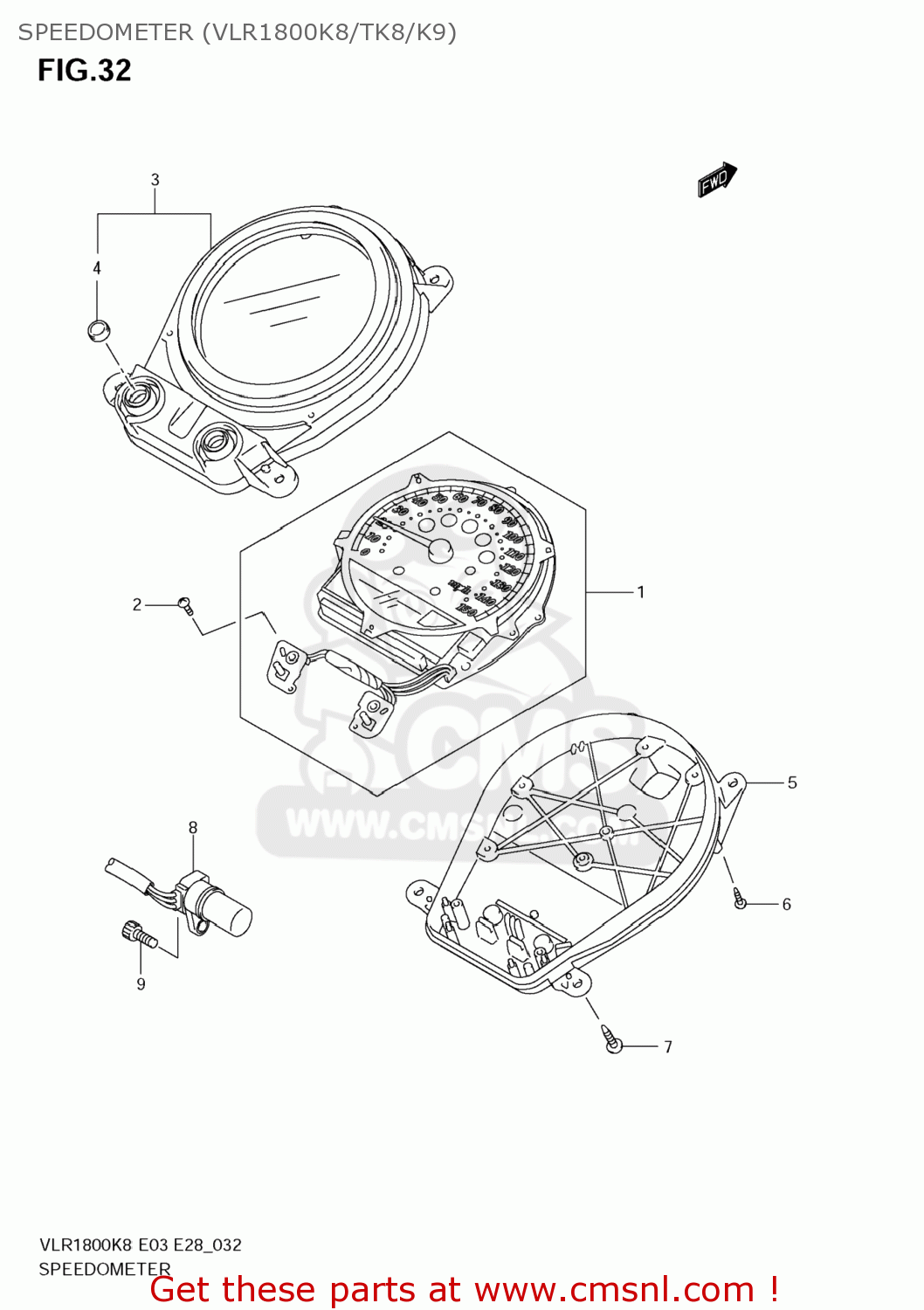

Speedometer (vlr1800k8/tk8/k9) diagram VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VLR1800K8/TK8/K9) VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

SPEEDOMETER (VLR1800K8/TK8/K9) VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

3412022H10
ref: 1-1

SPEEDOMETER

€ 713.50

1-2

3412022H00
ref: 1-2

SPEEDOMETER

€ 844.00

2

0913203016
ref: 2

SCREW(3X12)

€ 1.50

3

3415022H00
ref: 3

CASE,UPR

€ 189.50

4

3412422H00
ref: 4

SWITCH,RUBBER

€ 11.00

5

3411122H00
ref: 5

CASE,LWR

€ 73.00

6

0913203008
ref: 6

SCREW(3X16)

€ 1.50

7

035410516A
ref: 7

SCREW

€ 1.50

8

3499048G00
ref: 8

SENSOR,SPEED

€ 95.50

9

071300616A
ref: 9
07130-0616B

BOLT

€ 3.00
