SECOND AIR (E3

VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

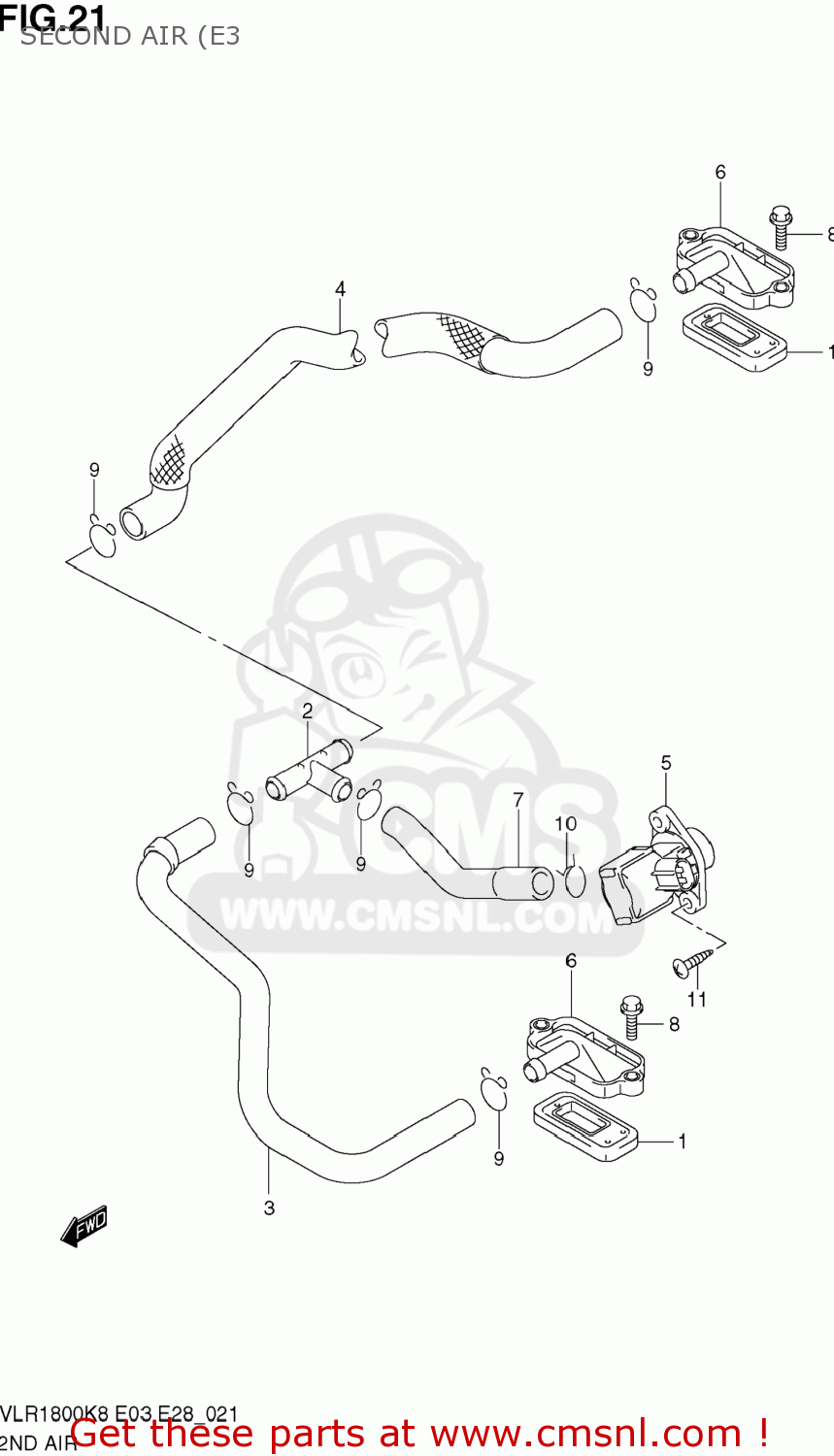

Second air (e3 diagram VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

SECOND AIR (E3 VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

SECOND AIR (E3 VLR1800T BOULEVARD C109R 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1845006G00
ref: 1

VALVE ASSY,2ND AIR REED

€ 22.50

2

1385518A03
ref: 2

JOINT

€ 4.00

3

1846122H00
ref: 3

HOSE,2ND AIR VALVE FR

€ 20.50

4

1847122H00
ref: 4

HOSE,2ND AIR VALVE RR

€ 27.50

5

1851027G00
ref: 5

VALVE ASSY,AIR CUT

€ 61.00

6

1853106G01
ref: 6

COVER,2ND AIR

€ 9.50

7

1871122H00
ref: 7

HOSE,2ND AIR VALVE

€ 10.00

8

0910306201
ref: 8

BOLT(6X20)

€ 2.00

9

0940115101
ref: 9

CLIP

€ 2.00

10

0940118304
ref: 10
09401-18304-A05

CLAMP

€ 2.00

11

035410520A
ref: 11

SCREW

€ 2.50
